Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your tradesmen. Here we give you complete expert guidance for this dual fuel towel rail — supplying all parts required — so you can ensure a smooth and successful installation when your tradesman arrives - note for dual fuel you may need both an electrician and plumber which is why you are best place to know what you need yourself in the case of dual fuel.
heat output
- Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size heated towel rail.
- As this is a dual fuel model you would work this out twice - once for central heating and then again for electric to ensure the respective outputs this rail gives match both requirements - use the central heating as the lead source and just closest match the electric output.
a complete dual fuel towel rail : with all components included
- This is a complete dual fuel towel rail with everything you need to simply install it and set this up as dual fuel - no fuss, no mess.
- These are state of the art dual fuel towel rails provided with the very best specialist dual fuel items for a high end looking finish - as often dual fuel installations can look cumbersome in comparison to this.
- You will receive all items as seen in the main images which includes:
- SIMPLE DW heated towel rail
- TWINS 50mm straight valve
- KTX 4 heating element
- TS1 heating element probe
what is a dual fuel towel rail?
- Dual fuel means you can run the same towel rail in two ways — as electric via the use of a heating element in the summer (when you may only want to dry your towels or clothes) and as central heating in the winter (when the full system is on).
- The water inside the towel rail comes from your central heating system as normal — when the main system is off this water will sit idle, and in the summer the element installed in the towel rail will warm the water located inside just this towel rail. You can keep both of the valves open.
- If you want to learn more about dual fuel, read our dedicated dual fuel towel rail guide here.

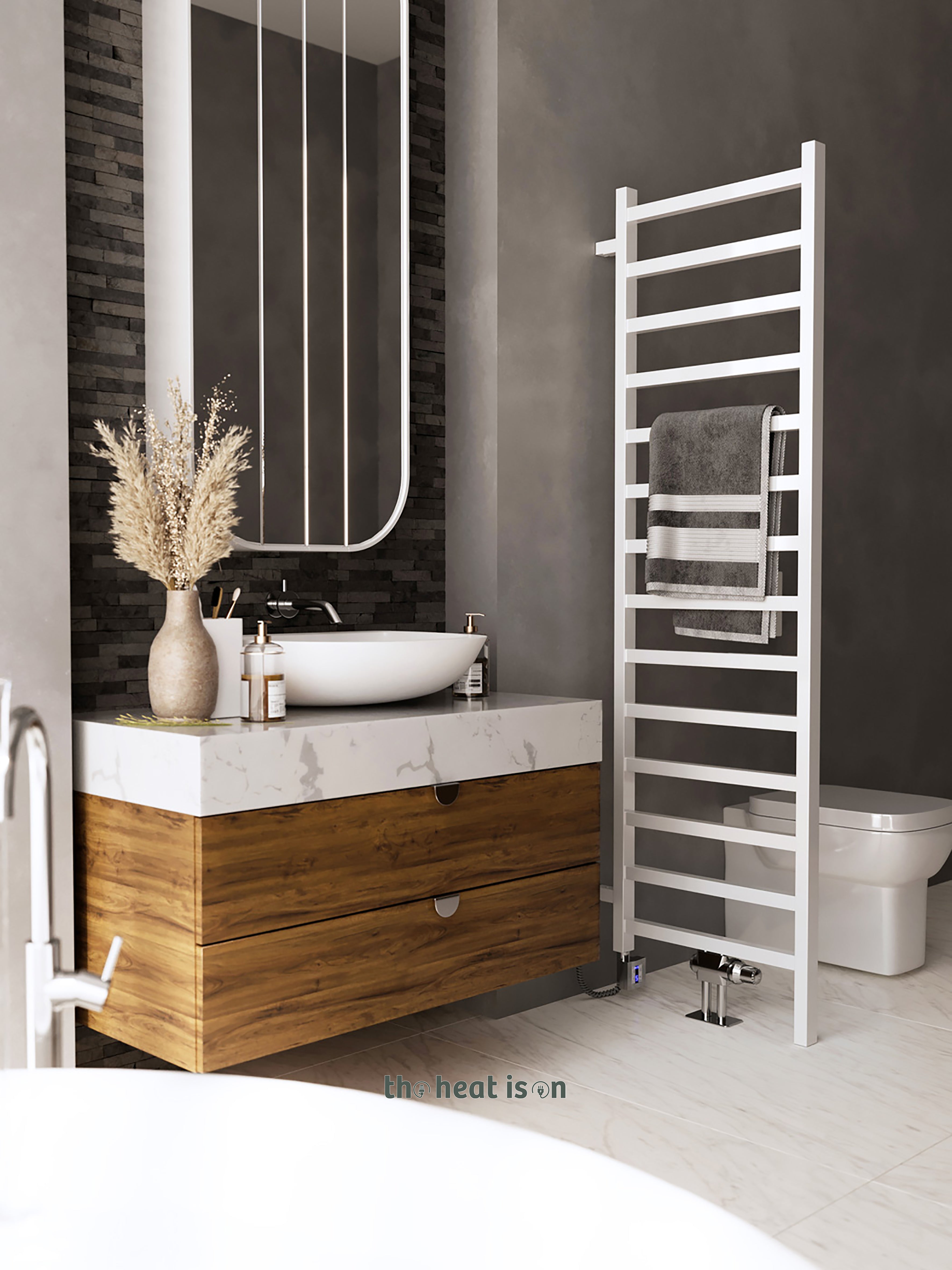

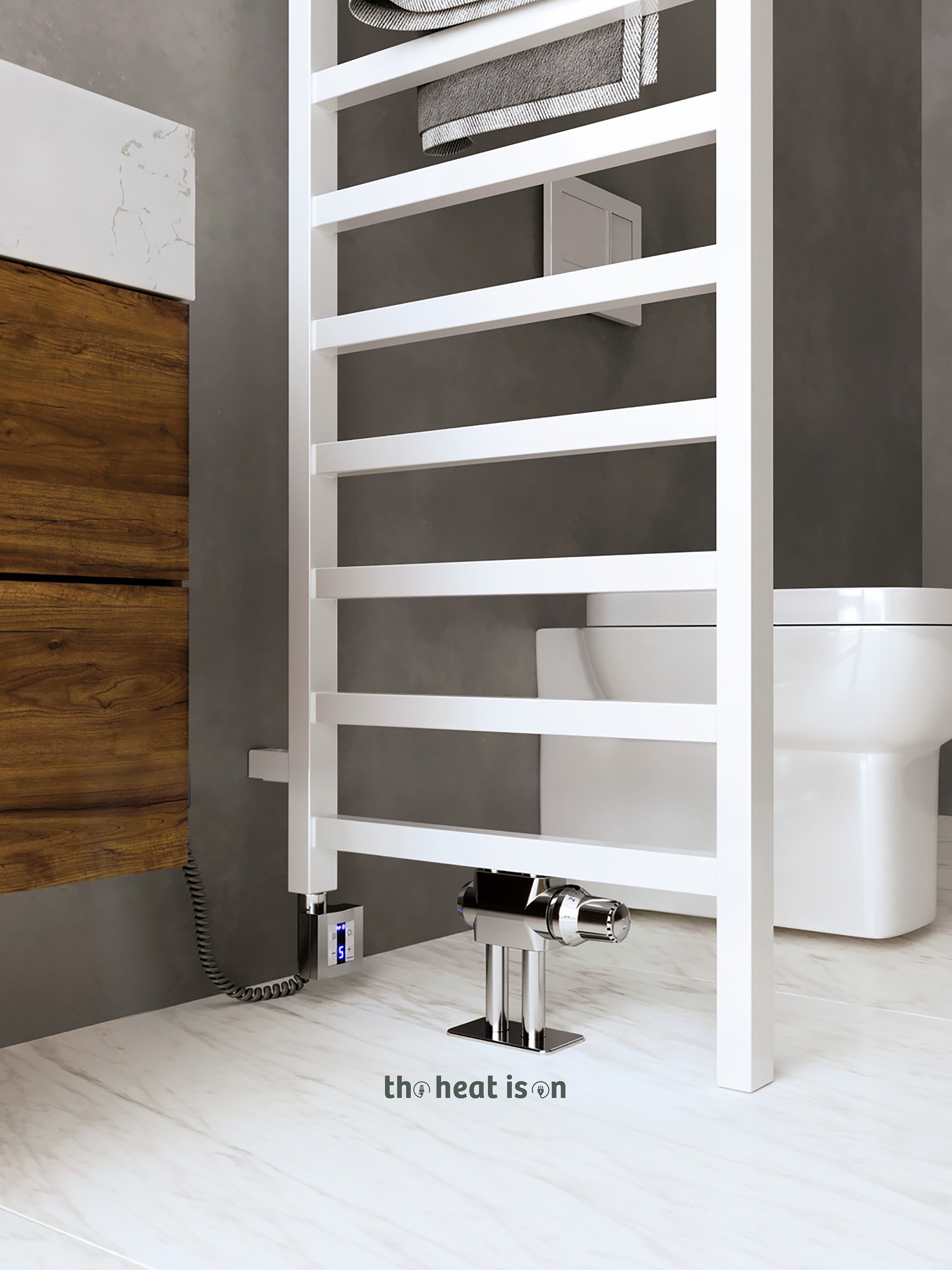

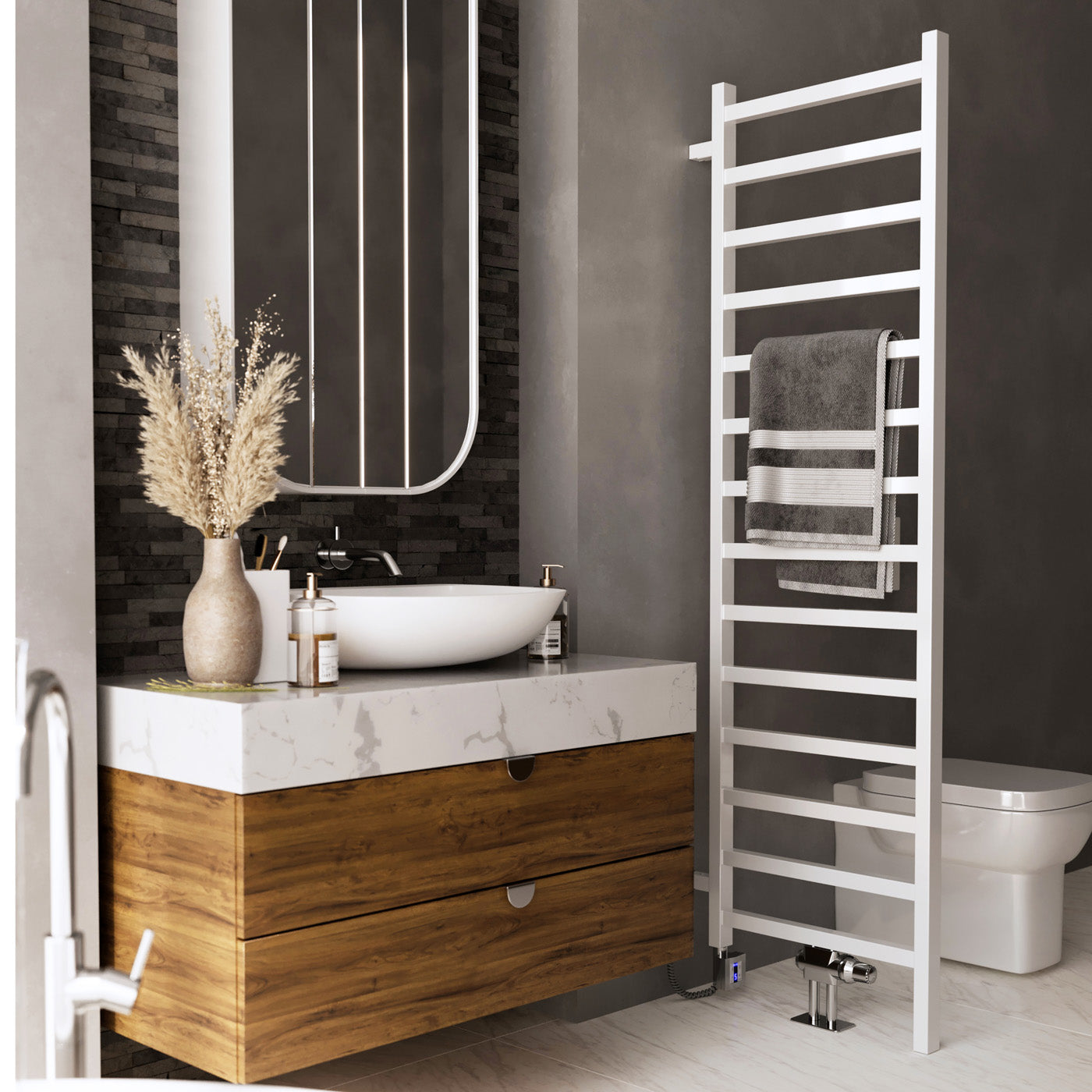

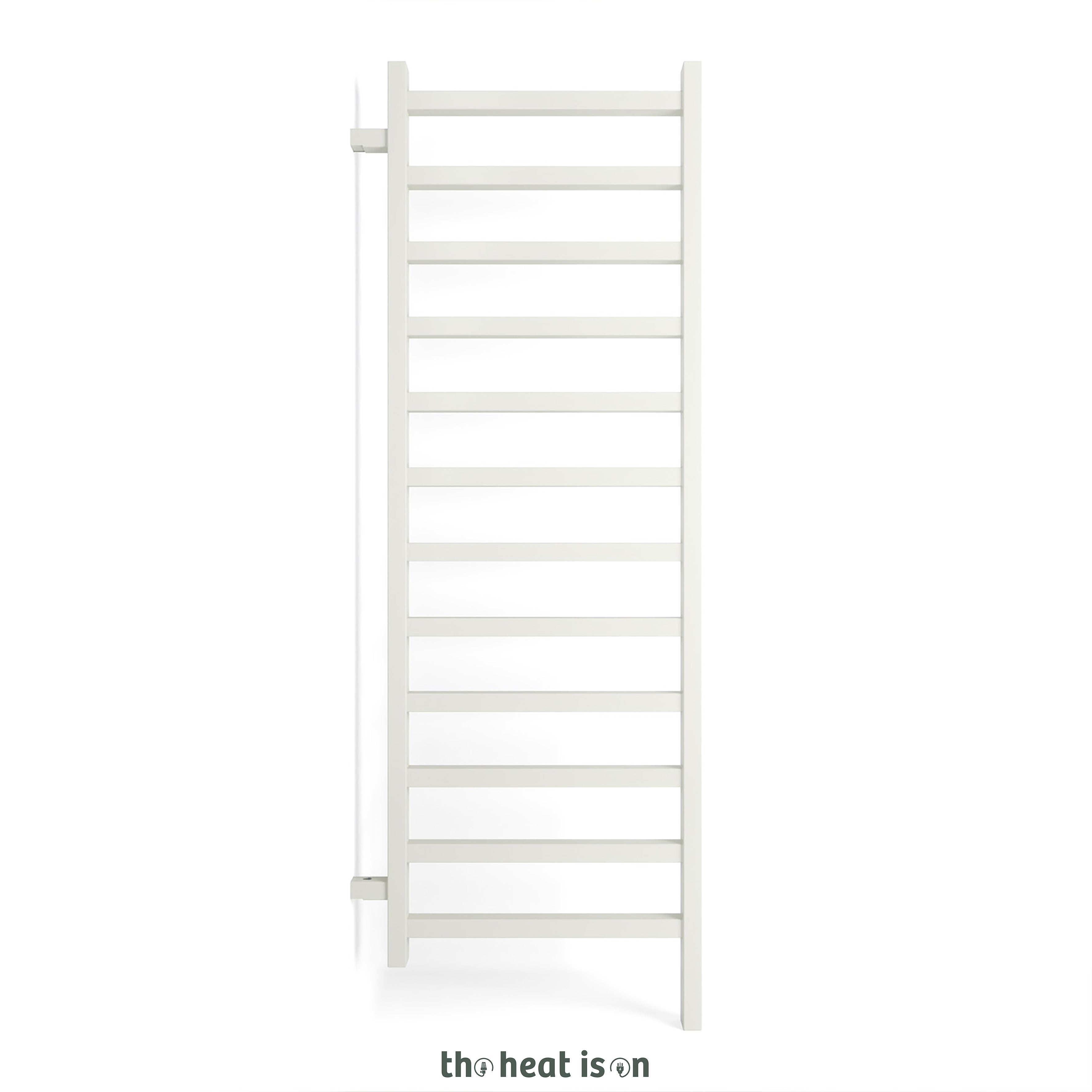

the heated towel rail
- SIMPLE DW is a heated towel rail / bathroom radiator in the form of a room divider, allowing easy heat circulation in a room and naturally separating areas of different function.
- Reimagine your bathroom layout — these towel rails are designed to function as freestanding room dividers, ideal for homeowners undertaking a full bathroom redesign.
- Functional warmth accessible from both sides — positioned between the bath and sink, these rails provide easy towel access from either side while delivering efficient heating.
- By combining practical functionality with striking design, they transform the towel rail from a standard fixture into a central feature of your redesigned bathroom.
- Made from low carbon mild steel.

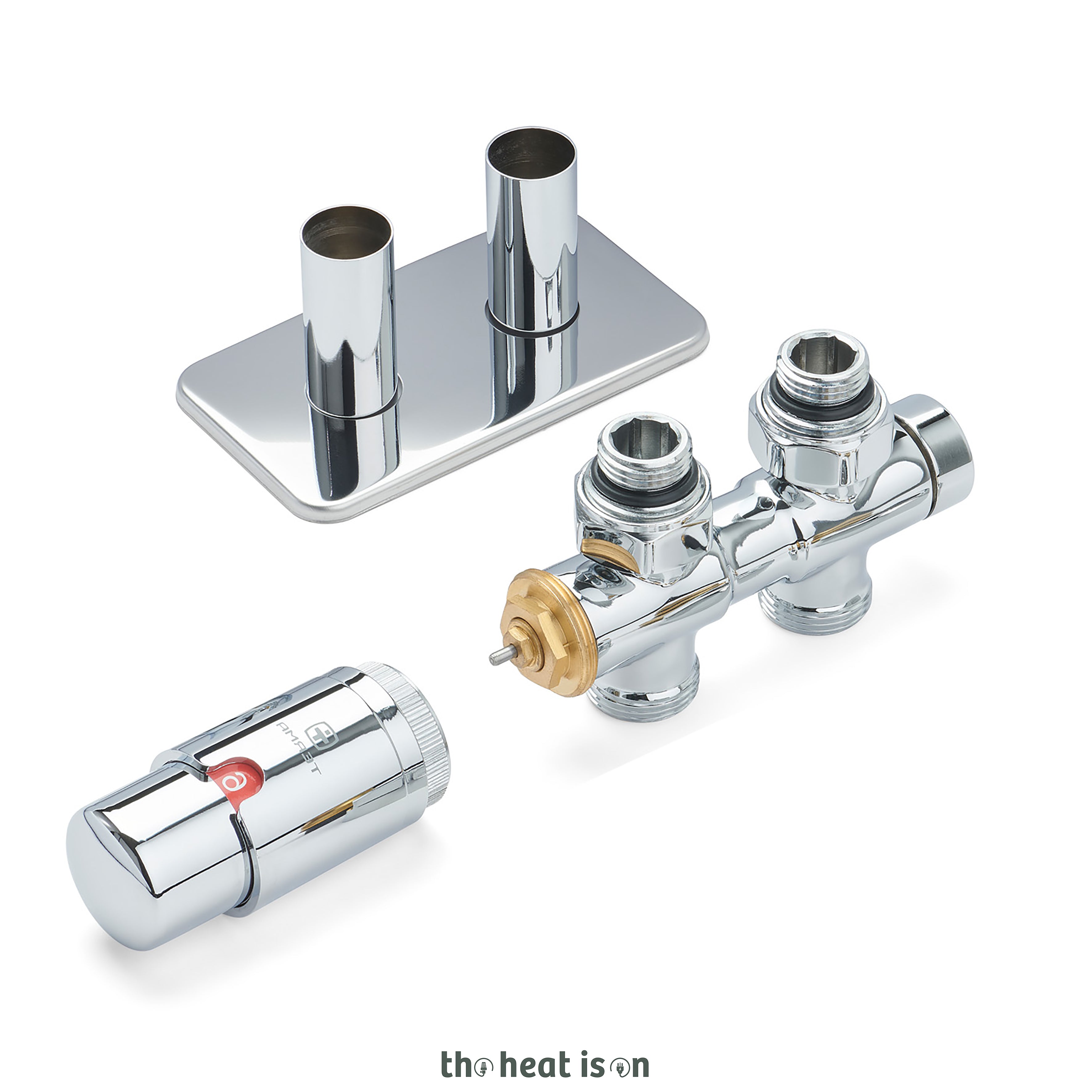

the specialist dual fuel valve
- The TWINS valves are supplied complete with pipe masking set and comprise:
- 50mm integrated thermostatic valve body and head
- 2x 50mm length pipes
- 1x wall masking cover with 2 holes
- Chrome in colour.
- Made from coloured plastic, brass, and steel for durability and strength.
- Straight orientation.
- No left or right needed in this instance as it can be installed either way.

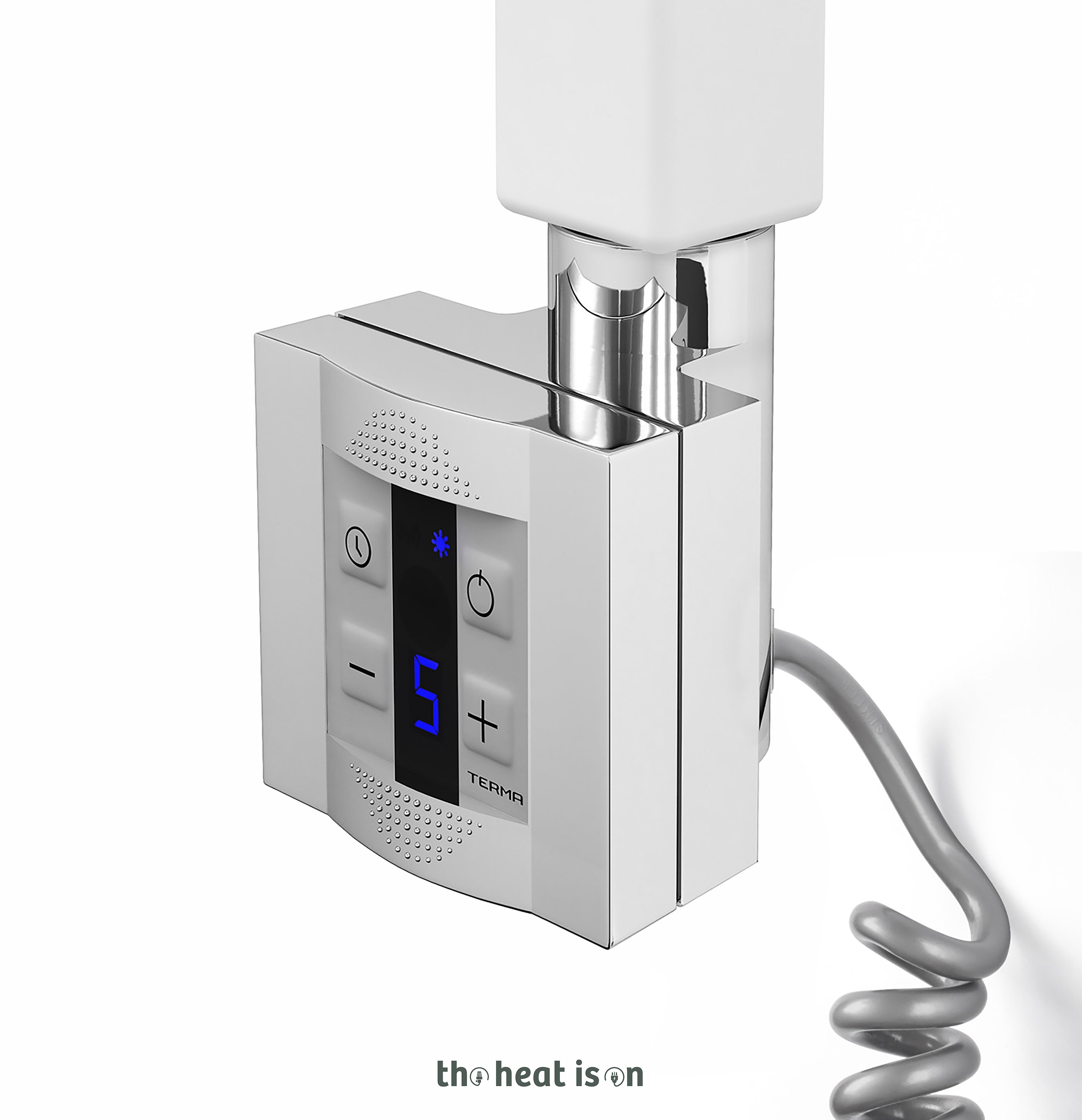

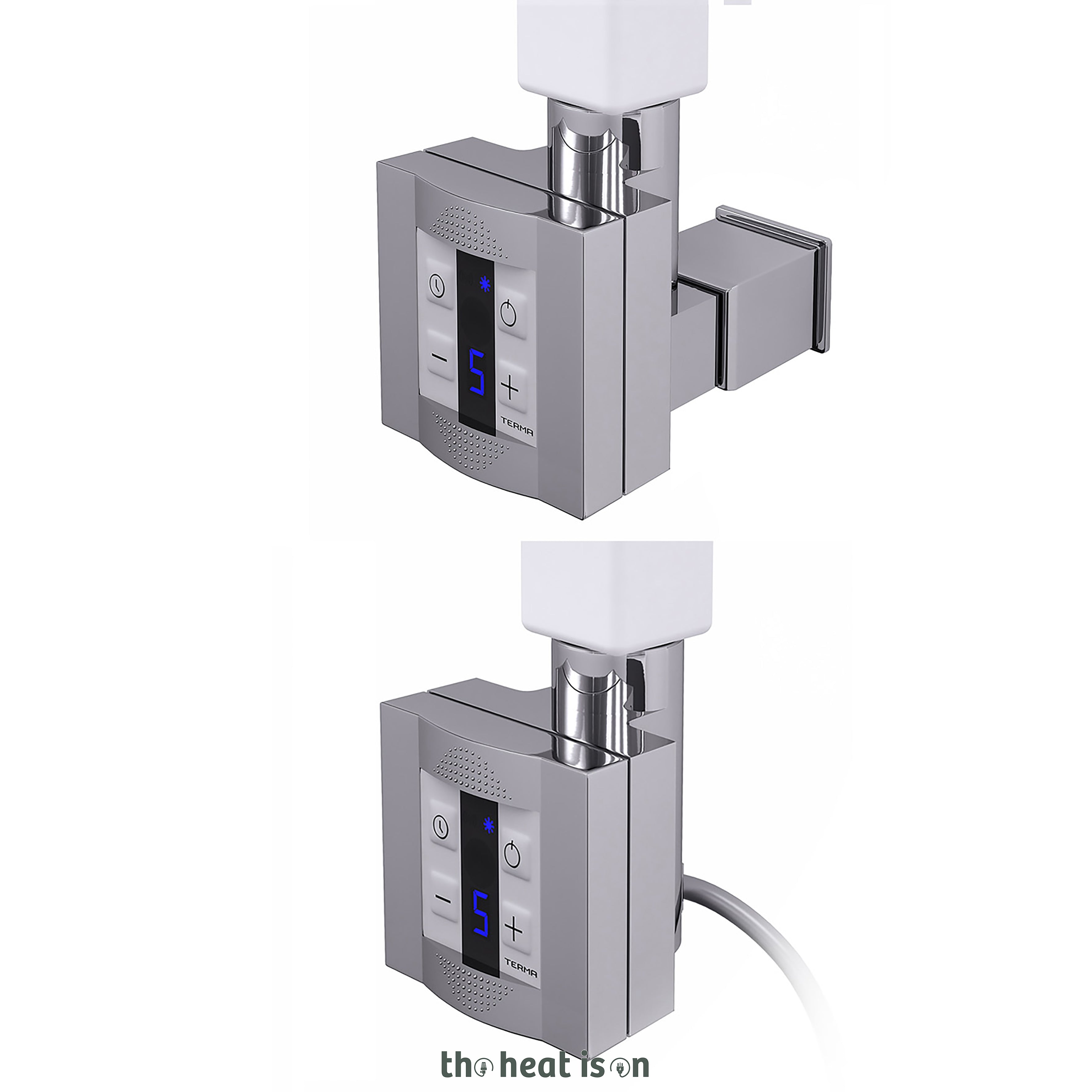

the heating element
- The KTX-4 is a detachable controller which powers the TS1 probe, forming a complete and reliable heating element, allowing easy maintenance and replacement of the probe without removing the entire unit.
- The wattage output depends on the power rating of the probe purchased, allowing flexibility to suit different radiator sizes.
- Provides 5 heat settings from 30¬?C to 60¬?C, adjustable in precise 1¬?C increments.
- Regulates the internal temperature and displays this clearly on the integrated screen.
- Includes a daily 24-hour timer for efficient heating control.
- Features a 1 to 4-hour drying function for convenient towel or laundry drying.
- Features four easy-to-use buttons: Dryer, Power, and Temperature + / -
remote control
- Includes an Infrared (IR) receiver for use with Terma TTIR portable thermostat/controllers or DTIR wall mounted controllers (sold separately).
- TTIR is a portable thermostat and 7-day timer.
- DTIR is a 24-hour wall mounted timer device.
- The infrared controller adds additional functions and more convenient control options.
- This system allows remote adjustment without needing direct access to the element.
element specifics
- Compact dimensions: 86mm length from thread down.

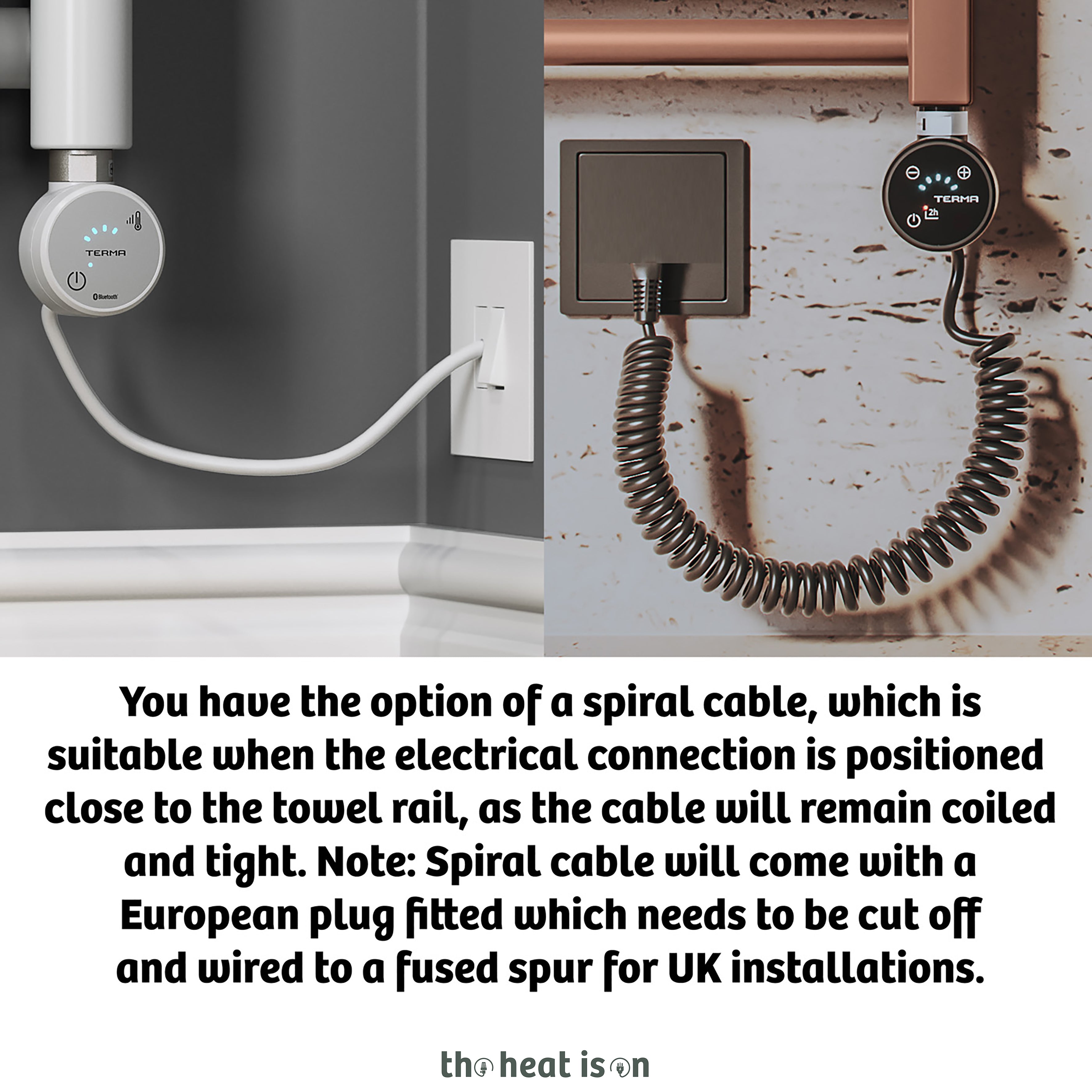

- Spiral cable supplied (as seen in the images), comes with a European plug fitted which will be cut off for installation in a UK bathroom.
- IPx4 rated, making it safe for use in bathroom environments.
- Class 1 device meeting electrical safety requirements.
colour & finish
- Heated Towel Rail is painted in RAL 9016 Matt White.
- Finished in a matt, smooth texture.
- Additionally, we have created a thorough and detailed technical guide on paint finishes and colours, giving even more information and tips.
- The element is in a chrome colour with a grey cable.
safety & compliance
- Fully built and tested to EN442 standards and UKCA certified.
- Heat outputs are independently verified by an external testing house to ensure accuracy.
guarantee & warranty
- Rail: 12-year manufacturer’s warranty for long-term reassurance.
- Element and Valve: 2-year manufacturer’s warranty.
