Understanding Radiator & Heated Towel Rail Heat Output

learn about heat output for radiators and heated towel rails

This guide draws on over 18 years of industry experience to explain everything you need to know about heat output, from basic principles to practical details. Choosing the right radiator or heated towel rail starts with understanding heat output,. Learn how BTUs and Watts ,how radiator heat output is tested in the lab and what delta t means in relation to testing heat output.

This expert guide explains how to calculate the required heat for each room, compare radiators from different suppliers, and understand the impact of radiator size and design on efficiency.

alex

How best to calculate the required heat output for your radiators or heated towel rails

The most reliable way to size your radiators or towel rails is to use a good heat-loss calculator. Here at the heat is on we’ve built an advanced tool that works for both piped (central heating) and wired (electric) systems.

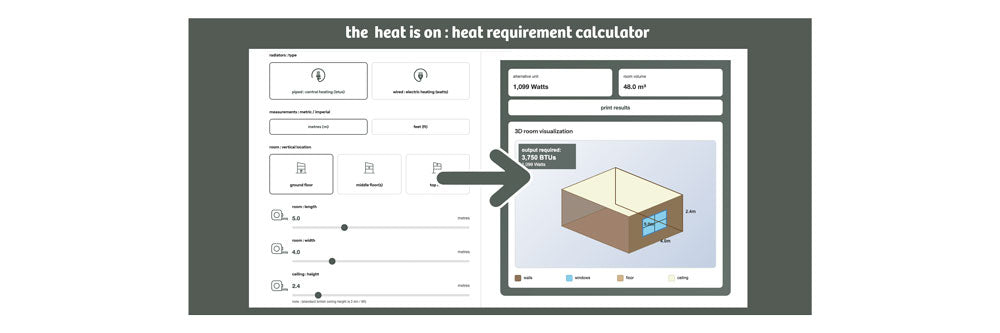

Our calculator takes you through a series of straightforward questions — insulation level, window size, room type, and whether you’re using central heating or electric heating. As you make your selections, you’ll see the input options displayed clearly (as shown in the image), and once everything is completed the tool generates a visual render of your actual room along with the heat output required to warm it properly.
This gives you an accurate, room-specific result rather than a rough estimate, making it much easier to choose the right radiator or heated towel rail first time.
Click to here to visit our heat calculator

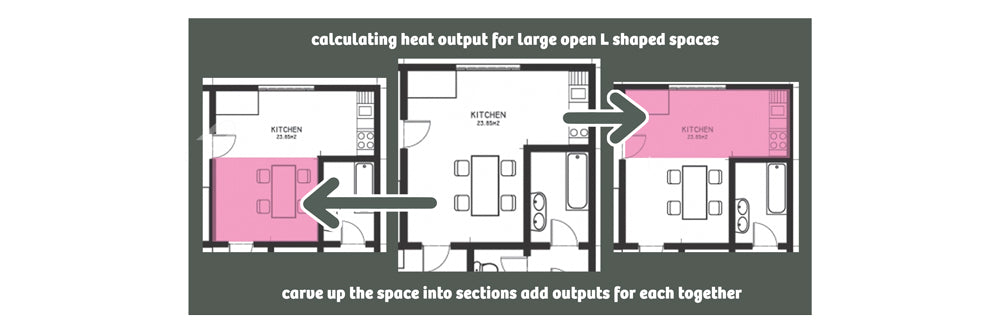

Calculating heat output for large open spaces, L-shaped rooms, or areas with varying wall lengths

For awkward-shaped or open-plan spaces, the simplest approach is to break the area down into two or more manageable sections. Calculate the heat requirement for each section separately, then add the results together to get the overall output needed for the full space.
This gives a far more accurate figure than trying to force the whole room into a single measurement, especially when wall lengths, ceiling heights, or zones within the space differ.

Use Your Existing PanelRadiators as a Guide.

When your house was built, the contractor or builder carefully selected the radiators to suit the design and construction of your home. This makes your existing radiators an excellent starting point when planning replacements.
We often see people upgrading from standard panel radiators to designer models. In these cases, referencing the output of your current radiators makes perfect sense.

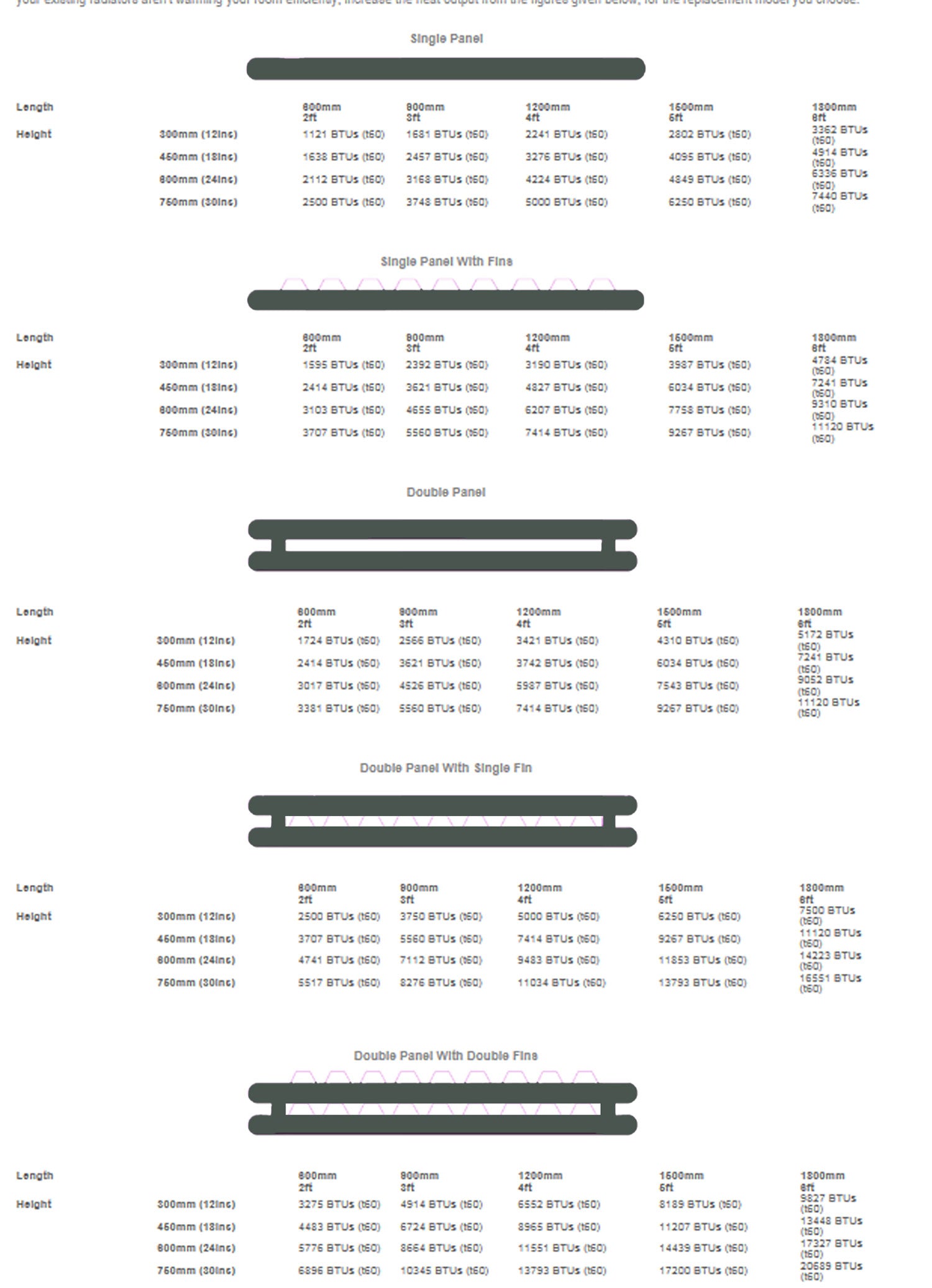

Measure the height and width of your existing radiator, then use the table below to identify its type and see its power output in BTUs. The table includes all standard panel radiator types and their corresponding heat outputs.
Tip: If a radiator has consistently struggled to warm the room, choose a replacement with slightly higher output than indicated in the table. This ensures your new model delivers the comfort you need.

Using your existing radiators as a guide

Use this chart to see what the output of your existing panel radiators are.

Click here to open this chart as a PDF file which may be easier to read.

Radiant Heat and Additional Convection Heat

Radiators on a central heating system primarily radiate heat — much like the sun warms objects around it.

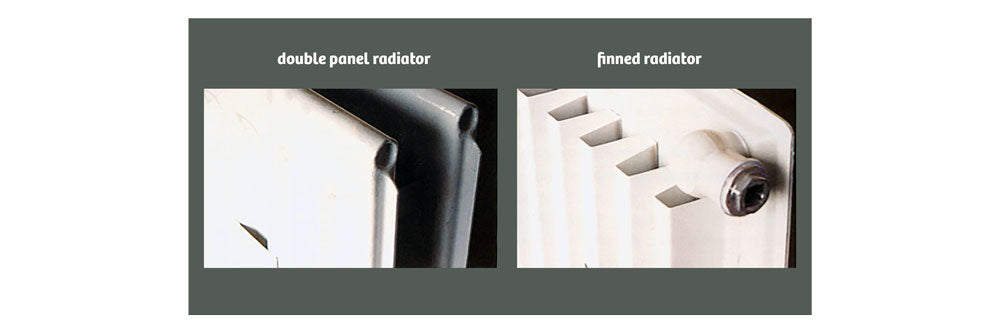

Many radiators also use convection to spread heat more efficiently. This works through channels or fins that pull cooler air up through the radiator, warming it as it rises and projecting it out of the top. Standard panel radiators often include these convection channels, as shown in the image.

Difference between BTUs and Watts

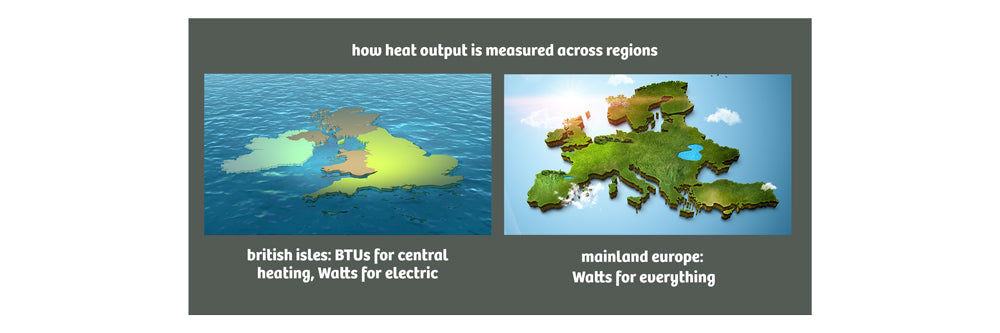

BTUs: BTU stands for British Thermal Unit. Plumbers often specify the heat output you’ll need in BTUs, and these figures are typically in the thousands. BTUs are commonly used in the British Isles, while watts are more common in Europe.
A BTU is the amount of energy required to raise 1 pound of water by 1 degree Fahrenheit. The large BTU numbers for radiators reflect the fact that they are heating enough water to warm an entire room.
Watts: Electric radiators and electric heated towel rails are usually measured in watts, and sometimes plumbers will specify heat output in kilowatts (1 kW = 1,000 W). One watt of heat output is equal to 3.41 BTUs, so the watt figure will always be lower than the corresponding BTU figure.
Watts are used for electric heaters because electricity is most commonly measured in watts.

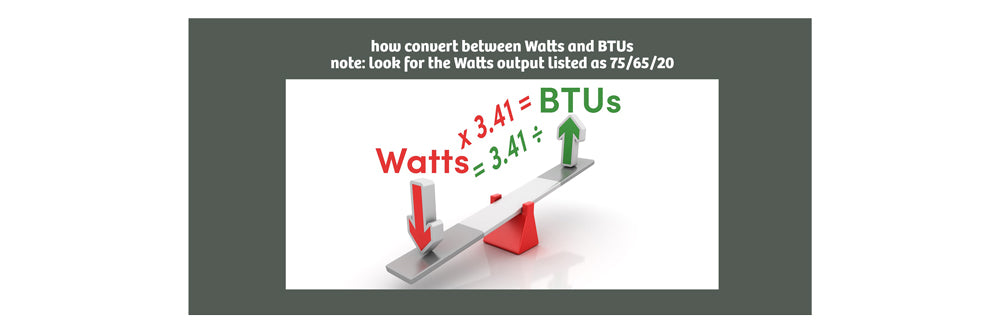

Converting BTUs to WATTS (and vice versa)

BTUs → Watts: Divide the BTU figure by 3.41
Watts → BTUs: Multiply the watts figure by 3.41
This gives a simple, quick reference for converting between the two common heat output units. I
The calculation is especially useful if you’re comparing radiator outputs specified in different units.

What does Delta mean in relation to BTUs?

You may notice that next to our BTU heat outputs it states Delta T50. This term refers to the conditions under which the heat output was tested in the lab. Think of Delta as the difference between the average water temperature in the radiator and the room temperature during testing.

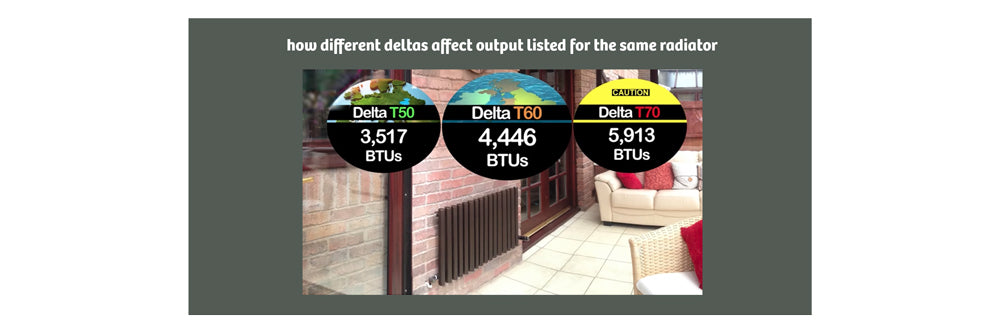

To put this in context, the radiator shown in the example image below could be listed with different delta figures:
>> Delta T50 (mainland Europe) → 3,500 BTUs
>> Delta T60 (Britain) → 4,400 BTUs
>> Delta T70 (rare, inflated output) → 5,900 BTUs
The actual heat given out by the radiator is the same, but the delta used affects the listed output.
This is why sometimes you will see 55/75/20 listed next to heat outputs in manufacturers brochures - it refers to the test conditions as we have discussed.
Next, we explain the process for testing heat output, which helps clarify where the Delta figure comes from:
All testing labs are fully compliant with European EN442 regulations.

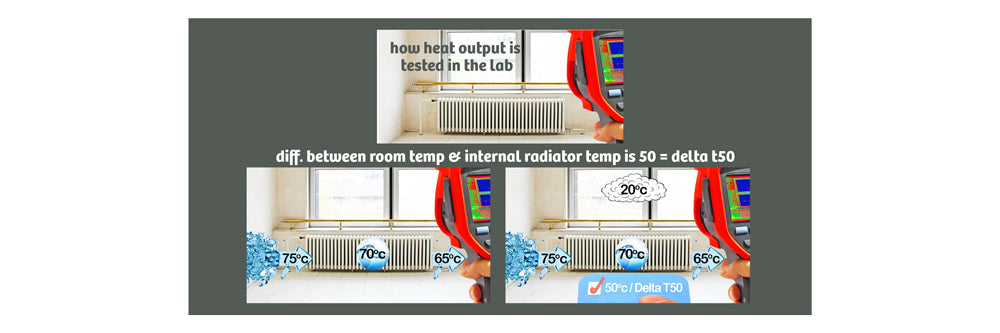

How Heat Outputs Are Tested in the Lab and How Delta T50 Factors In

Next, we explain the process for testing heat output. This helps you understand where the Delta figure comes from.
The labs used to test all of our products are fully compliant with European EN442 (and now UKCA) regulations, which specify the conditions for measuring radiator heat output. According to the standard:
The radiator should have an inward flow water temperature of 75 °C
A return outward temperature of 65 °C
This gives an average water temperature of 70 °C. If we subtract the room air temperature of 20 °C from this average, the difference is 50 °C — or a Delta T of 50, hence Delta T50.
This test must be conducted in a lab with a consistent air temperature of 20 °C, which is what Delta refers to in terms of testing conditions.

Converting Deltas for Comparing Suppliers Listing Delta Differently

When comparing radiators from different suppliers, make sure you are comparing like-for-like in terms of Delta output.
If the delta isn’t specified — as it is on all of our products — you should ask the supplier which Delta figure is being used to ensure a fair comparison.

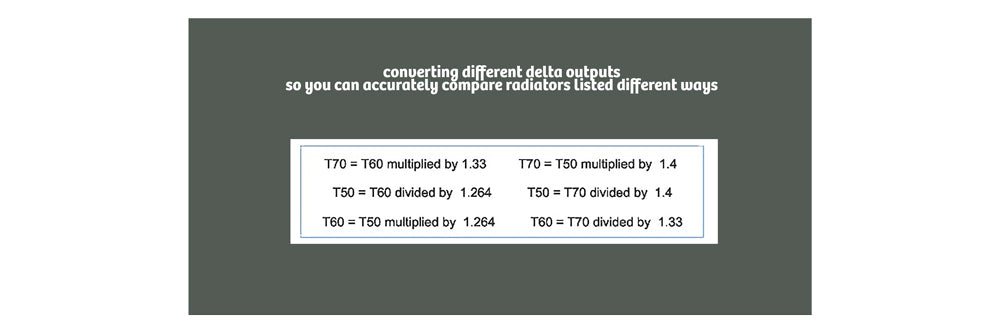

Below you'll find calculations for converting between different deltas.
Now that you understand what Delta means and how it is measured, you can confidently compare radiator outputs from different suppliers and make an informed choice.

Radiator Capacity / Surface Area and Its Effect on Heat Output

Here are some tips to help you choose radiator styles that maximise heat output:
1. Cylindrical Bar Radiators: The more water a radiator can hold, the more heat it will produce. Large 40 mm diameter bars (as seen in the bottom left image) have high volumetric capacity, so a cylindrical bar design like this emits a lot of heat.

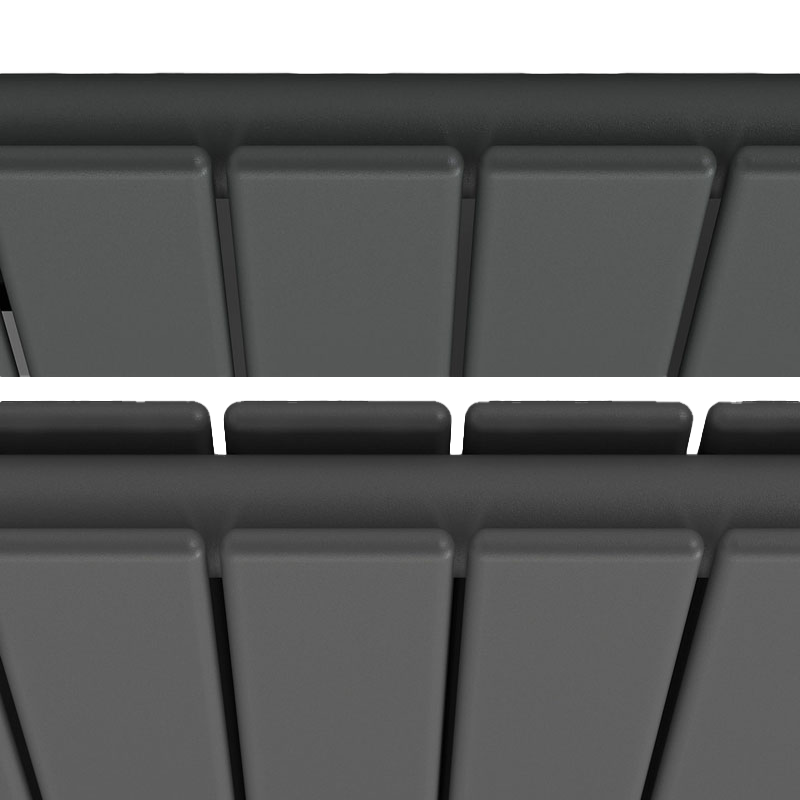

2. Flat Bar Radiators: In contrast, flat bar designs (as seen in the middle image) don’t hold as much water, so their heat output is lower. If you prefer this look, double panel versions are available — these have two layers of bars and give more heat than a single panel model.
3. Column Radiators: For a more traditional style, column radiators offer great flexibility and efficiency. They have three adjustable variables:
>> Height: 200 mm to 2,500 mm
>> Width: 20 to 40 columns
>> Depth: 2 to 6 columns
Adding more columns increases heat output, making column radiators very efficient at achieving high outputs.

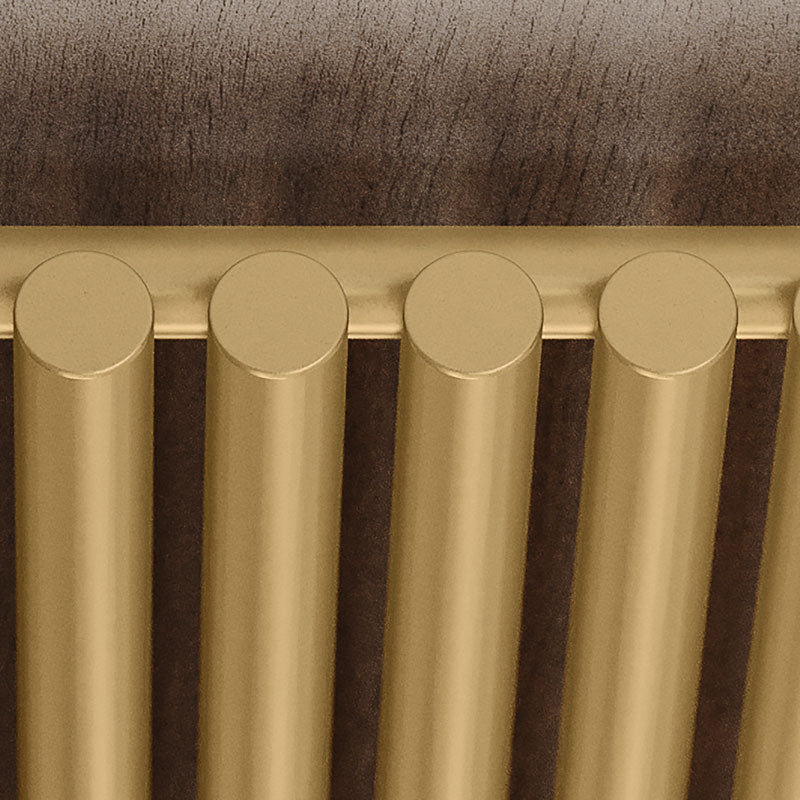

chunky 40mm bars

flat single & double

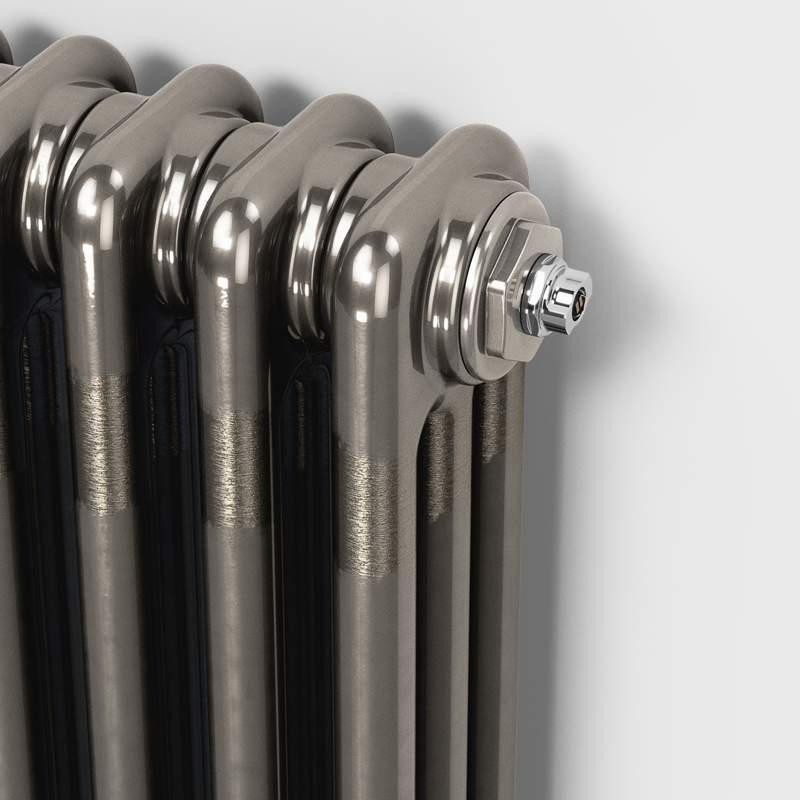

column radiators

Chrome vs Paint for Colour Choice on a Radiator or Heated Towel Rail

Colour choice can affect the heat output of a radiator — believe it or not.

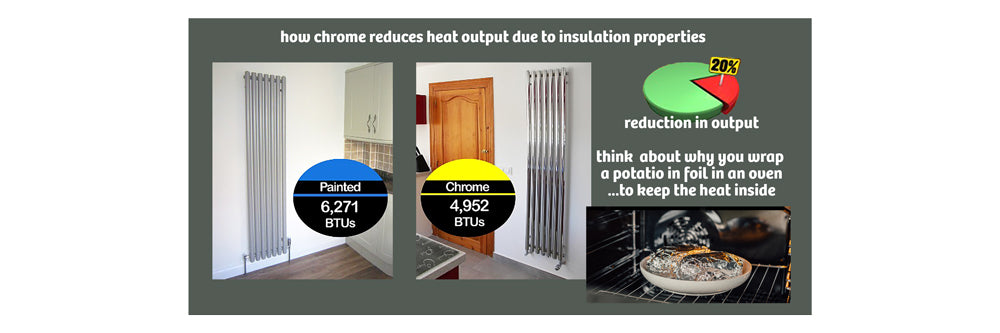

For example, the Rolo Room radiator shown in the image below emits 6,200 BTUs when painted, but the same size radiator in shiny chrome emits around 4,900 BTUs.
Chrome acts like an insulator, holding in some of the heat and emitting approximately 20% less compared with a like-for-like painted model. Think of it like wrapping tin foil around a baked potato in the oven — it keeps the heat in. Chrome does the same for your radiator.
Note: We no longer supply the Rolo Room model in chrome any longer now as we favour painted finishes- but we have retained this information here for in depth technical insight.
