Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your tradesmen. Here we give you complete expert guidance for this dual fuel towel rail — supplying all parts required — so you can ensure a smooth and successful installation when your tradesman arrives - note for dual fuel you may need both an electrician and plumber which is why you are best place to know what you need yourself in the case of dual fuel.
heat output
- Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size heated towel rail.
- As this is a dual fuel model you would work this out twice - once for central heating and then again for electric to ensure the respective outputs this rail gives match both requirements - use the central heating as the lead source and just closest match the electric output.

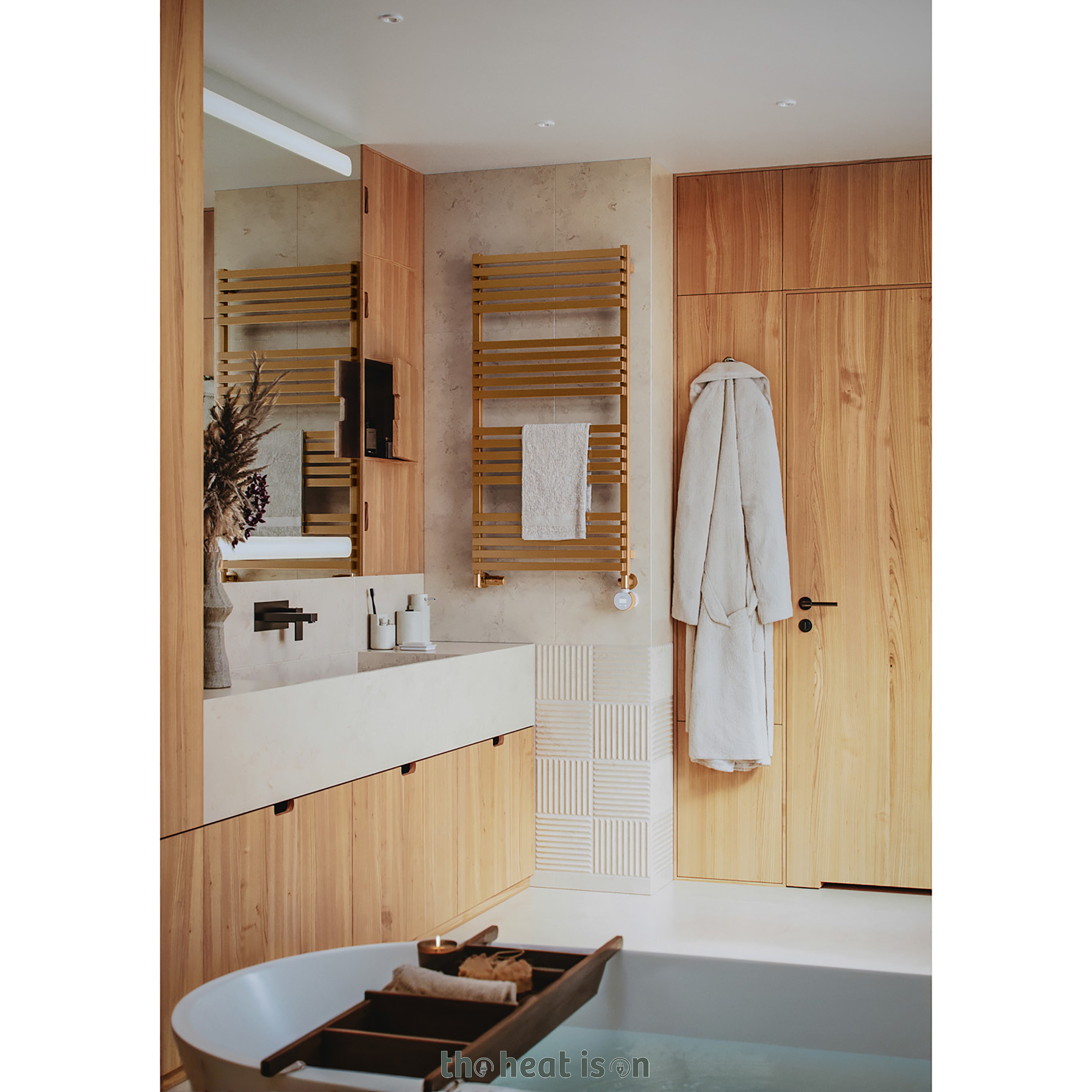

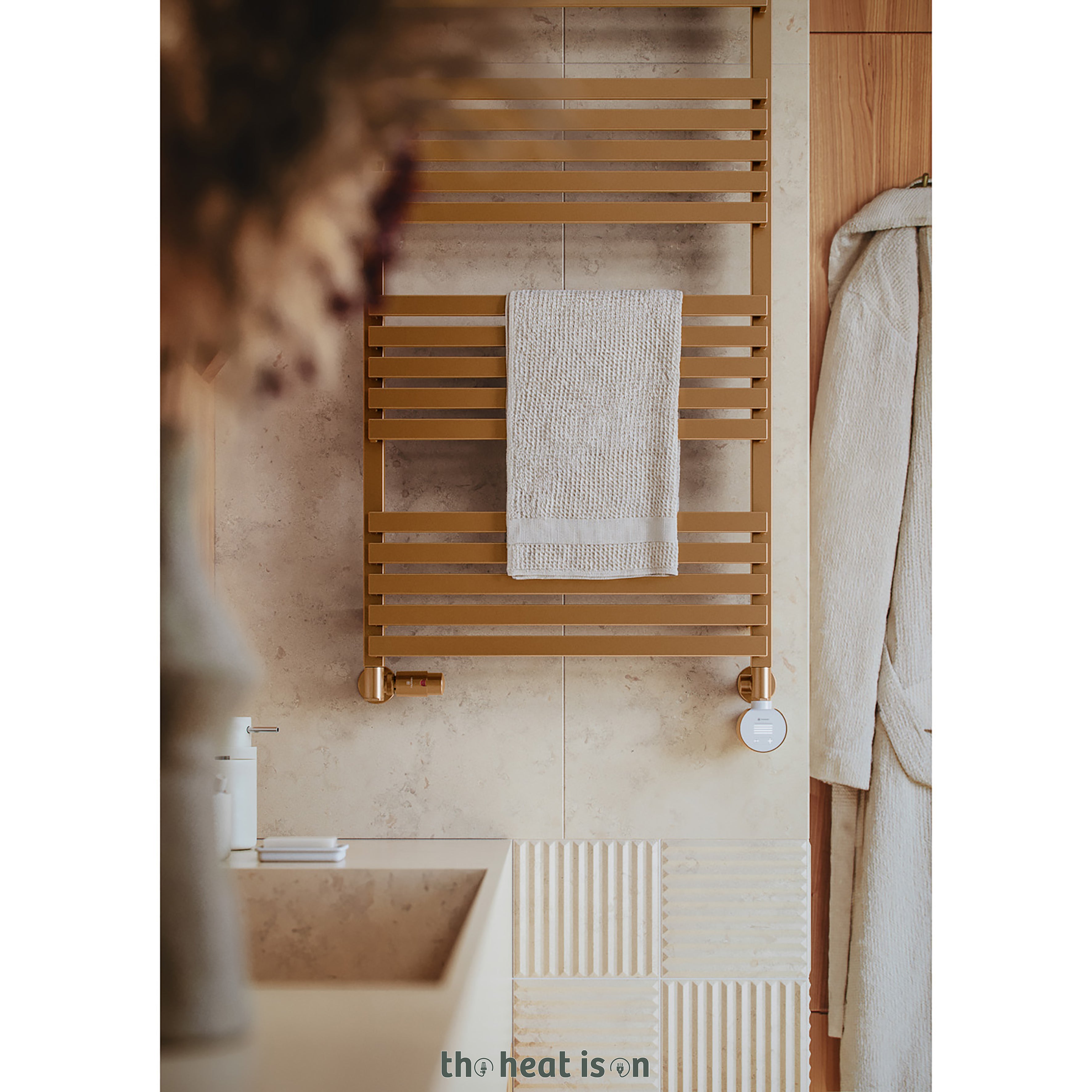

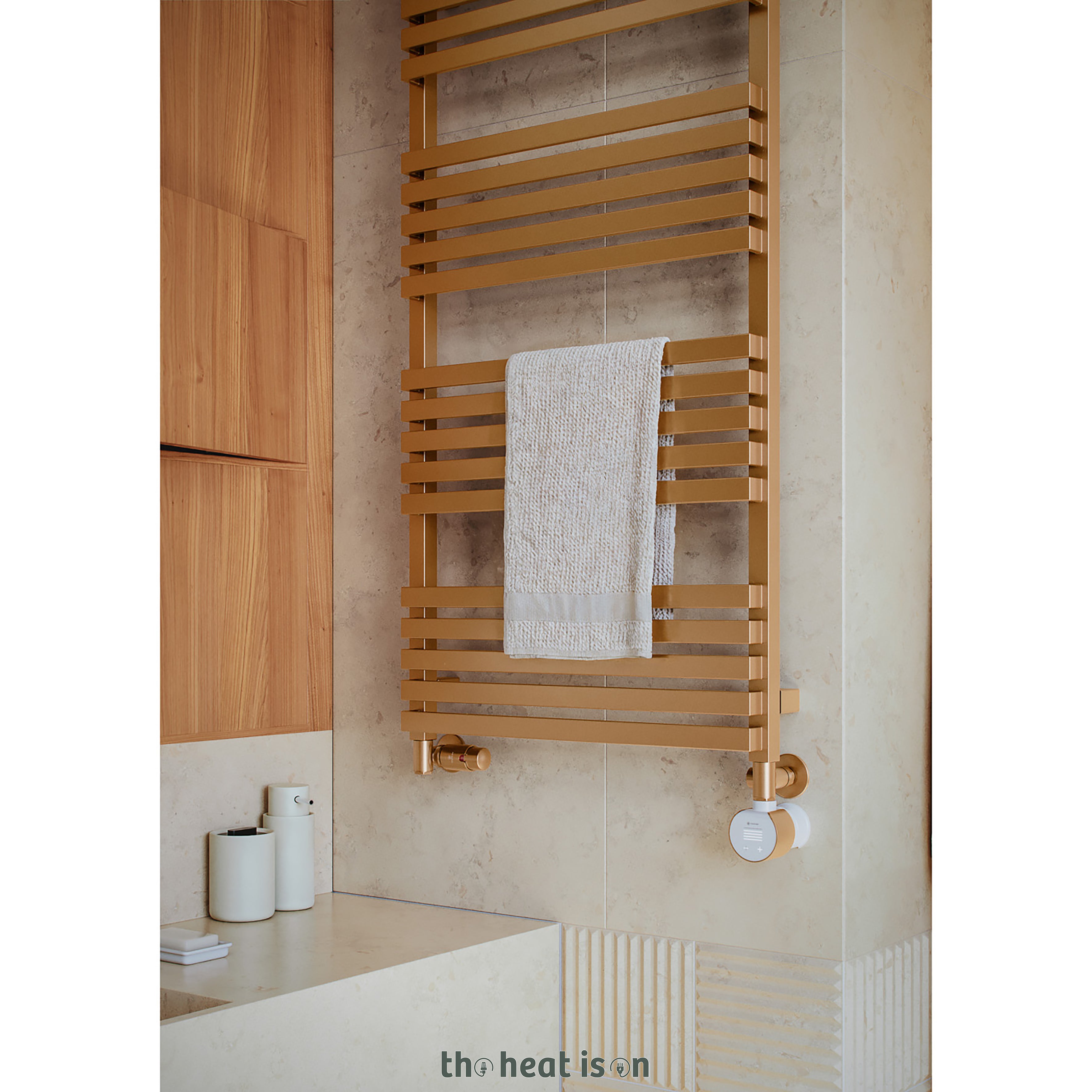

a complete dual fuel towel rail : with all components included
- This is a complete dual fuel towel rail with everything you need to simply install it and set this up as dual fuel - no fuss, no mess.
- These are state of the art dual fuel towel rails provided with the very best specialist dual fuel items for a high end looking finish - as often dual fuel installations can look cumbersome in comparison to this.
- You will receive all items as seen in the main images which includes:

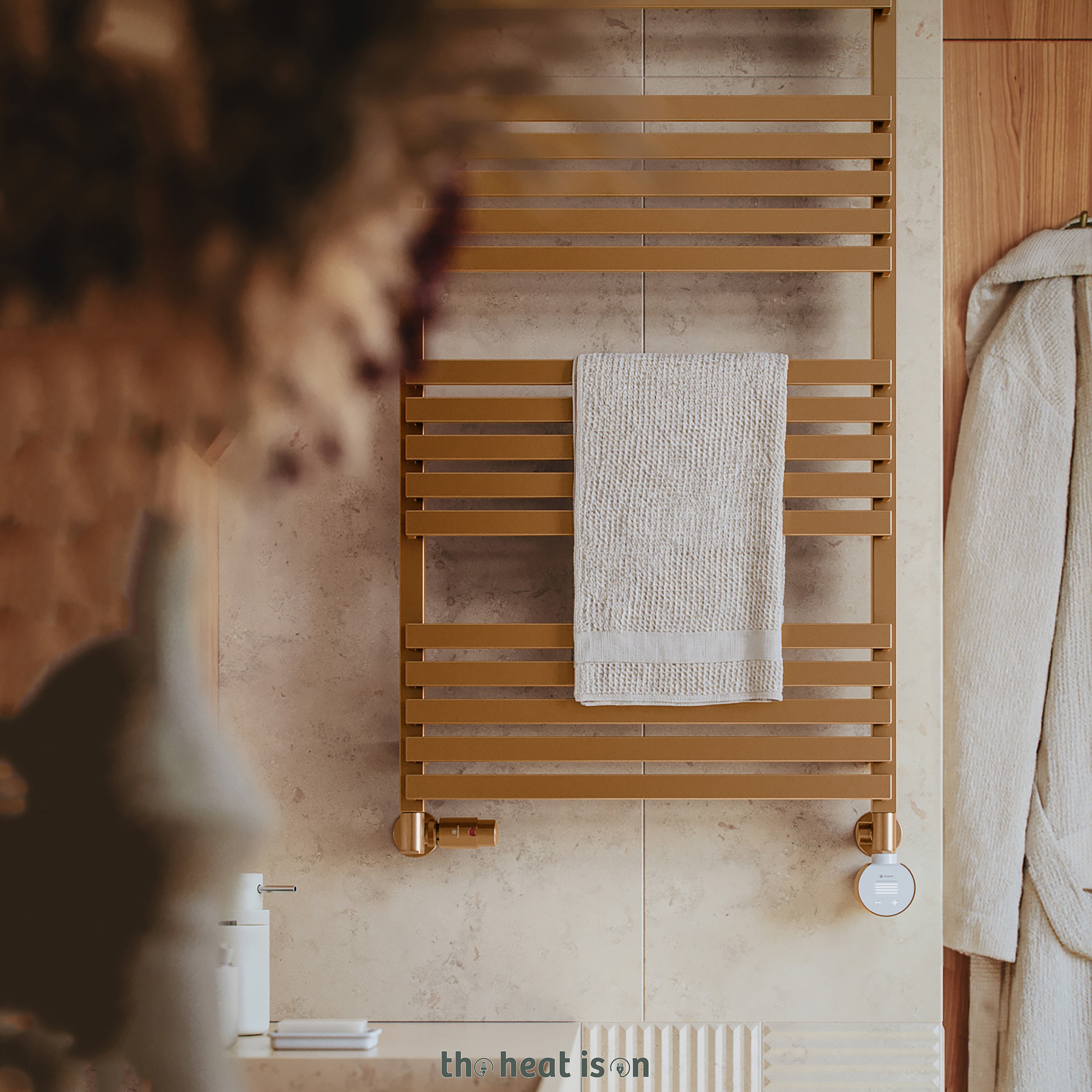

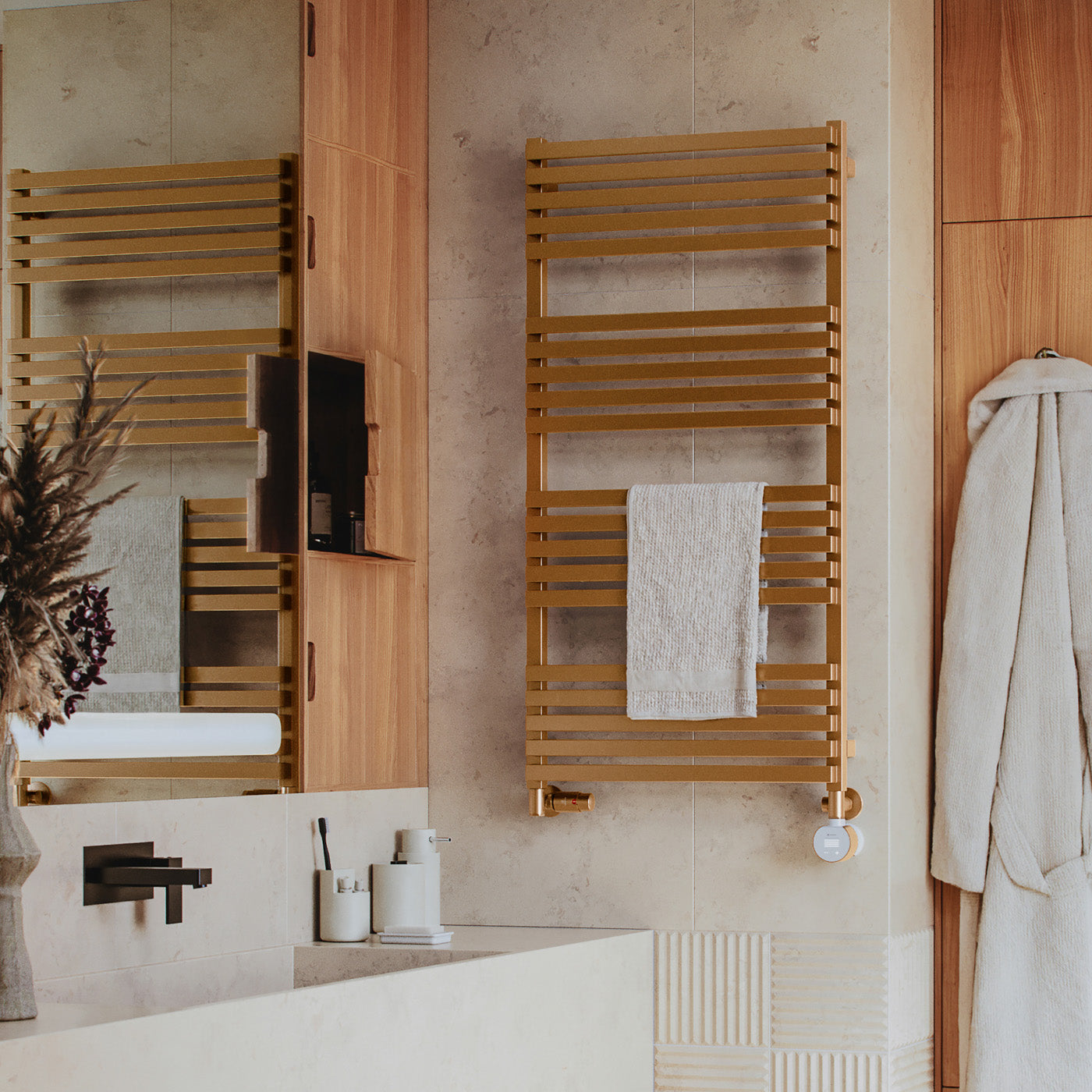

- QUADRUS SLIM heated towel rail
- INTEGRA specialist dual fuel valves
- VEO heating element
- SS1 heating element probe
what is a dual fuel towel rail?
- Dual fuel means you can run the same towel rail in two ways — as electric via the use of a heating element in the summer (when you may only want to dry your towels or clothes) and as central heating in the winter (when the full system is on).
- The water inside the towel rail comes from your central heating system as normal — when the main system is off this water will sit idle, and in the summer the element installed in the towel rail will warm the water located inside just this towel rail. You can keep both of the valves open.
- If you want to learn more about dual fuel, read our dedicated dual fuel towel rail guide here.
the heated towel rail
- QUADRUS SLIM is designed with a single-layer bar configuration.
- The flat bars and closely spaced gaps create a distinctive, fuller appearance compared to standard ladder rails.
- The front bars protrude from the uprights, providing a generous space for easily hanging towels.
- Made from low carbon mild steel.
...full range of sizes available
- In addition to the sizes we are displaying here on the heat is on - you can view the full range of 4 different sizes of QUADRUS SLIM here on the Terma website.
- When viewing the Terma website, the heat outputs are only listed in Watts - using the column header stating 75/65/20, multiply the amounts by 3.41 to get the BTUs equivalent.
- If you want to learn more about heat output, view our technical guide on heat output.
- We can process a special order for any size you wish to purchase if that size is not shown on our website.
the specialist dual fuel valve

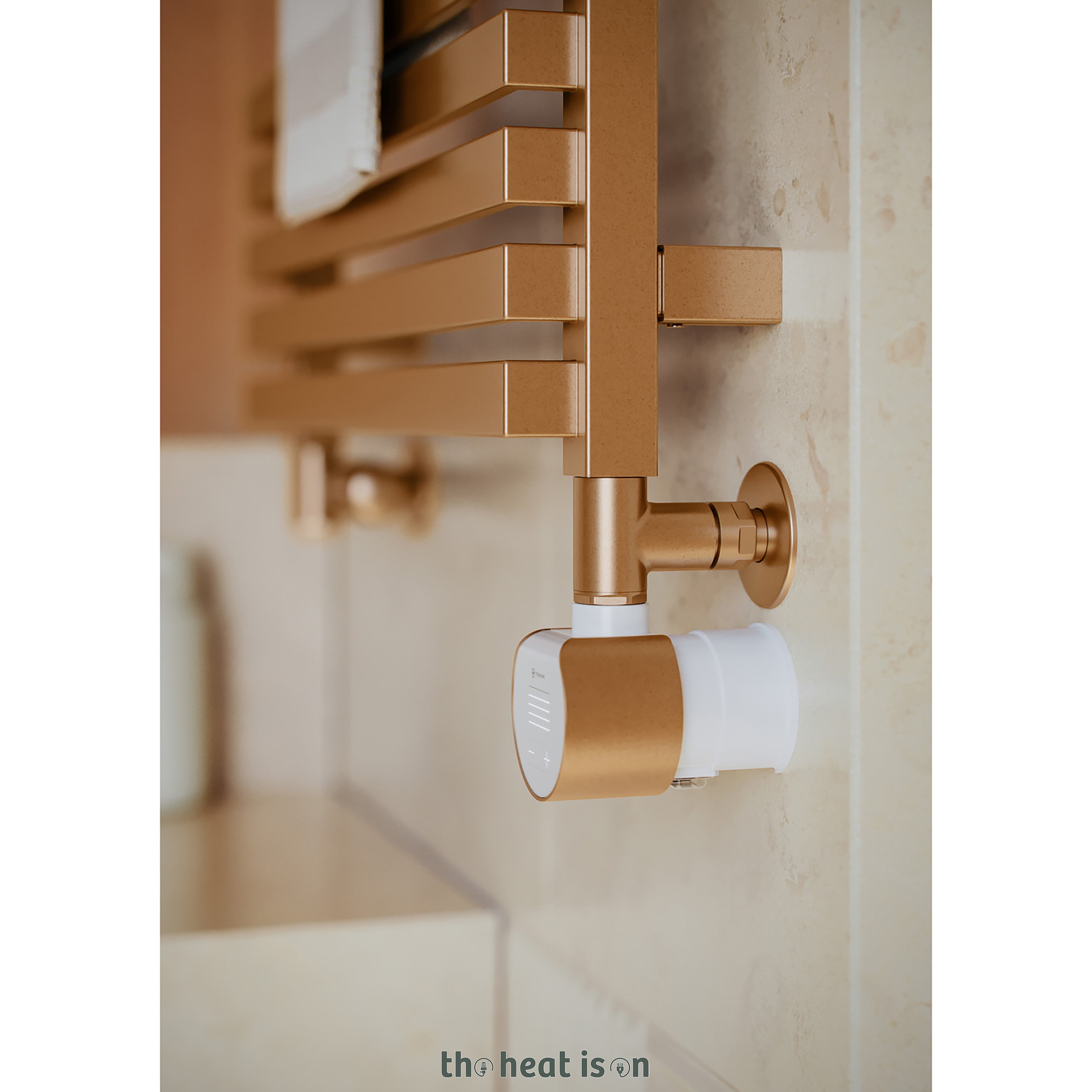

- This INTEGRA specialist 3 axis dual fuel valve, with an integrated T-piece, is ideal for neat looking dual fuel installations.
- Supplied as valve sets including pipes and wall covers, finished in the same colour as the towel for a coordinated appearance (removing the need for a separate T-piece).
- Thermostatic 3 Axis Valve Set integrated with a T-piece, specially designed for installing at the corners of a radiator with pipes coming through the wall and a flush fronted finish where the TRVs will not protrude forward.

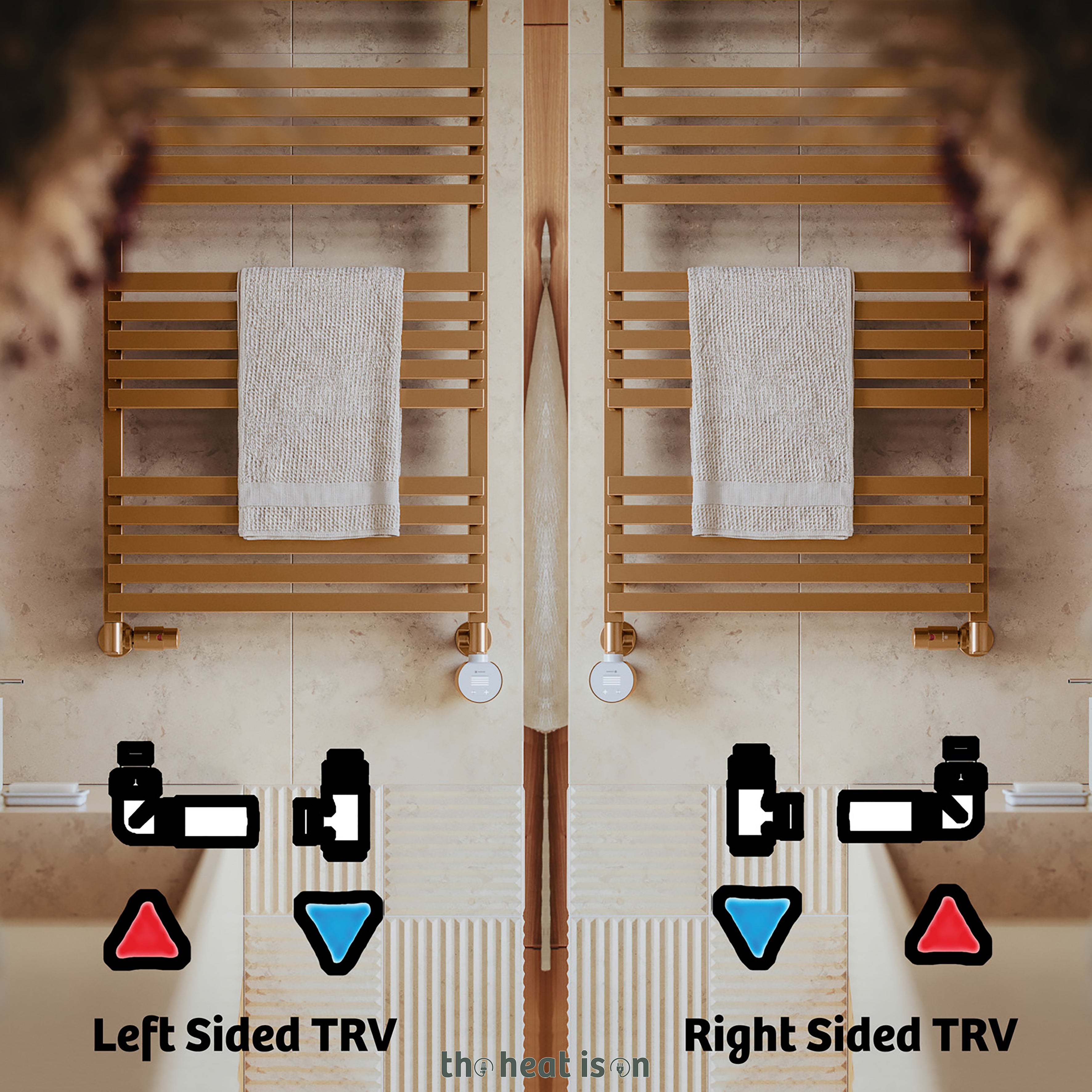

- Choose left or right side as you need for your specific installation.
the heating element

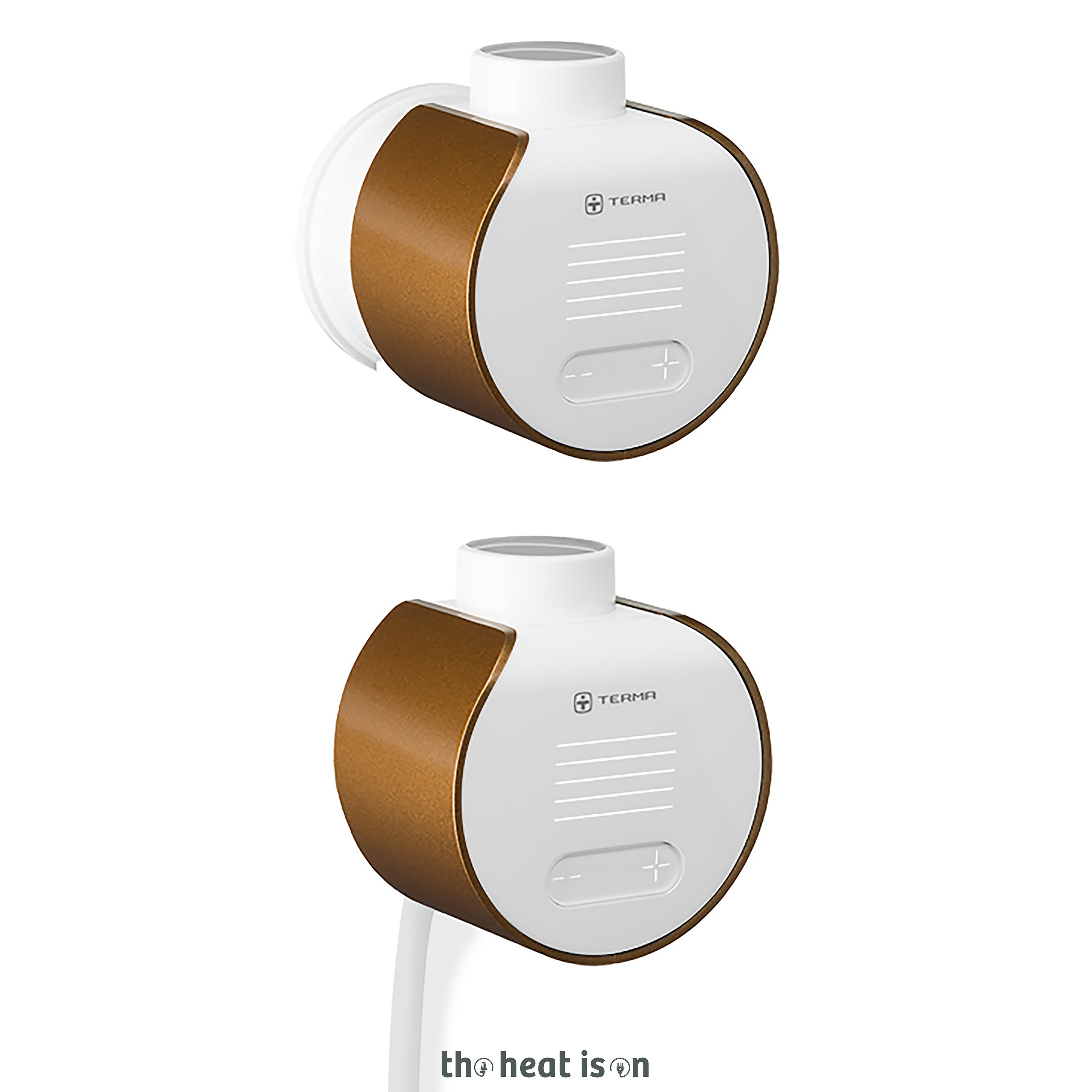

- The VEO is a Wi-Fi enabled controller which powers the SMART Split probe, forming a complete and reliable heating element.
- Basic control (temperature and a simple timer) is available directly from the front panel.

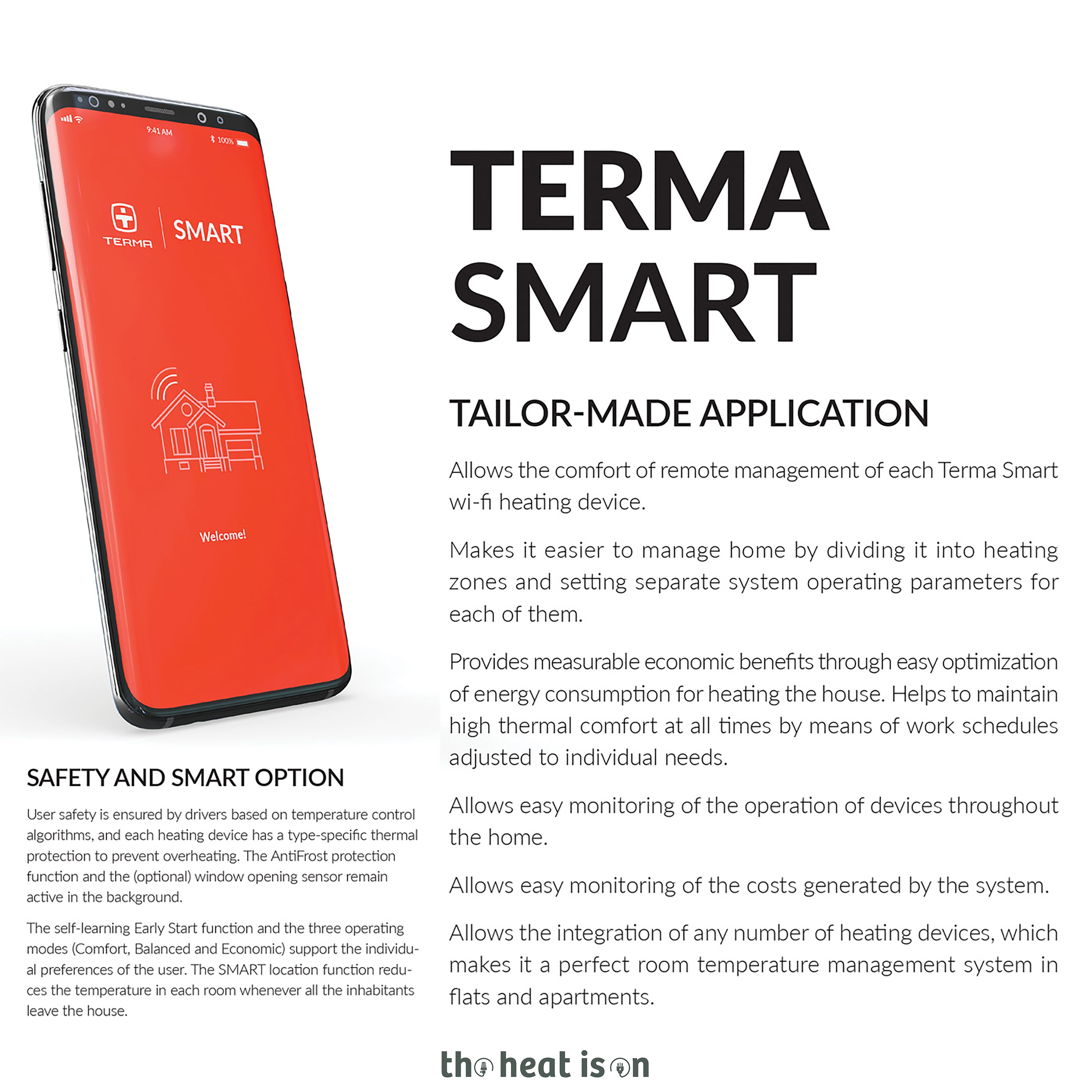

- Full advanced functionality is available through the Terma SMART app (iOS/Android) for full control and flexibility.
- Offers 5 room temperature settings from 15¬?C to 28¬?C.
- Includes a drying function and a full 7-day timer.
- Compatible with Amazon Alexa, Google Assistant, and IFTTT for voice and smart-home integration.
- No additional hub is required.

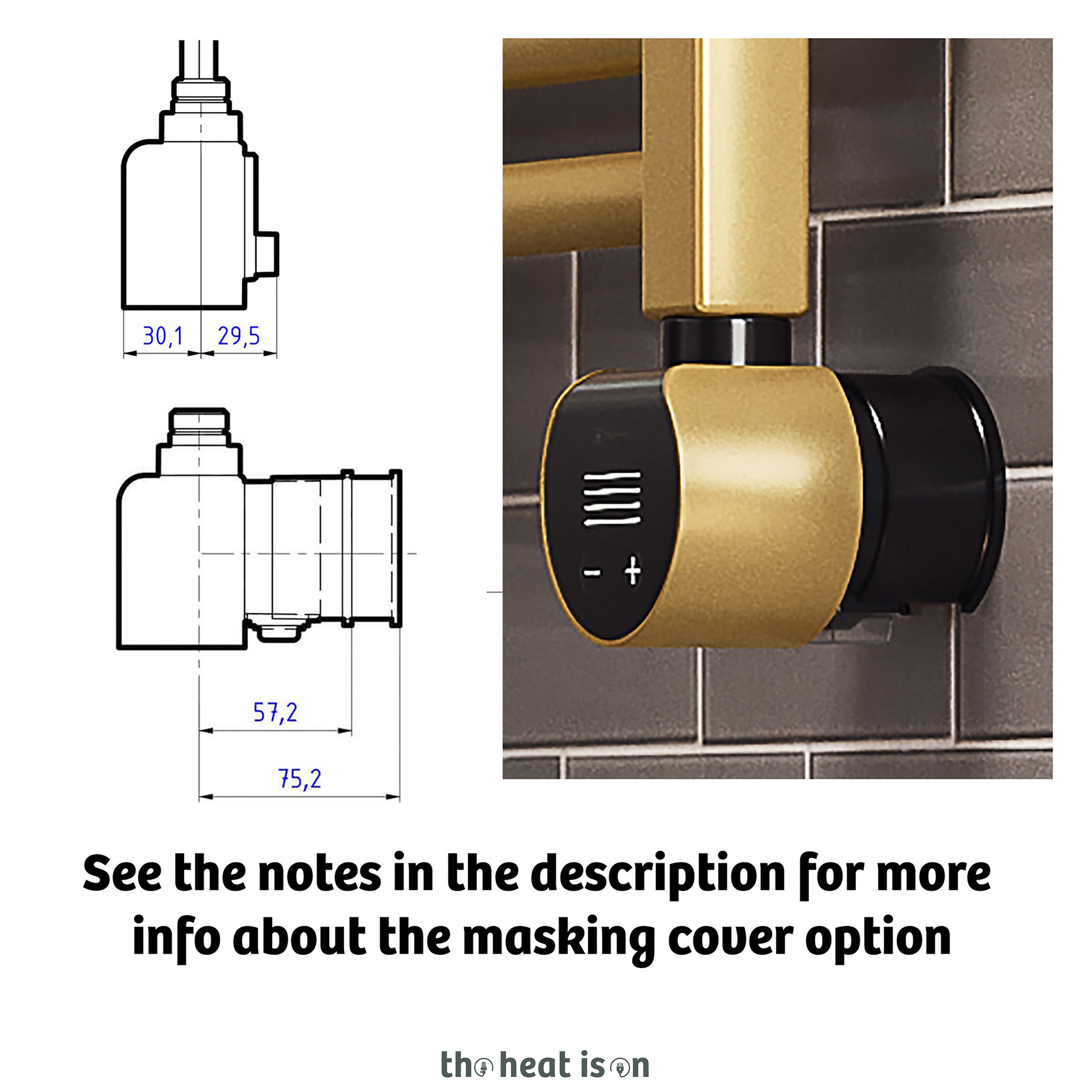

...standard versus cable masking
- The masking option conceals the wire up to the entry point into the wall, providing a neater, tidier appearance.
- Important note: Masking requires the wall to be trowelled out; if walls or tiles are already finished, the standard (non-masking) option is recommended.
...element specifics

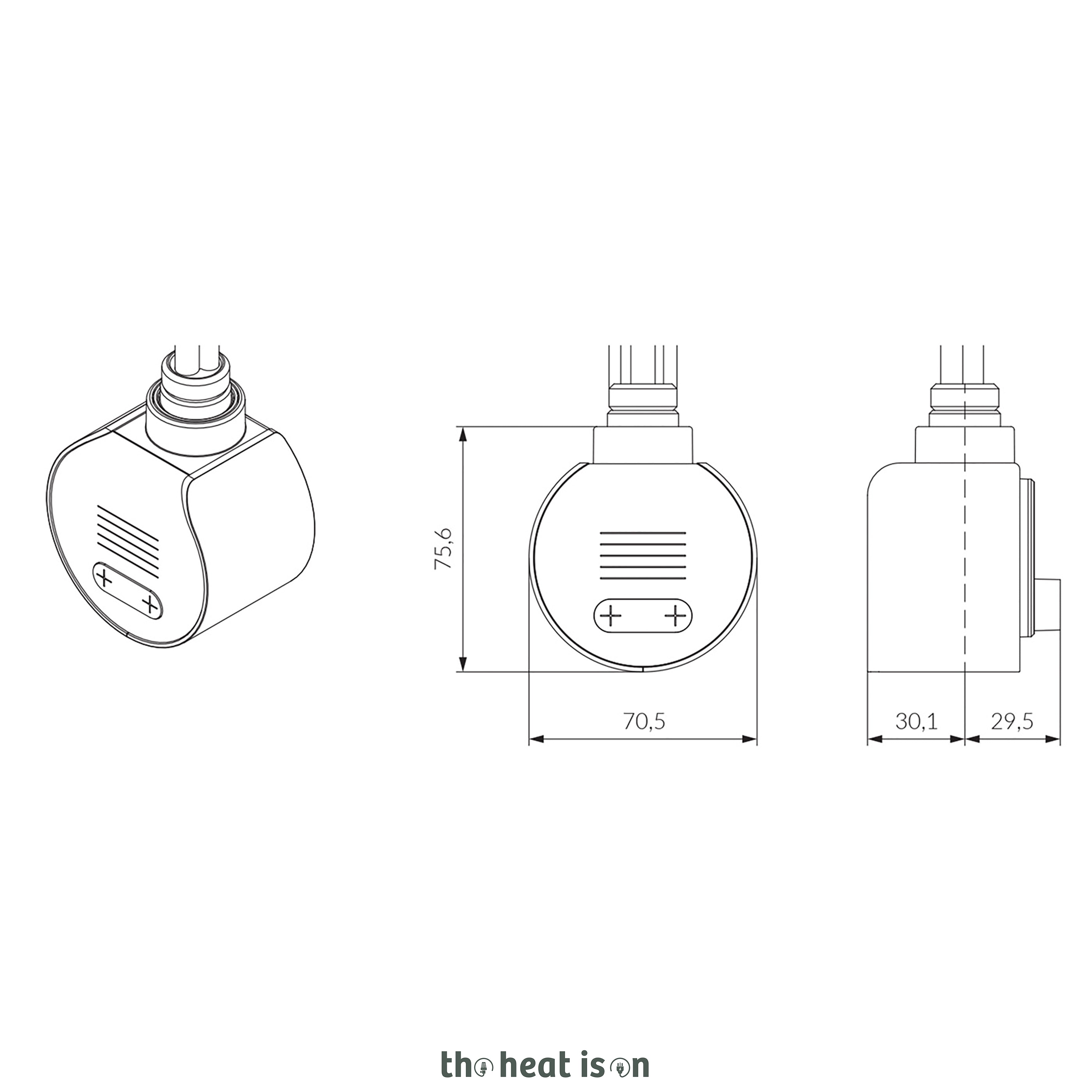

- Compact dimensions: 75.6mm length from thread down, 70.5mm width.

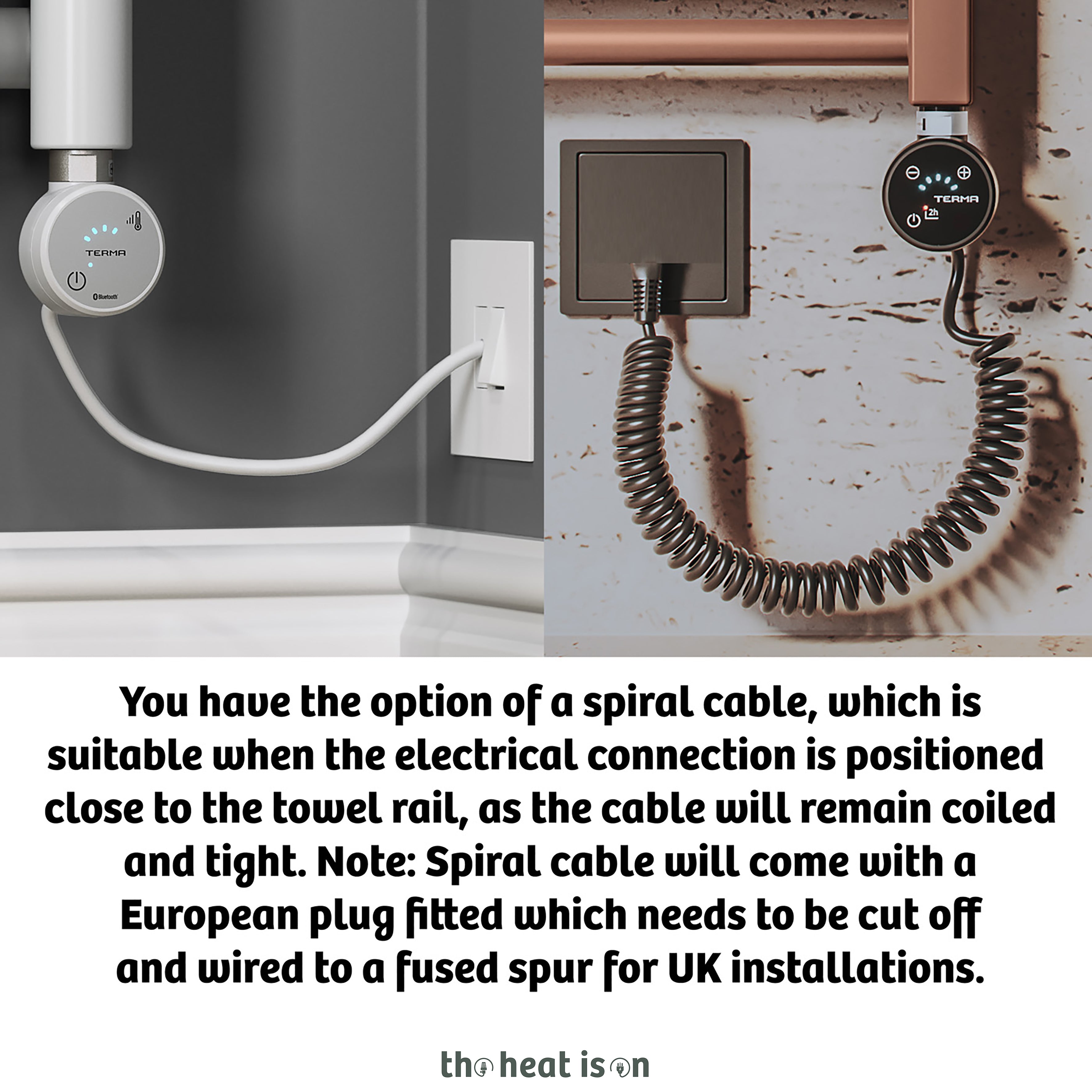

- Supplied with a straight cable and fitted UK 3-pin plug (remove if used in a bathroom).
- IPx5 rated, safe for use in bathroom environments.
- Class 1 device meeting electrical safety requirements.
- UKCA approved for compliance with UK regulations.
...precision options for the element
- Can be paired with the VTS wall-mounted temperature sensor and the VOS open window sensor (both sold separately) for precise room-wide temperature measurement.
- Provides optimal comfort and energy efficiency by adjusting heating based on room conditions.
- Features geo-location functionality, reducing temperature by 3‚Äì4¬?C when leaving home and returning to comfort mode when you arrive.
colour & finish
- Heated Towel Rail is Painted in Brass (premium wet paint).
- Finished in a metallic, smooth texture.
- This is a premium wet paint which is painted using a hand finished liquid paint (as opposed to an automated powder paint), creating a deeper, more metallic type finish.
- Note: If you don't have the budget for a premium wet paint, the closest colour match in a powder paint would be the Halo colour, slightly darker gold. Call us to request this option.
- A 150?ó50mm colour chip of this finish is available to purchase for preview.
- Additionally, we have created a detailed technical guide on paint finishes and colours, giving even more information and tips.
- The element is in a matching old bronze colour with a white fascia and white cable.
safety & compliance
- Fully built and tested to EN442 standards and UKCA certified.
- Heat outputs are independently verified by an external testing house to ensure accuracy.
guarantee & warranty
- Rail: 12-year manufacturer's warranty for long-term reassurance.
- Element and Valve: 2-year manufacturer.
- Usual lifespan of a heating element is 4 to 7 years dependent on use.

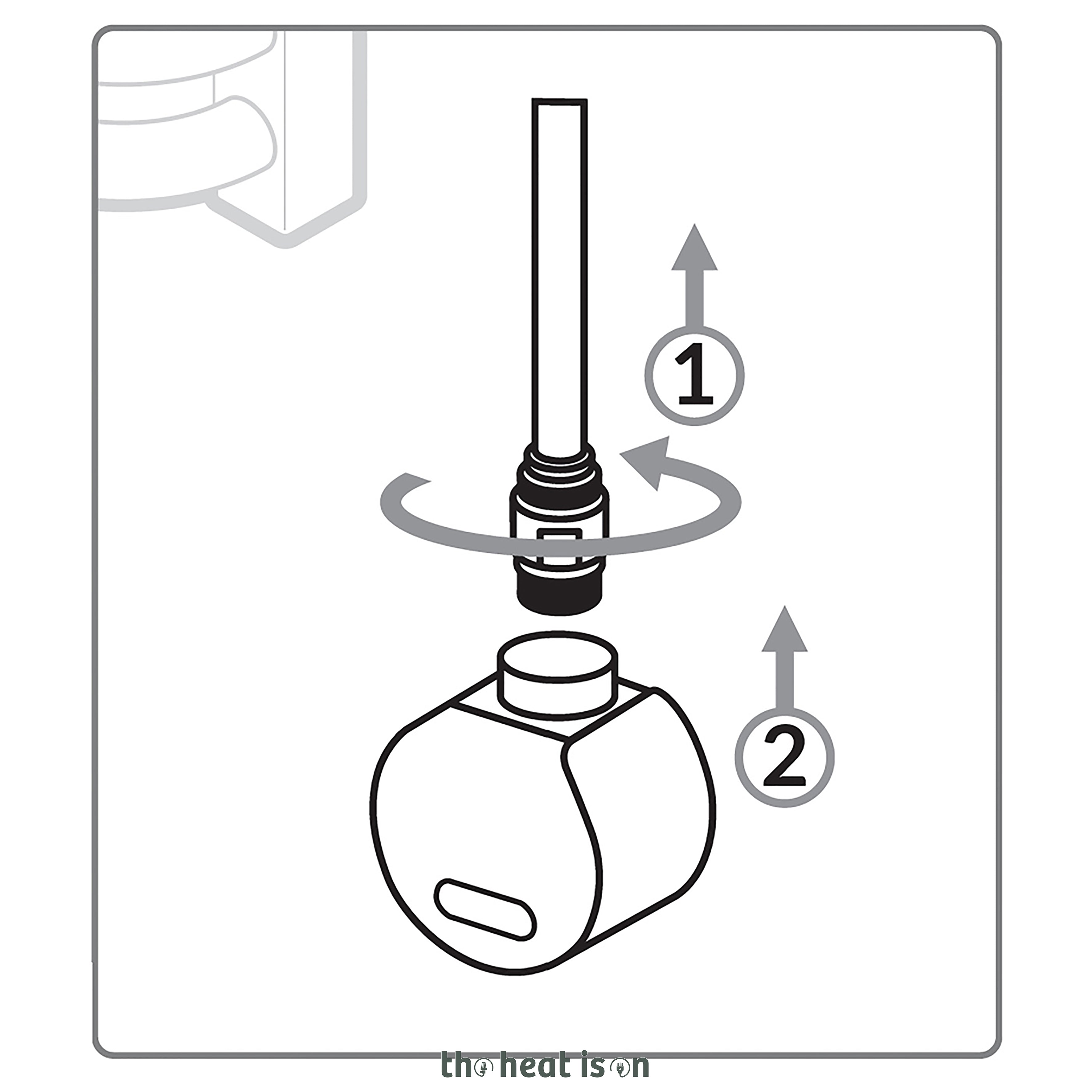

- At end of life, you can simply replace the SS1 heating probe inside this model, as the external VEO controller is a separate unit — making replacement a cost-effective and straightforward process.
