Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your electrician. Here we give you complete expert guidance for this specific electric radiator — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.
heat output
- Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size electric radiator - in terms of the Watts / Kilowatts heat output it gives.
design & material

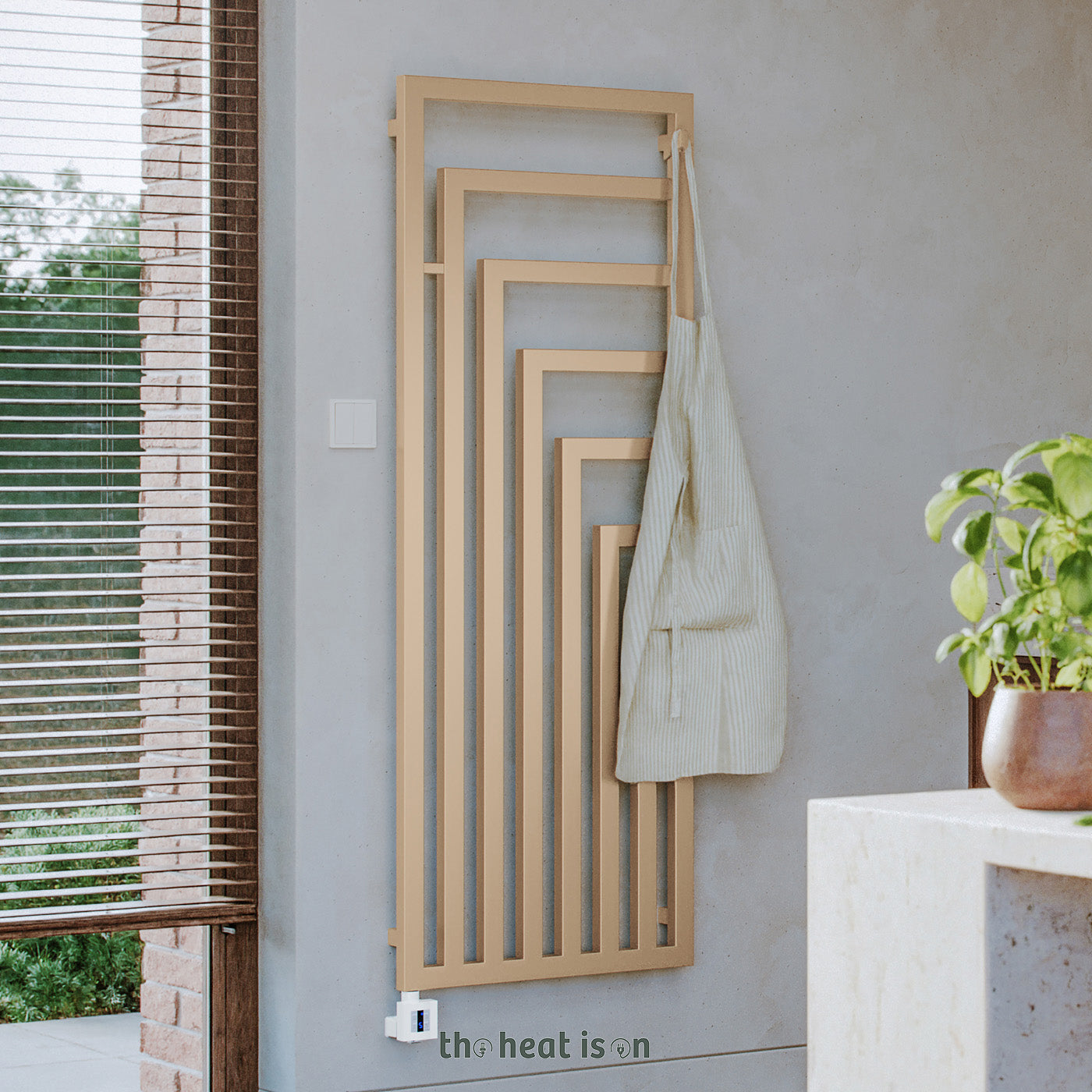

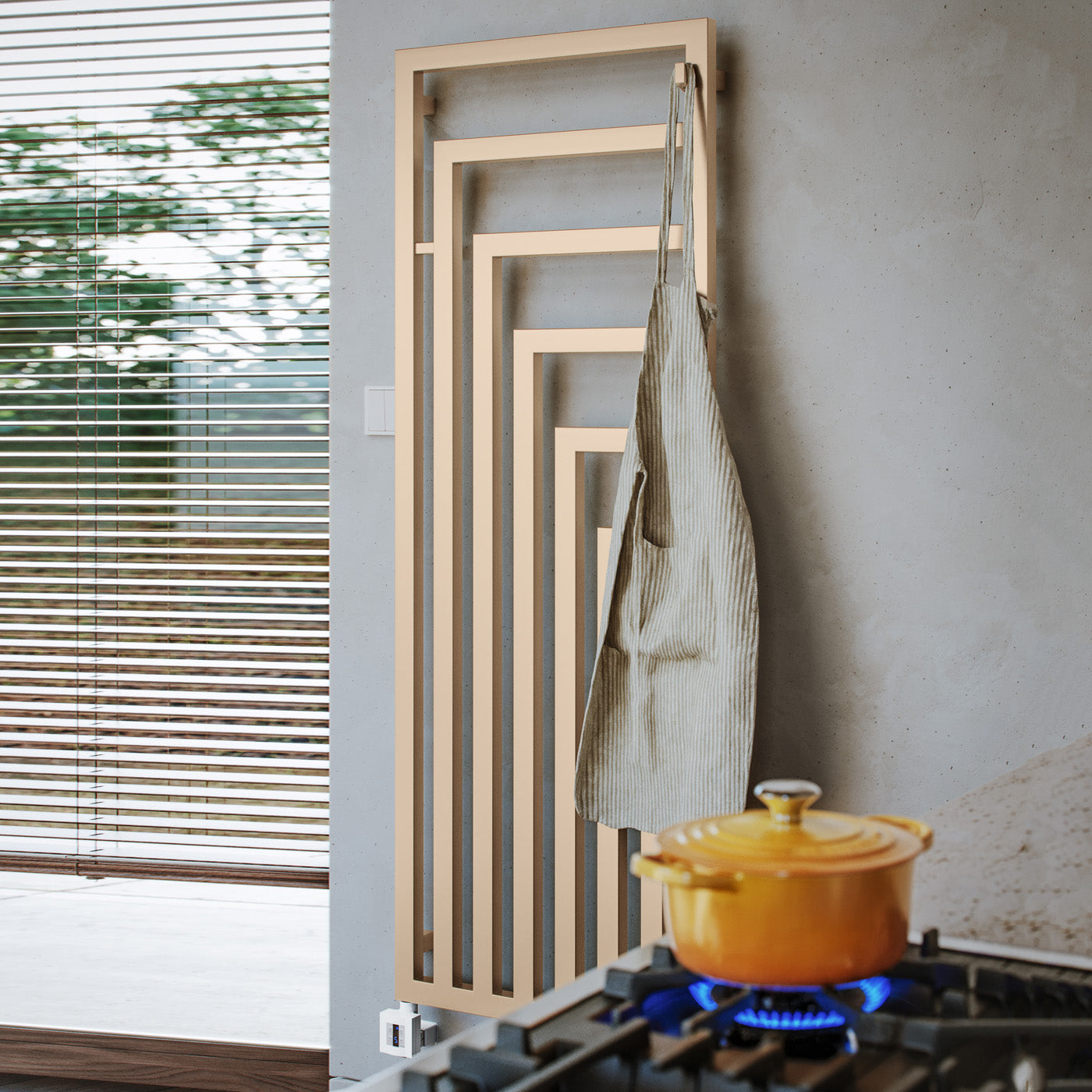

- Distinctive linear design featuring rectangular bars arranged in ever-decreasing right-angle profiles.
- Sculptural appearance framed in a clean square profile—resembles modern wall art more than a traditional radiator.

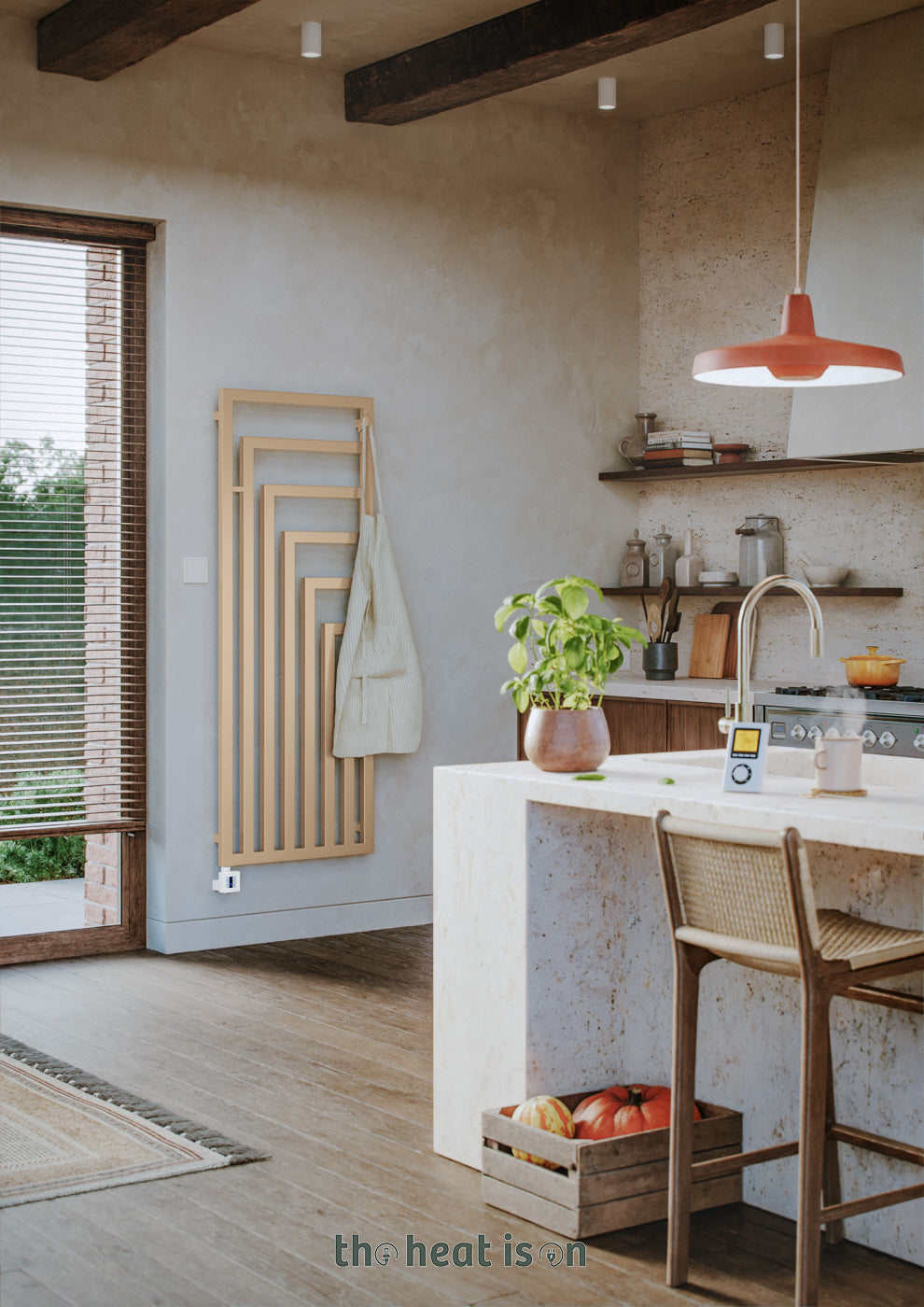

- Ideal for both bathrooms and living spaces, offering a striking architectural statement.
- Wall brackets match the radiator’s colour and style, creating a seamless "floating" effect.
- This is a Vertical radiator; it cannot be installed horizontally.
- Additionally, we have created a thorough and detailed technical guide on electric radiators, giving even more information and tips.
full range of sizes available
- In addition to the sizes we are displaying here on the heat is on - you can view the full range of 5 different sizes of ANGUS VE here on the Terma website.
- We can process a special order for any size you wish to purchase if that size is not shown on our website.
control & functionality
- Uses the Terma KTX 4 heating element.
- The KTX 4 has 5 temperature settings that range from 30°C to 60°C.
- 1, 2, 3 or 4 hour drying function for convenient timed heating.
- Infrared (IR) receiver for use with Terma TTIR portable thermostat/controllers or DTIR wall-mounted controllers (sold separately).
- Accurate internal temperature regulation for consistent heating performance.
colour & finish
- Painted in Champagne (premium wet paint).
- Finished in a metallic, smooth texture.
- This is a premium wet paint which is painted using a hand-finished liquid paint (as opposed to an automated powder paint), creating a deeper, more metallic finish.
- A 150×50mm colour chip of this finish is available to purchase for preview (link to colour chip will be on right-hand side of page).
- Additionally, we have created a thorough and detailed technical guide on paint finishes and colours, giving even more information and tips.
installation & features
- Element is pre-fitted inside the radiator (left-hand side, E1 connection). If you would like it on the right-hand side (E8 connection), please contact us to place this as a special order. Consider where your electric supply will be so the wire has the shortest distance to travel.

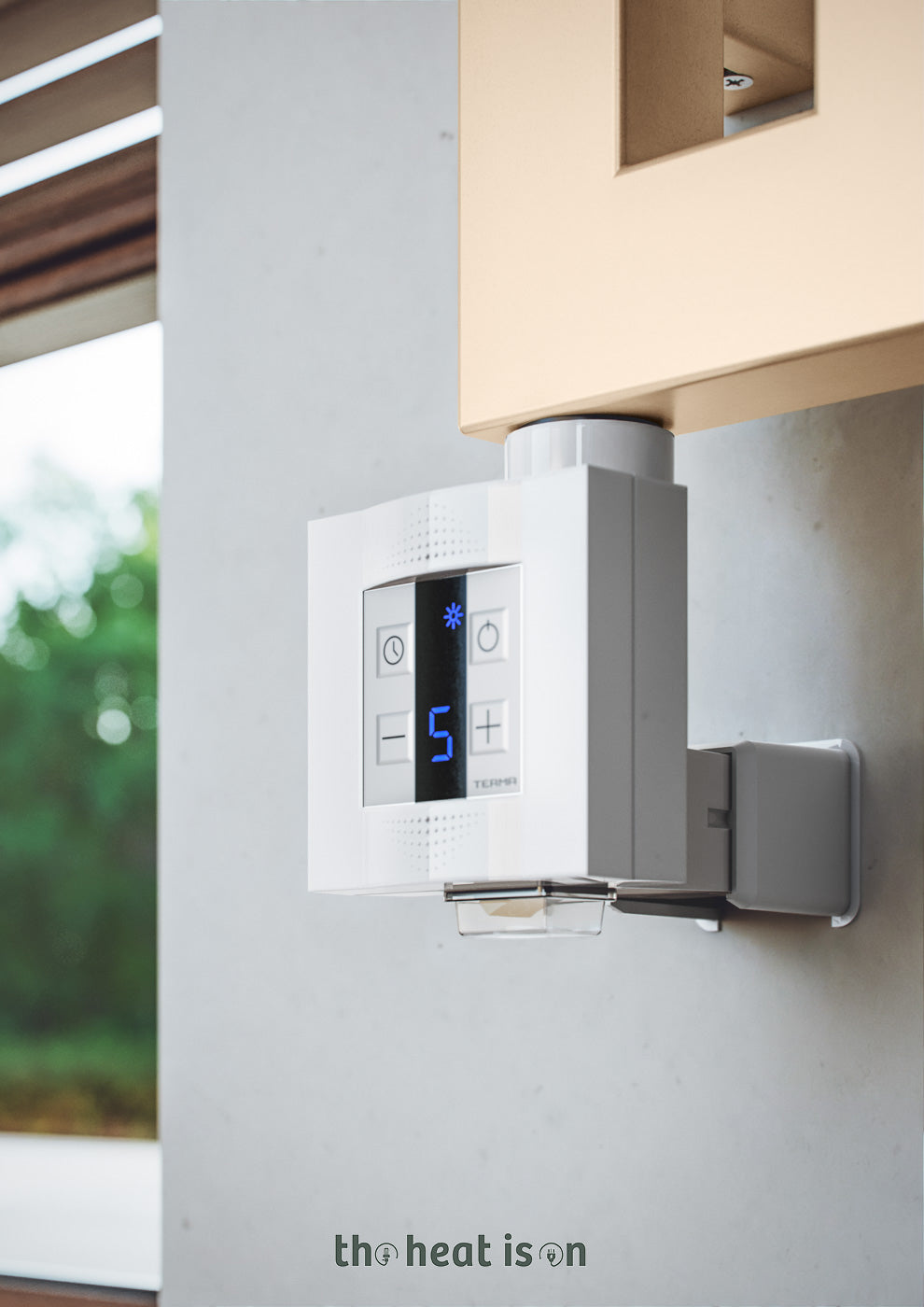

- The KTX 4 Square controller is supplied separately in the packaging – simple push-fit installation with adjustable viewing angle.
- Quick and easy installation – no commissioning or complex setup required.
- Manufactured from high-quality steel for long-lasting performance.
safety & compliance
- IPX5 rated – safe for use in bathrooms.
- Oil-filled for efficient, consistent heat distribution.
- Class 1 electrical appliance.
- UKCA approved.
guarantee & warranty
- 2-year manufacturer’s warranty (heating element).
- Usual lifespan of a heating element is 4 to 7 years dependent on use. The heating element can simply be replaced when this reaches end of life.
- 12-year manufacturer’s warranty (radiator).
