Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your tradesmen. Here we give you complete expert guidance for this dual fuel radiator — supplying all parts required — so you can ensure a smooth and successful installation when your tradesman arrives - note for dual fuel you may need both an electrician and plumber which is why you are best place to know what you need yourself in the case of dual fuel.

heat output

• Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size heated towel rail.
• As this is a dual fuel model you would work this out twice - once for central heating and then again for electric to ensure the respective outputs this rail gives match both requirements - use the central heating as the lead source and just closest match the electric output.

a complete dual fuel radiator : with all components included

• This is a complete dual radiator with everything you need to simply install it and set this up as dual fuel - no fuss, no mess.
• These are state of the art dual fuel radiators provided with the very best specialist dual fuel items for a high end looking finish - as often dual fuel installations can look cumbersome in comparison to this.
• You will receive all items as seen in the main images which includes:
  • ANGUS V designer radiator
  • UNICO specialist dual fuel valves
  • KTX 4 BLUE heating element
  • TS1 heating element probe

what is a dual fuel radiator?

• Dual fuel means you can run the same radiator in two ways — as electric via the use of a heating element in the summer (when you may only want to dry your towels or clothes) and as central heating in the winter (when the full system is on).
• The water inside the radiator comes from your central heating system as normal — when the main system is off this water will sit idle, and in the summer the element installed in the radiator will warm the water located inside just this towel rail. You can keep both of the valves open.
• If you want to learn more about dual fuel, read our dedicated dual fuel towel rail guide here.

the radiator

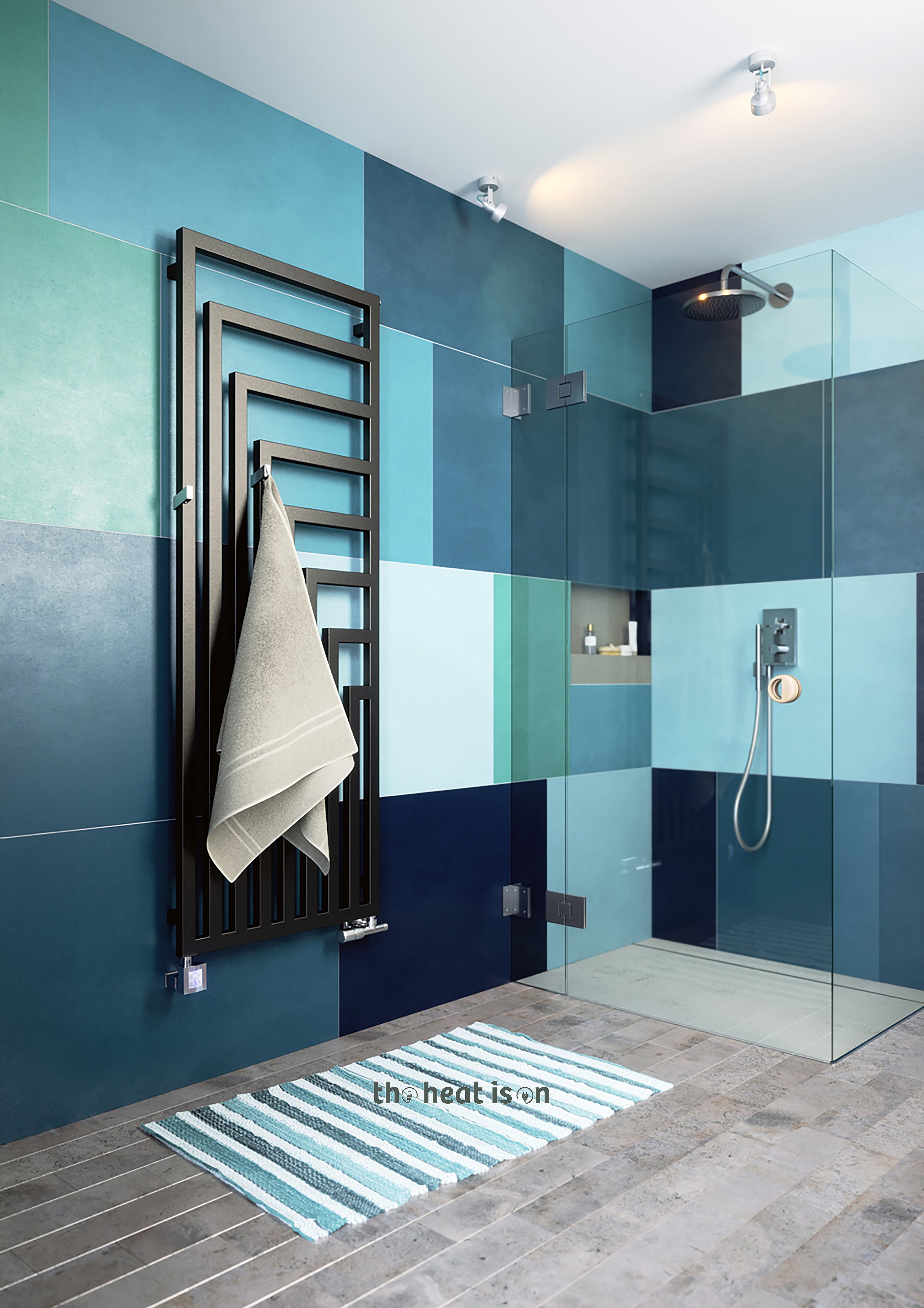

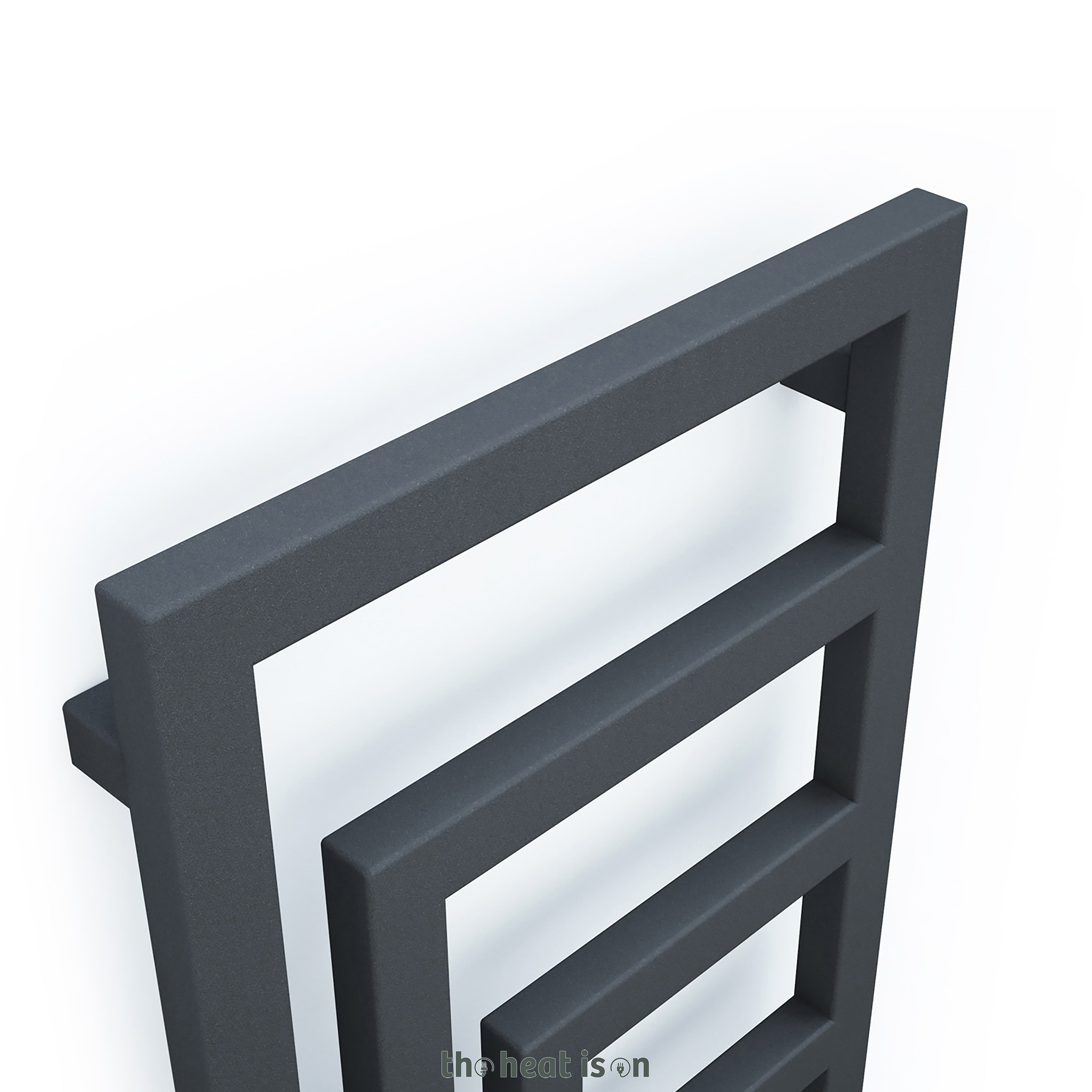

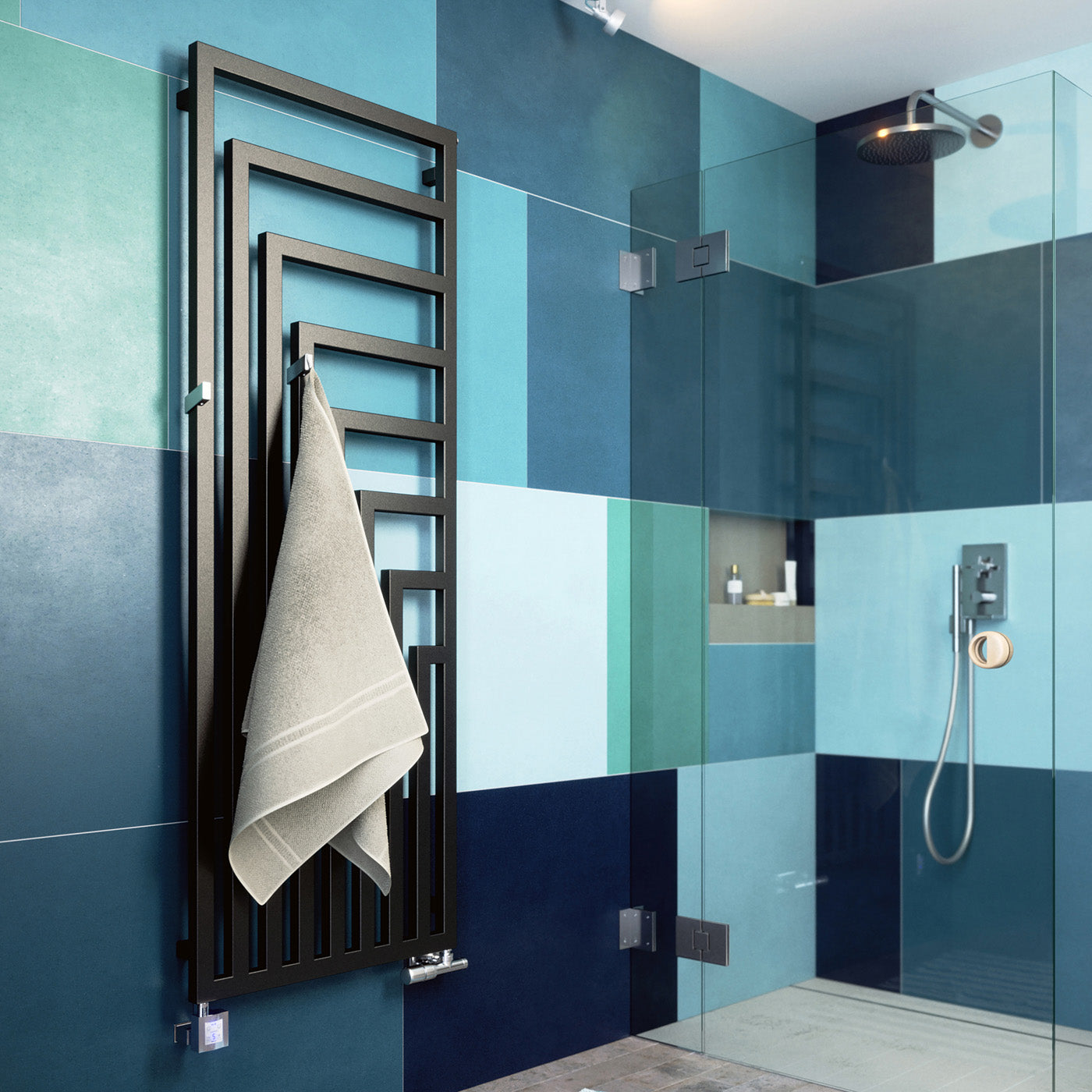

• ANGUS V is a distinctive linear design featuring rectangular bars arranged in ever-decreasing right-angle profiles.
• Sculptural appearance framed in a clean square profile — resembles modern wall art more than a traditional radiator.
• Ideal for both bathrooms and living spaces, offering a striking architectural statement.
• Wall brackets match the radiator’s colour and style, creating a seamless "floating" effect.
• Note: The hanger accessories pictured are not included and need to be bought separately.
• Made from low carbon mild steel.

the specialist dual fuel valve

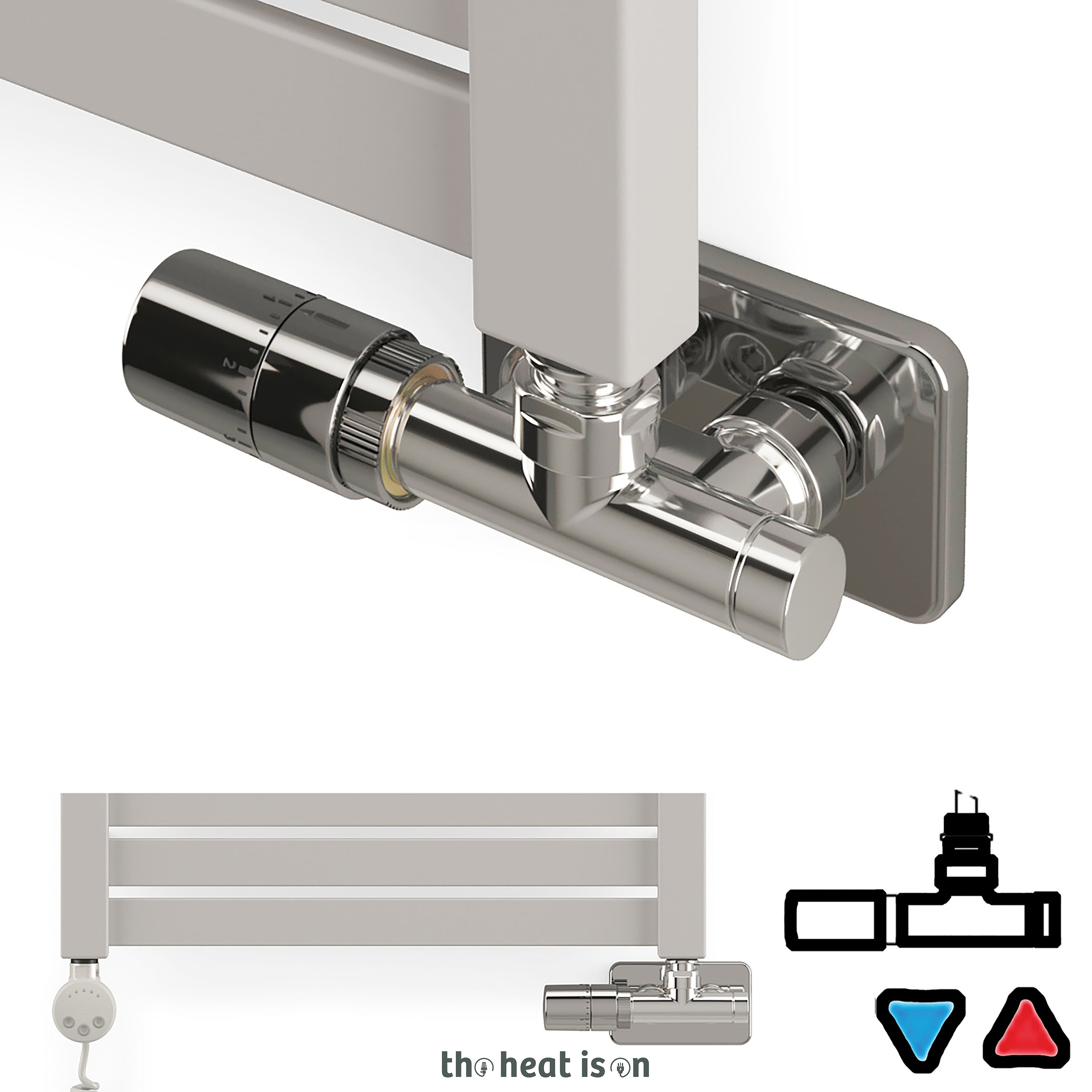

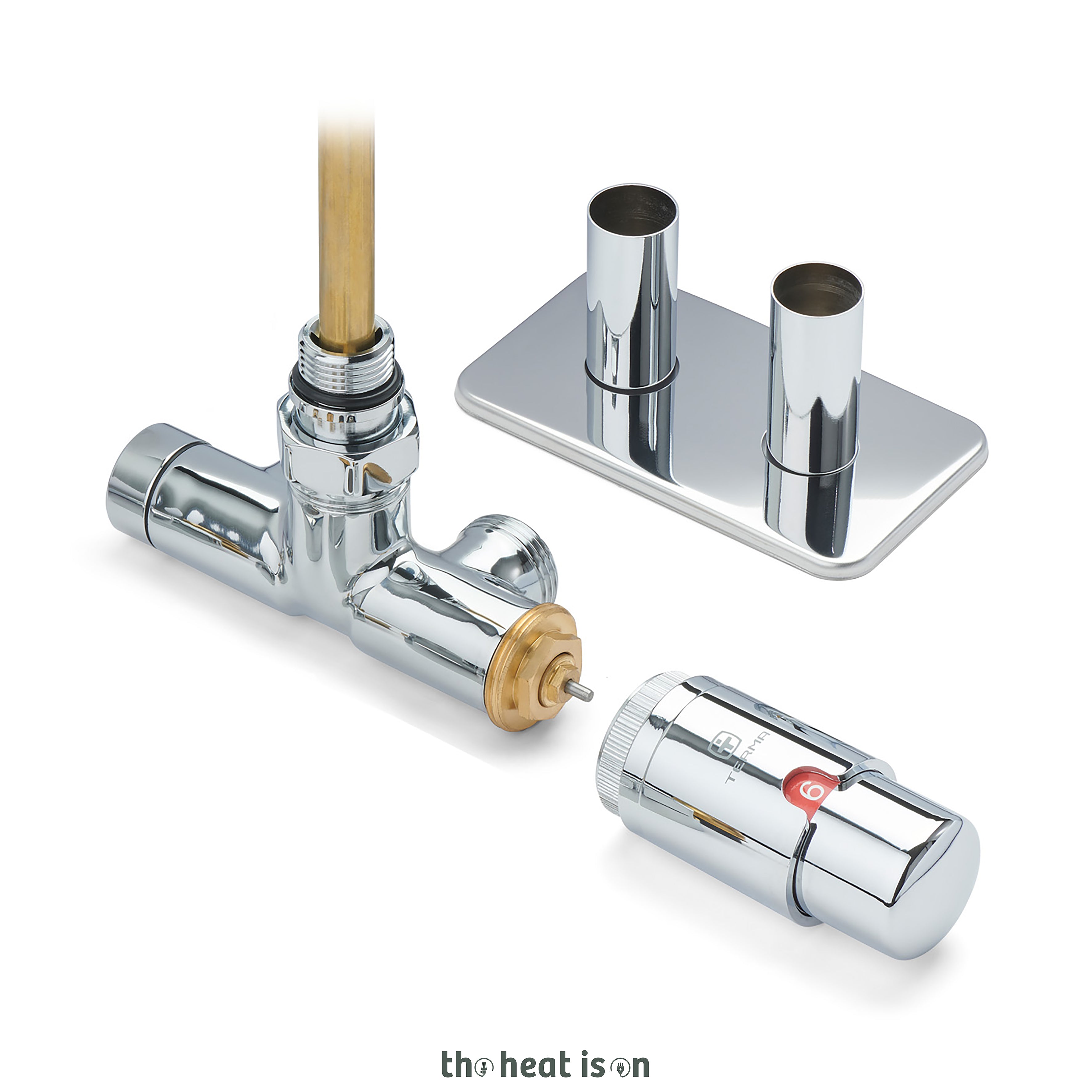

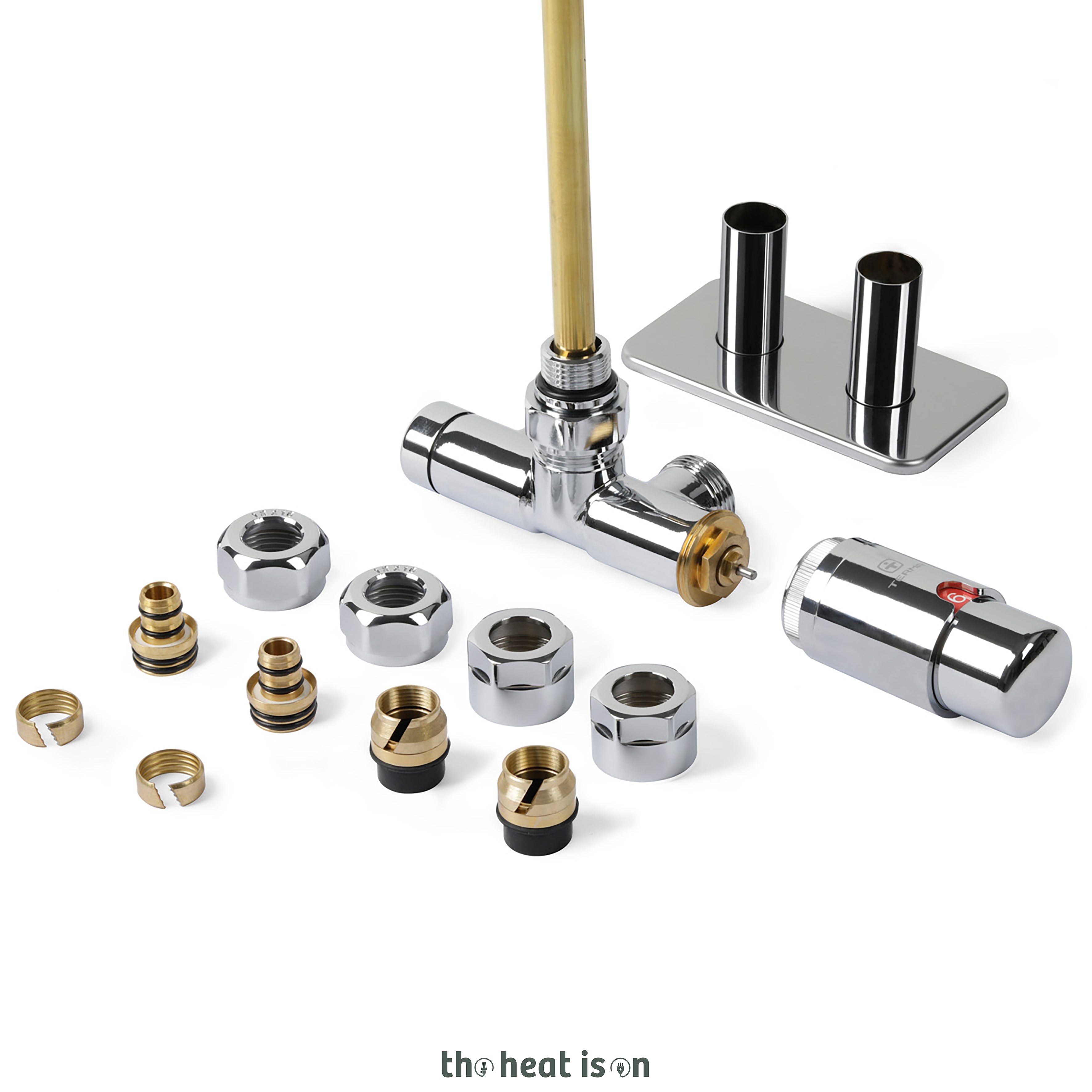

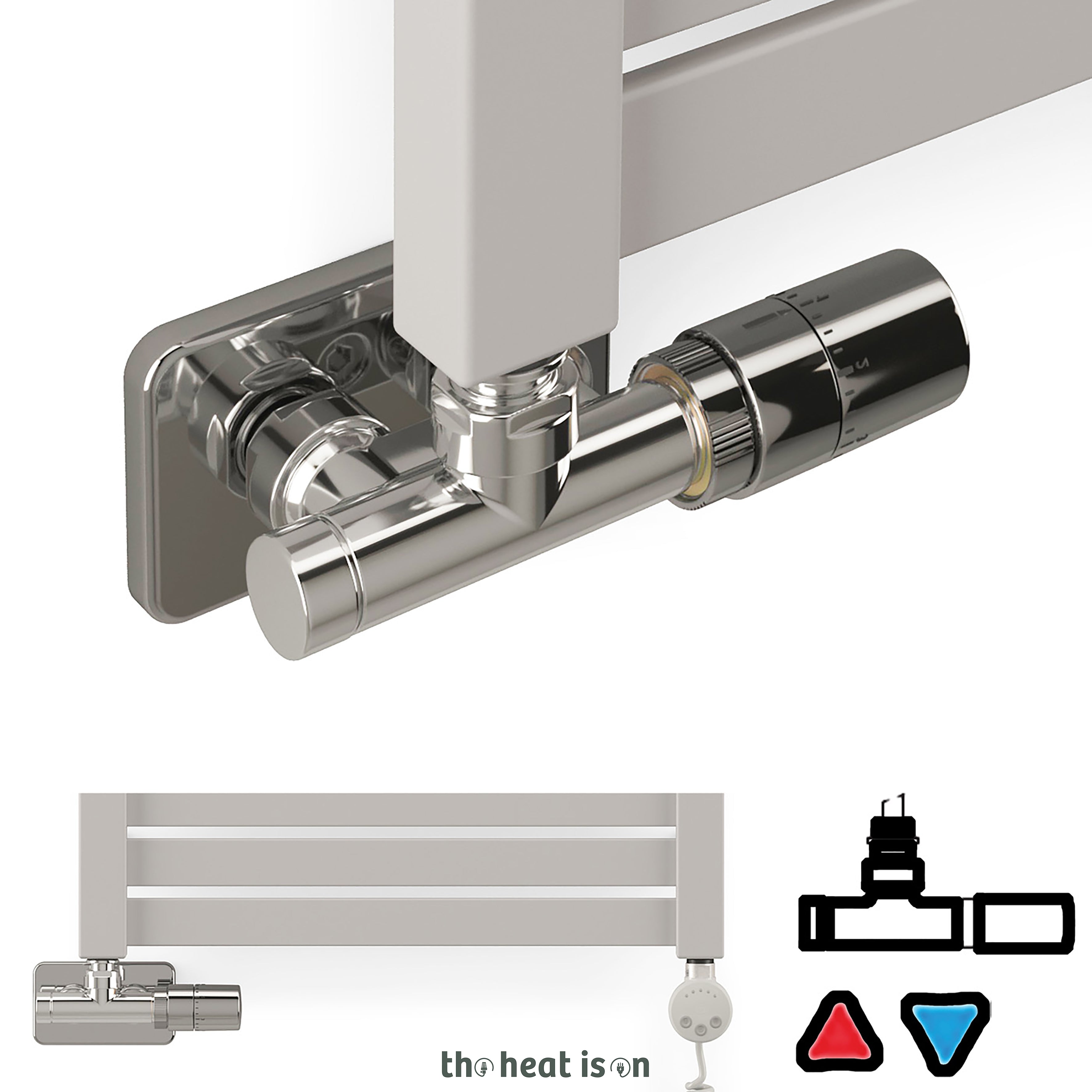

• This UNICO specialist dual fuel valve is the best valve to for a dual fuel towel rail as the flow/return is located on the same side of the radiator — leaving the opposing side free for the heating element (so no T-Piece is required, unlike a standard dual fuel set-up).
• The flow and return travel through the valve via the immersion tube: flow goes up the tube and the return comes back down the outside of the tube.
• Angled orientation.

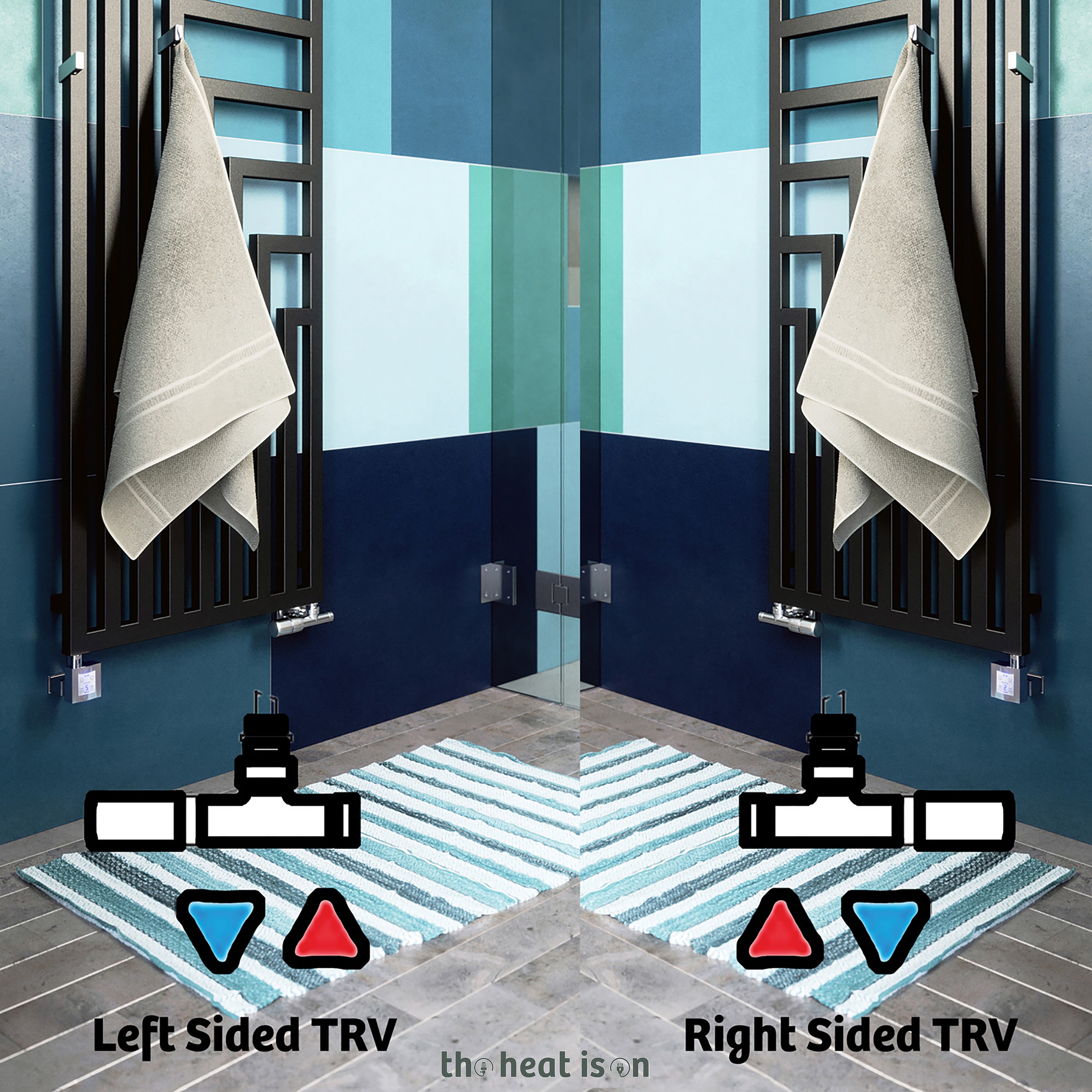

• Choose left or right side as you need for your specific installation.

the heating element

• The KTX 4 BLUE is a detachable controller which powers the TS1 probe, forming a complete and reliable heating element and allowing easy maintenance and replacement of the probe without removing the entire unit.
• Provides a choice of internal temperature regulation (30°C to 60°C) or ambient room temperature regulation (15°C to 30°C).
• Regulates the internal temperature and displays this clearly on the integrated screen.
• Includes a 7-day timer for flexible scheduling of heating cycles and energy efficiency.
• Features a 2-hour drying function for convenient towel or laundry drying.
• Features four easy-to-use buttons: Power, Drying Function, and Temperature + / -.
• Offers full operational control via smartphone or tablet through Bluetooth connection, compatible with the Terma BLUE-Line App for iOS and Android devices.
• On-device and remote control options give users flexibility and convenience.

element - masking

• This element is supplied with the masking cover - which conceals the wire up to the entry point into the wall, providing a neater, tidier appearance.
• Important note: Masking requires the wall to be trowelled out; if walls or tiles are already finished - and you would prefer this without masking - please contact us and we can special order that version for you.

element specifics

• Compact dimensions: 82.5mm length from thread down and 67mm wide square-shaped face.
• Internal probe lengths vary by wattage — see the diagram in the image gallery.
• Straight cable supplied, no plug.
• IPx5 rated, making it safe for use in bathroom environments.
• Class 1 device meeting electrical safety requirements.
• Lot20 Eco-design Directive compliant, with adaptive start control for efficient energy use.

colour & finish

• Heated Towel Rail is Painted in Metallic Black.
• Finished in a matt, rough texture.
• This is a standard powder paint.
• A 150×50mm colour chip of this finish is available to purchase for preview.
• Additionally, we have created a detailed technical guide on paint finishes and colours, giving even more information and tips.
• The element is in a chrome with a grey cable.

safety & compliance

• Fully built and tested to EN442 standards and UKCA certified.
• Heat outputs are independently verified by an external testing house to ensure accuracy.

guarantee & warranty

• Rail: 12-year manufacturer’s warranty for long-term reassurance.
• Element and Valve: 2-year manufacturer’s warranty.
