Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your plumber. Here we give you complete expert guidance for this specific heated towel rail — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.

the brands

• This is a DQ heated towel rail.
• It will be electrified by TERMA by filling this with heating oil and then fitted with a TERMA heating element

important notes: stock availability

• This electric towel rail is made up of components which are all carried in UK stock.
• We list this as electric towel rail as "in stock" but this is dependent on each of the component part being in stock. These are assembled to order and we don't stock them assembled.
• If you place an order and one of the components are out of stock we shall contact you to advise and offer a substitute where possible.
• Check for Yourself: Each component part has a live stock update, so if you'd like to check each part is showing as in stock - here are links to each item - this will help you to know this is in stock prior to you placing an order.
  • TESORO MATT BLACK 800x500 RAIL
  • MOA 300w BLACK ELEMENT

heat output

• Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size heated towel rail - in terms of the BTUs heat output it gives.

design & material

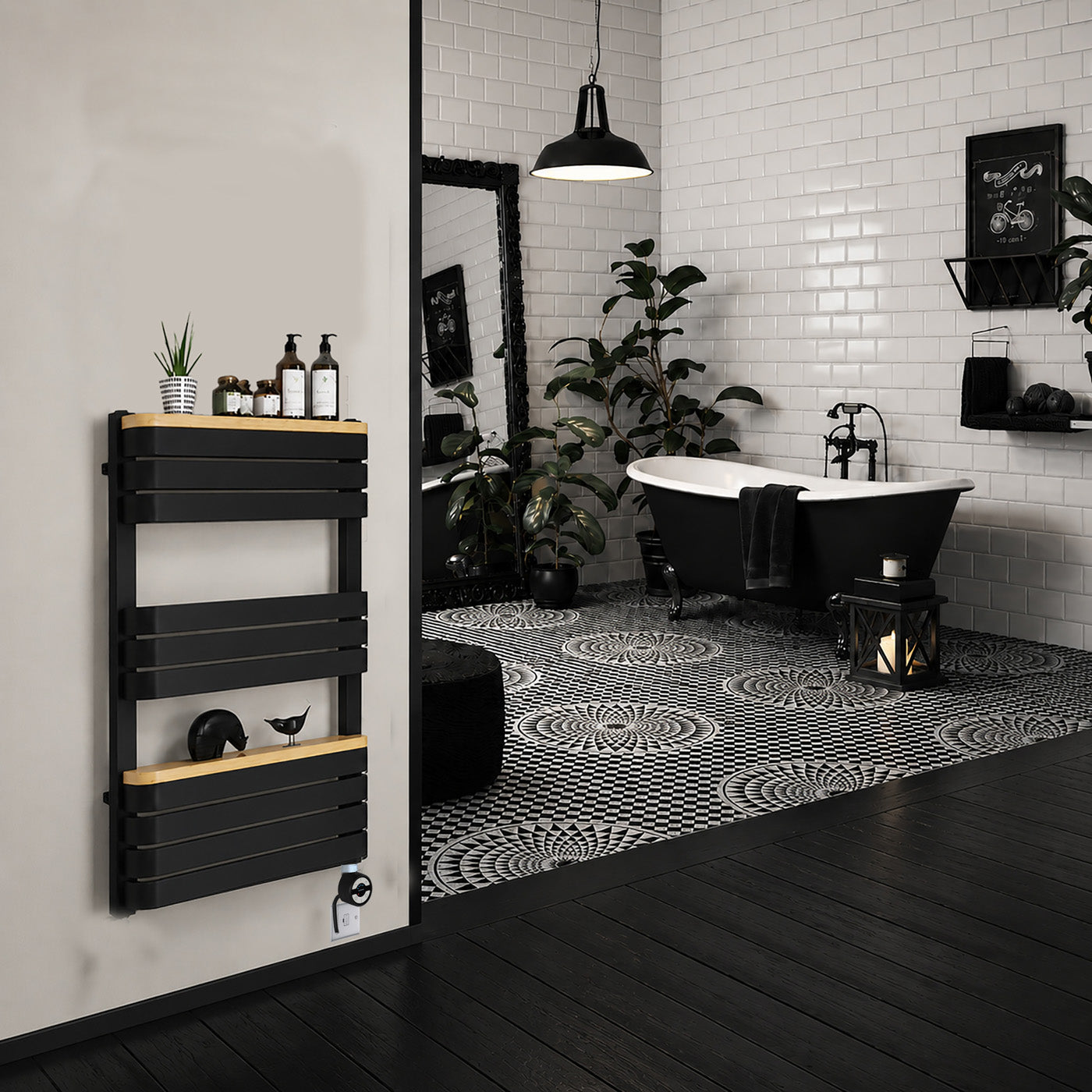

• With its eye-catching sleek curves and high output, the Tesoro towel rail is a harmonius blend of style and practicality. The Tesoro is available in both central heating and electric.
• TESORO is designed with single-layered bars.

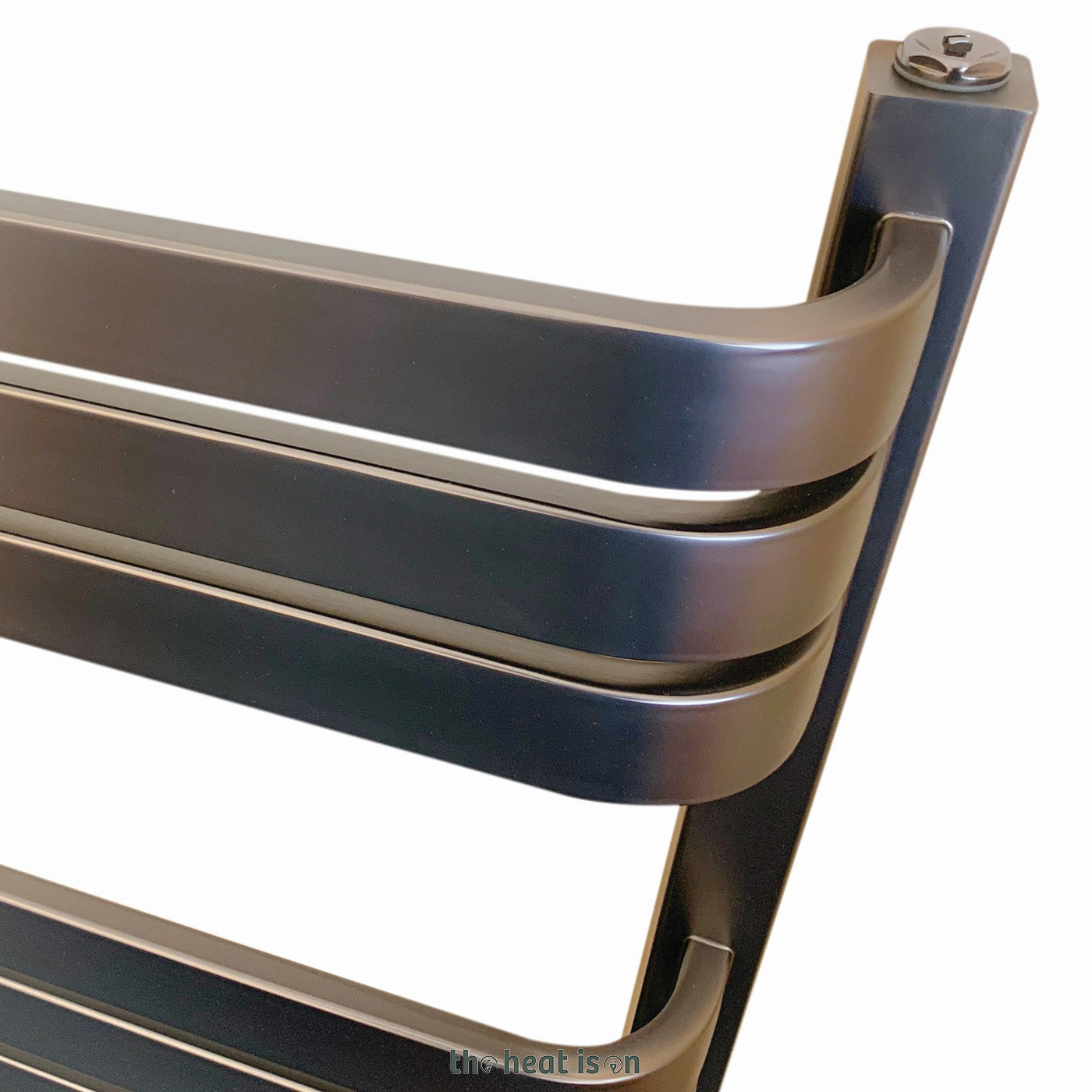

• The bars have a delicate curve at either end and the bats protrude forward from the uprights.
• TESORO is very stylish in its construction, with neat rectangular uprights that complement the flat rectangular shape of the bars.
• TESORO has a much larger surface area compared to many standard ladder-type rails — so the colour stands out far more as a feature in the bathroom.
• Additionally, we have created a thorough and detailed technical guide on electric towel rails, giving even more information and tips.

optional wooden shelves

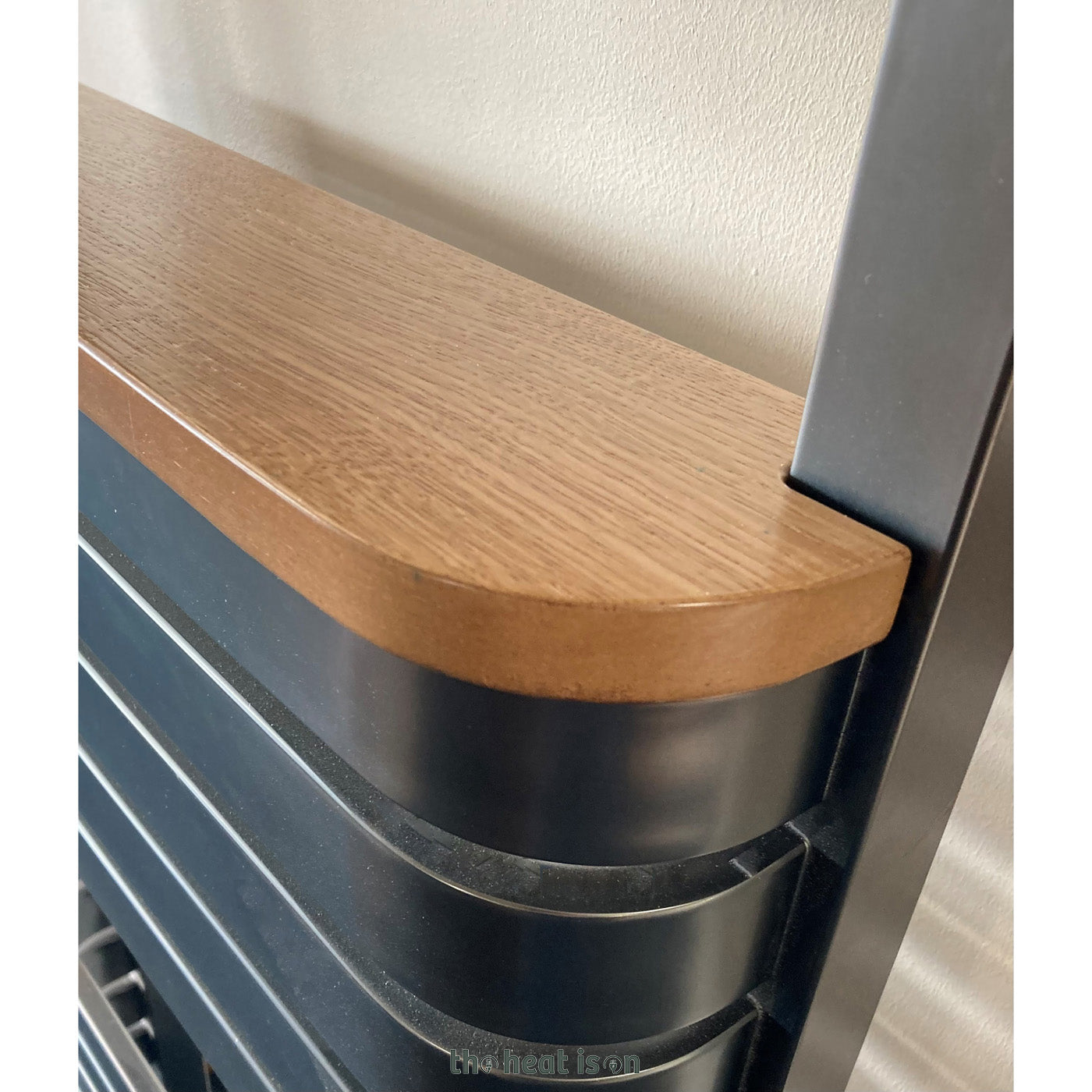

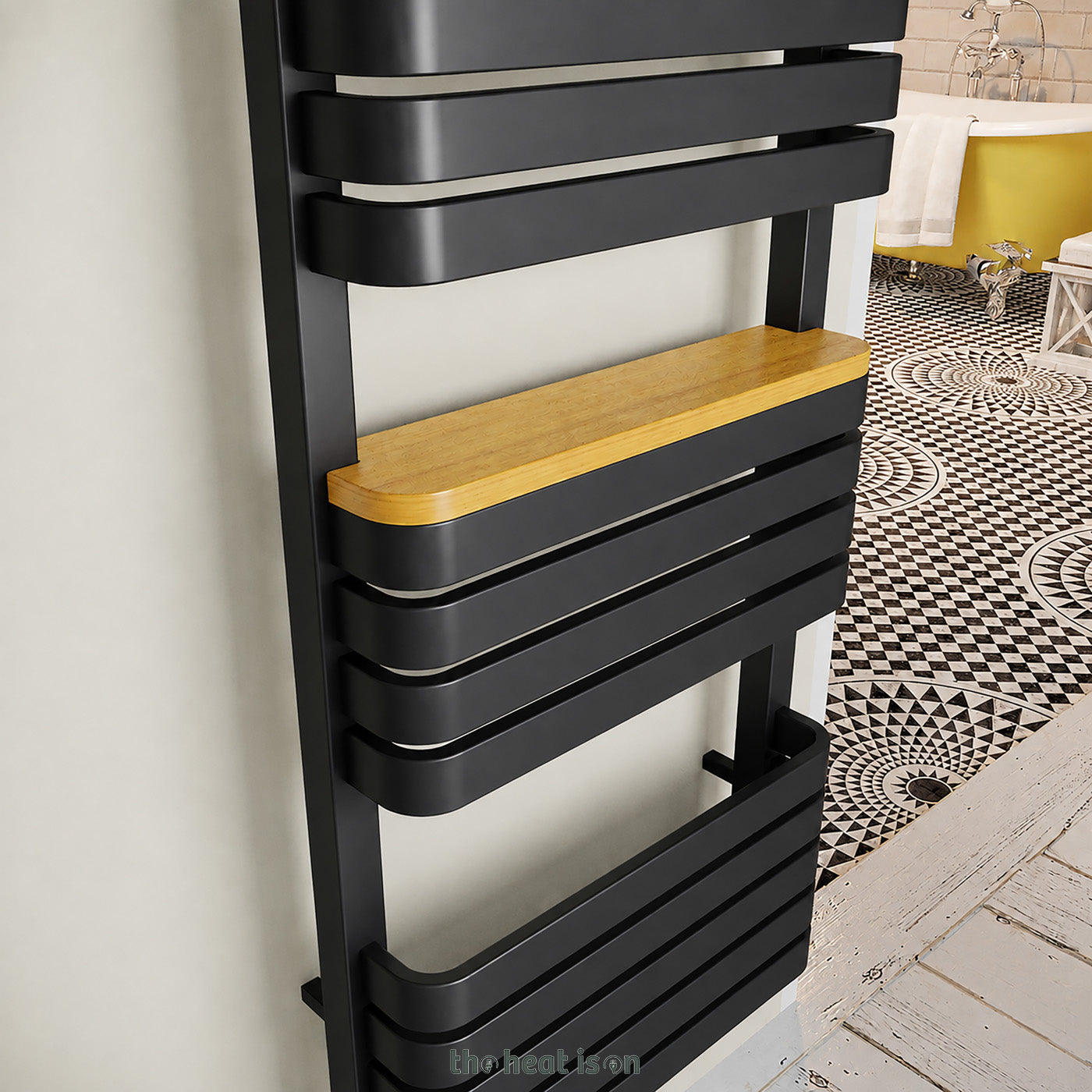

• Wooden veneer oak shelf are available for Tesoro, allowing you to turn the towel rail into a stylish and functional storage feature.

• Ideal for storing towels, toiletries, or decorative items in your bathroom, utility room, or kitchen.
• PLEASE NOTE: Shelves are sold separately and must be purchased in addition to the TESORO towel rail - it is not supplied with any shelves as standard. Link to self can be found on the right hand side of the page.

control & functionality

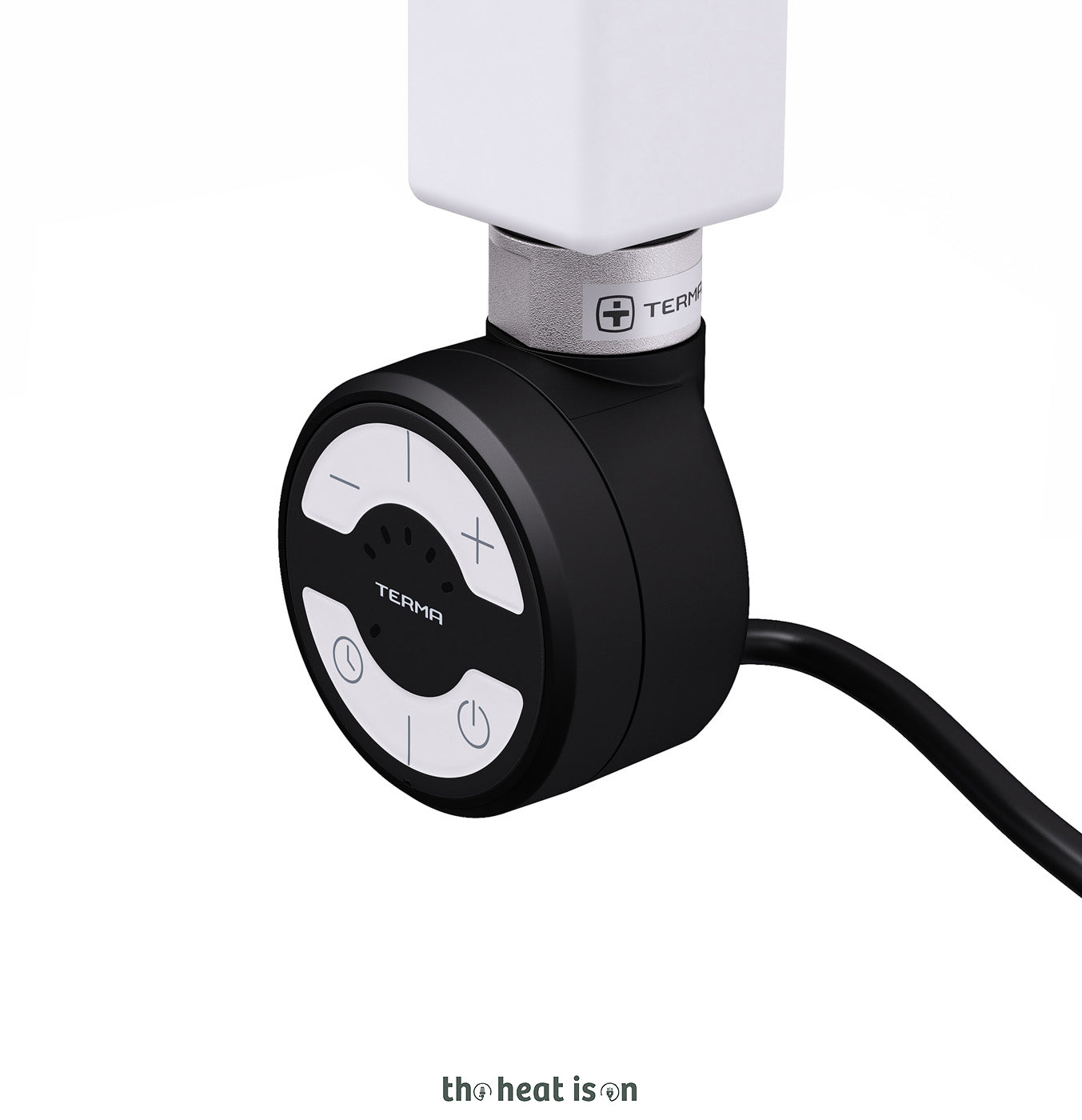

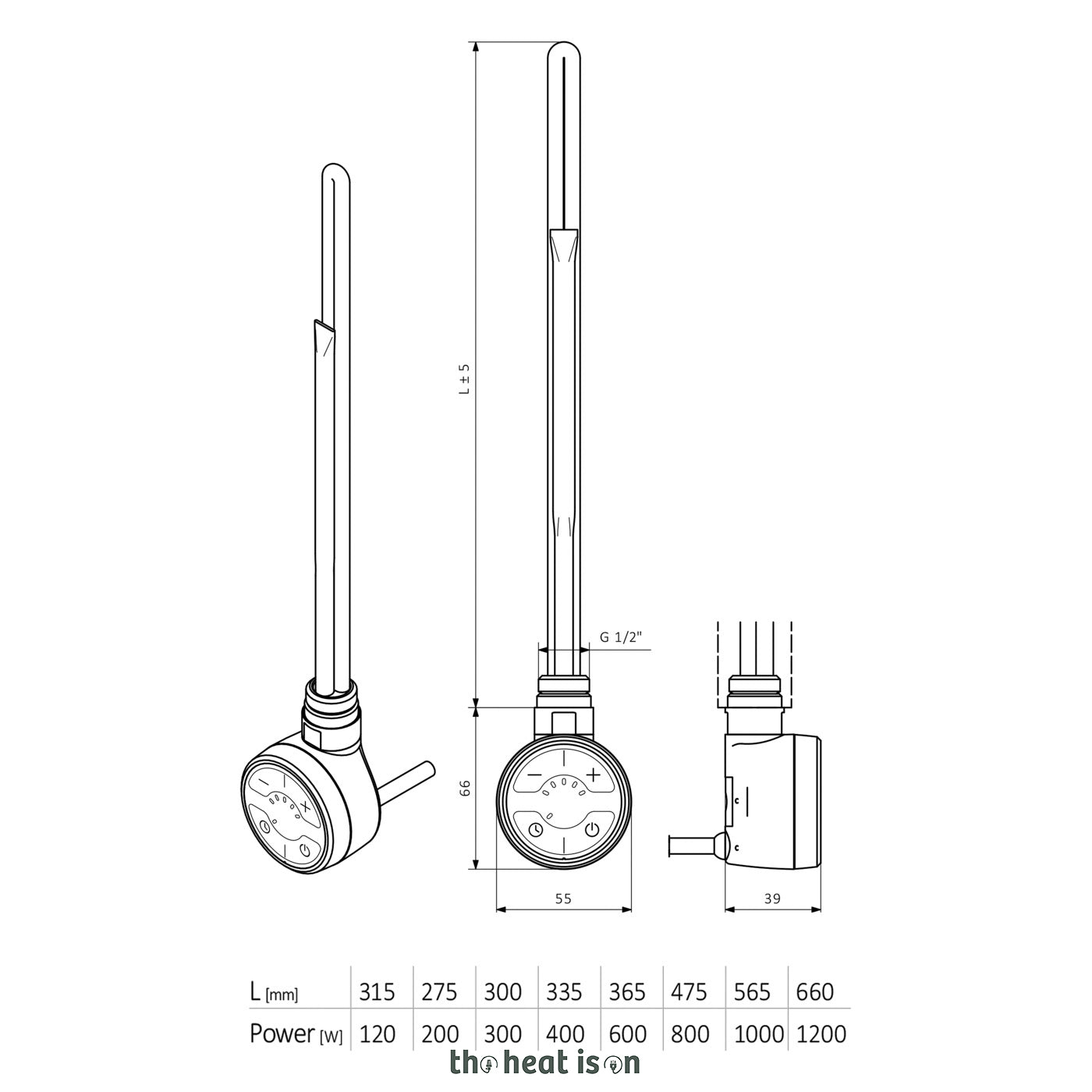

• Supplied with the Terma MOA heating element.
• Full operational control via the 4 buttons: Temp +/-, Drying Function, Power
• 5 heat settings (30°C to 60°C) regulating the internal radiator temperature, denoted by 5 LEDs
• 2-hour drying function for quick and efficient towel drying
• Compatible with an external timer, retaining settings when switched off
• No built-in timer
• If you wish to control the maximum surface temperature of the towel rail (for example, to safeguard children), this element can be programmed to limit output:
  • The 30°C to 60°C internal range is divided across 5 LED settings in 7.5°C increments.
  • LED 1 = 30°C, LED 2 = 37.5°C, LED 3 = 45°C, LED 4 = 52.5°C, LED 5 = 60°C.
  • You can cap the maximum temperature (e.g. LED 2 = 37.5°C) so it cannot be increased beyond that level.
  • Instructions for this are included in the printed manual.
  • Alternatively, consider contacting us to special order this model with the 43D, which is pre-set to 43°C for a safe low surface temperature without reprogramming.
• Looking for a heating element that automatically turns off (ideal for hotels or homes where you're conscious about energy use)?
  • We offer two alternatives designed for timed operation - both of which you can contact us to special order this model with either of the elements inside instead:
  • TDY – runs for 1, 2, or 3 hours, then switches off automatically, with adjustable temperature settings.
  • DRY – runs for 1–5 hours, auto shut-off, and pre-set to 45°C.

colour & finish

• Painted in RAL 9005 Ultra Matt Black.
• Finished in a matt, smooth texture.
• This is a standard powder paint.
• Additionally, we have created a thorough and detailed technical guide on paint finishes and colours giving even more information and tips.

installation & features

• The element can be fitted on the left or right hand side as you prefer (as it is not on a pre-determined side like with the E1 or E8 connection).
• The heating element is supplied separately and your electrician will simply turn the radiator upside down to insert the element on the chosen side.
• Think about where your electric supply will be so the wire has the shortest distance to travel.
• Quick and simple installation; no commissioning required.
• This MOA heating element is not supplied with a plug - so must be connected to a switched fused spur - or you can mount a plug. If you'd like a model pre-fitted with a plug, look at the Wi-Fi options as the VEO elements are pre-fitted with a UK plug.

safety & compliance

• IPX5 rated – safe for use in bathrooms.
• Oil-filled for efficient, consistent heat distribution.
• Class 1 electrical appliance.
• UKCA approved.

guarantee, warranty and replacing the heating element

• 2-year manufacturer’s warranty with TERMA (heating element).
• Usual lifespan of a heating element is 4 to 7 years dependent on use.

• 5-year manufacturer’s warranty with DQ (radiator).
• the heat is on will handle all warranty requests with both manufacturers on your behalf.
