Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your plumber. Here we give you complete expert guidance for this specific valve set — so you source all parts needed to ensure a smooth and successful installation of your radiators when your tradesman arrives.
design & material

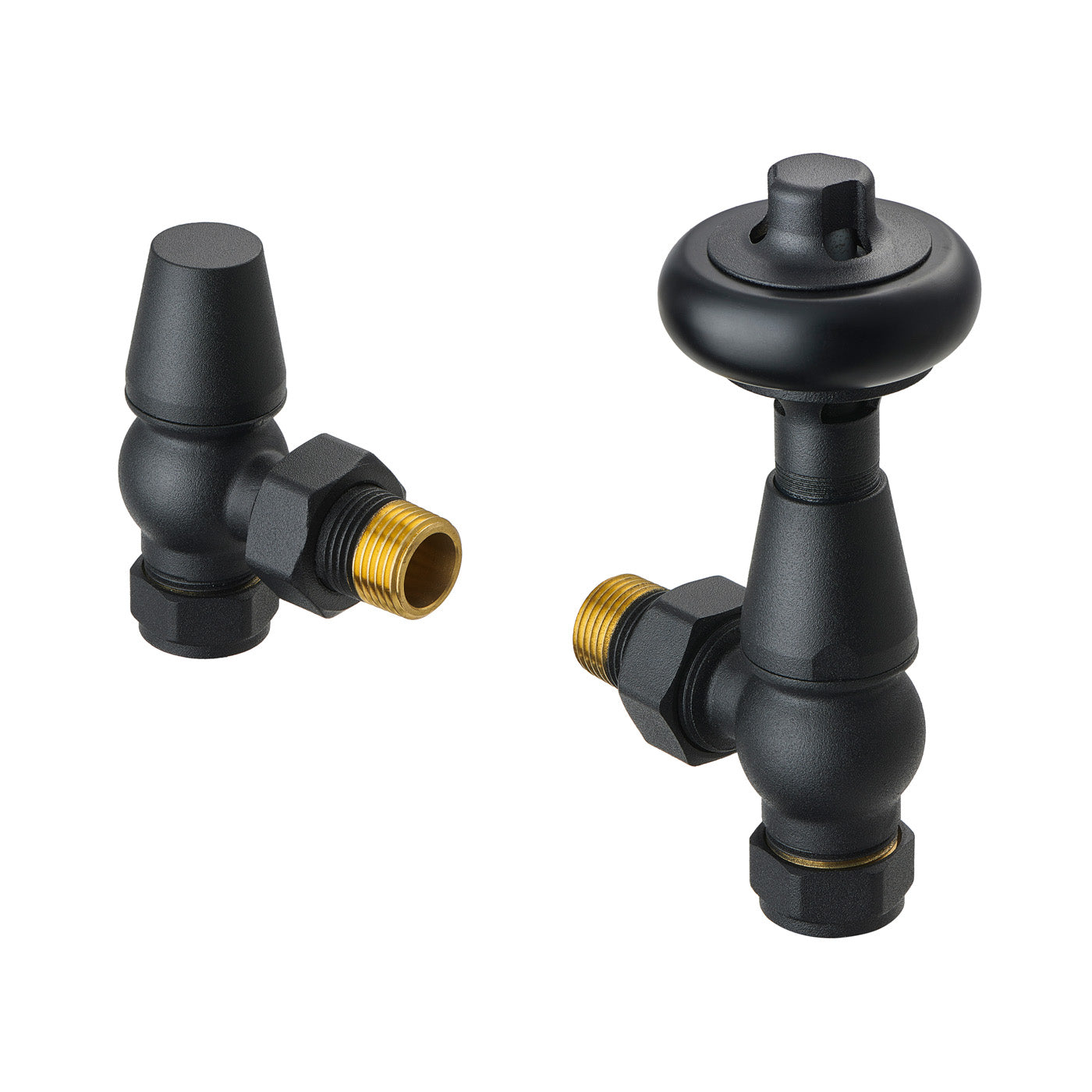

- Heavyweight brass, traditional, period style, Thermostatic Radiator Valve (TRV) and Lockshield set.
- Valve to Radiator: ½” BSP Coupler. Valve to Pipe: 15mm Compression. Max Operating Pressure 10 bar. Max Operating Temp 110°C.
- Cartridges can be swapped from each body to change the flow and return side, as these valves are non bi-directional; a bypass valve can also be used to prevent radiator hammer.
- Available in smooth, rough textured, and antiqued copper finish.

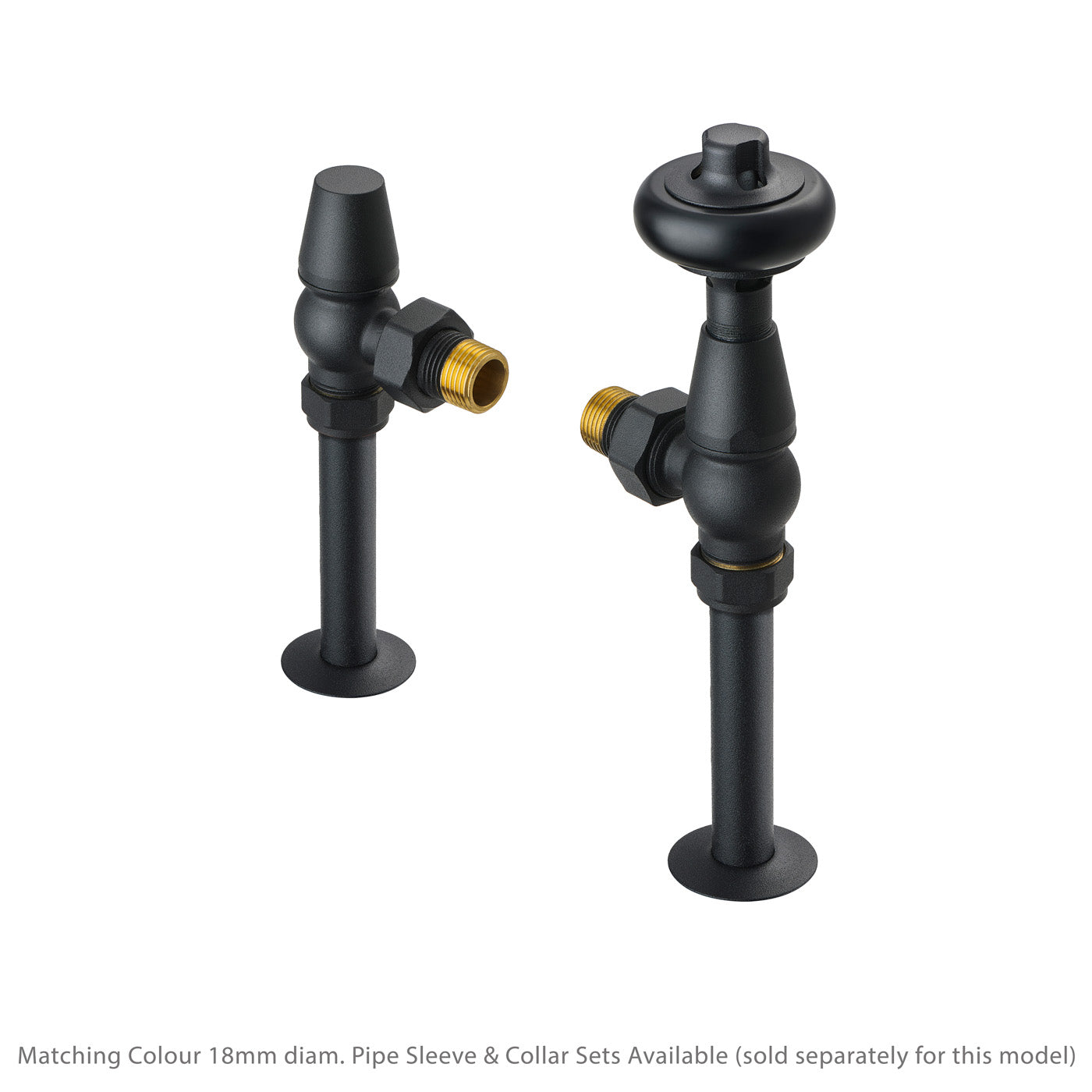

- Matching colour pipe sleeve and collar sets are also available to couple with these valves.
- Designed to complement period properties and traditional interiors, ideal for use with column radiators and classic-style heating systems.
function & compatibility
- Mechanical thermostatic operation regulates radiator output based on room temperature.
- Adjusts water flow to maintain a consistent level of heat.
- Compatible with standard radiator connections and 15mm pipework.
installation
- Supplied as a complete installation kit — no additional fittings required.
- Cartridges can be swapped between bodies to change the flow and return side.
- These valves are non bi-directional; if the flow is fitted on the lockshield side in error, a bypass valve can be fitted to prevent radiator hammer.
box contents
- 1x Traditional brass TRV valve body
- 1x Traditional brass lockshield body
warranty & compliance
- Manufactured to meet UK and EU plumbing regulations.
- 2-year manufacturer’s warranty for peace of mind.
