Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your electrician. Here we give you complete expert guidance for this specific electric radiator — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.
heat output
- Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size electric radiator - in terms of the Watts / Kilowatts heat output it gives.
design & material

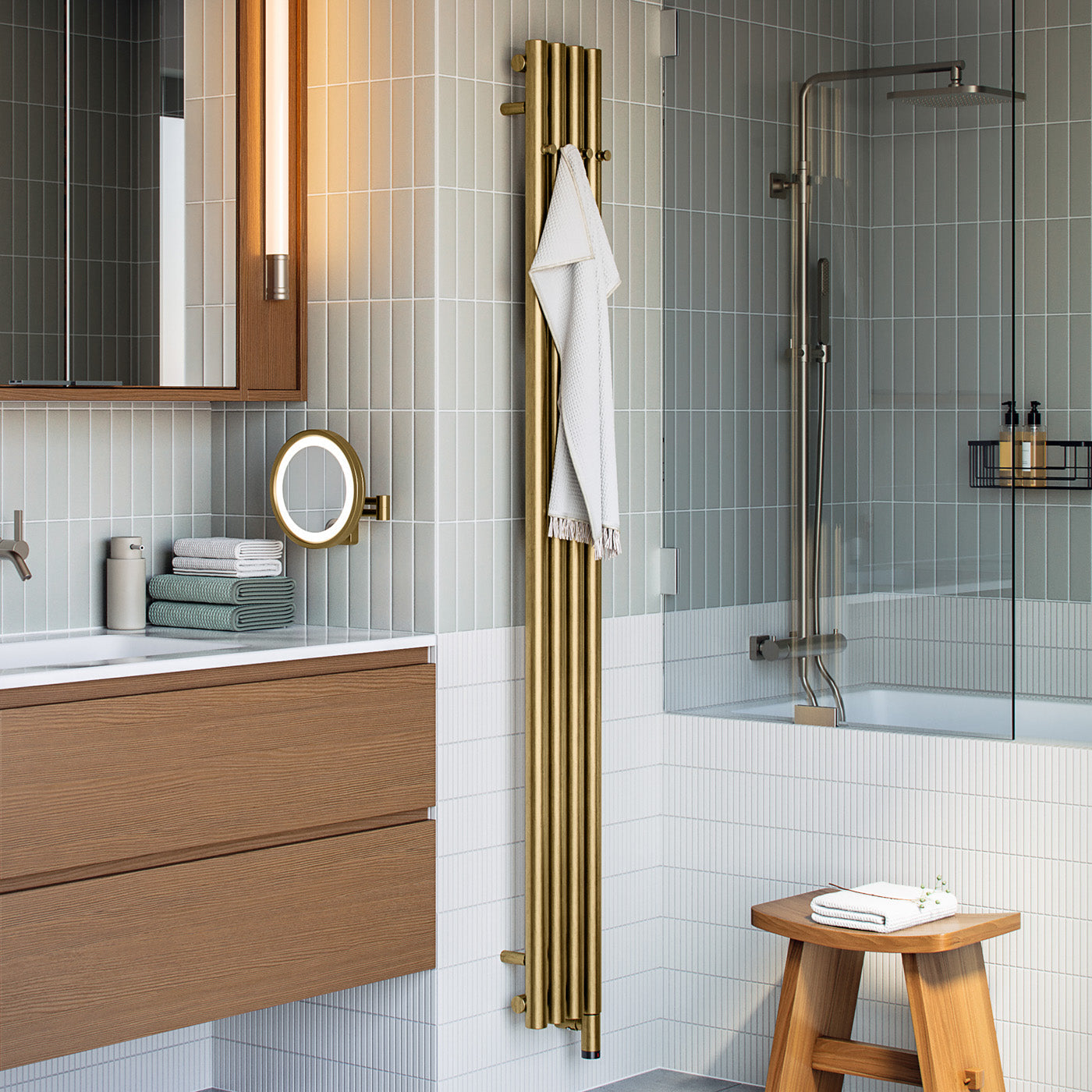

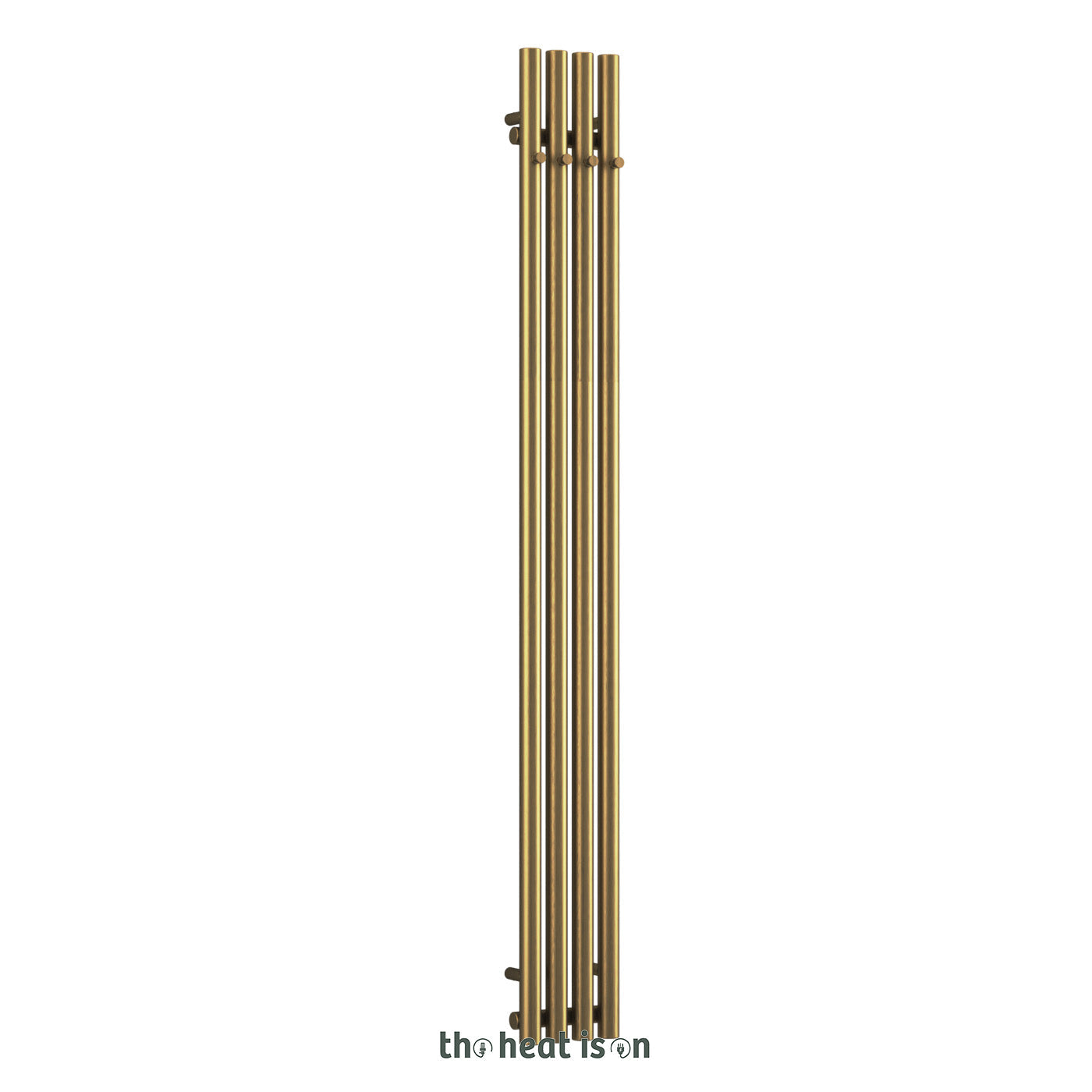

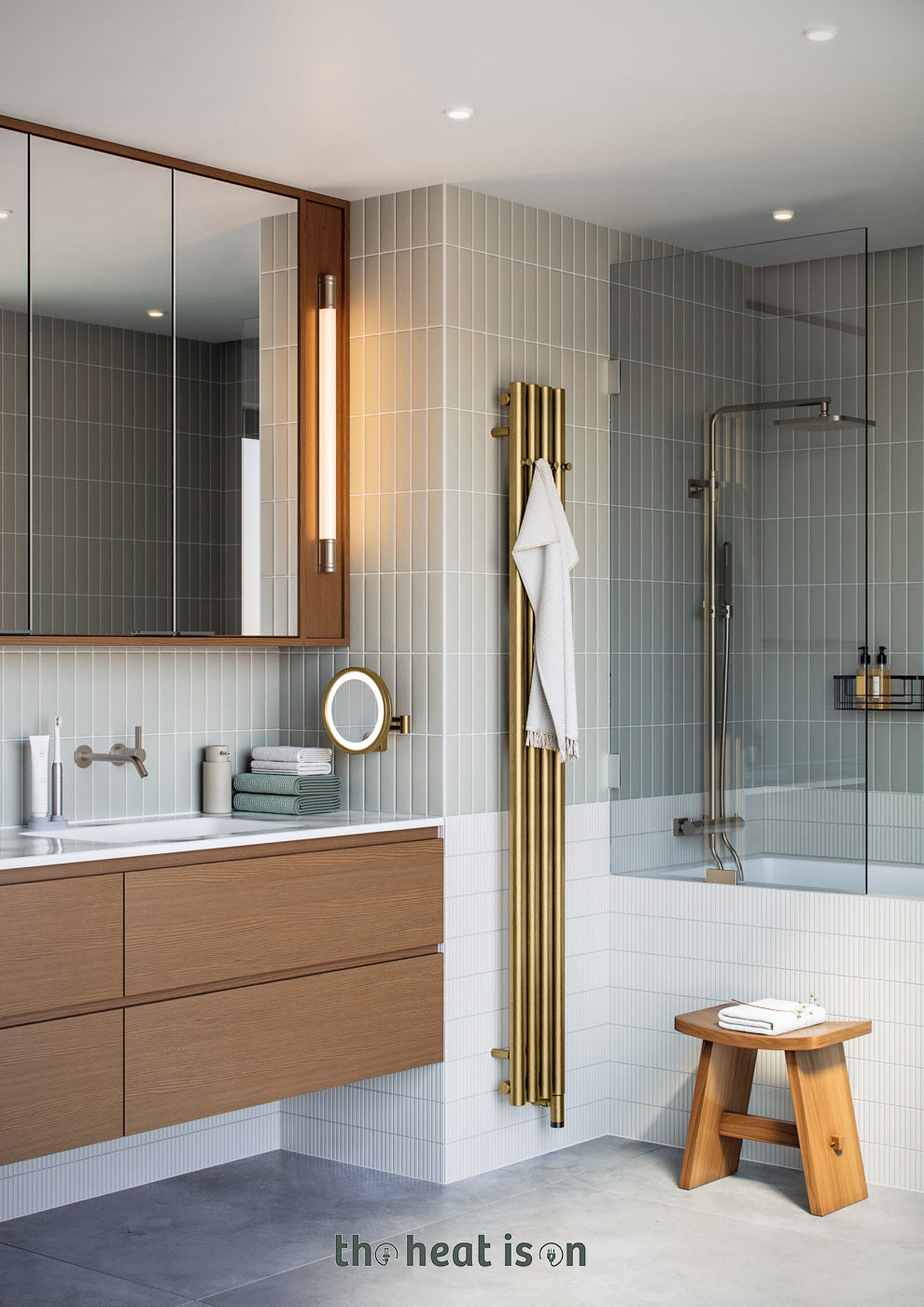

- ROLO HANGER E is a vertical radiator constructed from solid round 40mm diameter tubes for a bold, modern appearance.

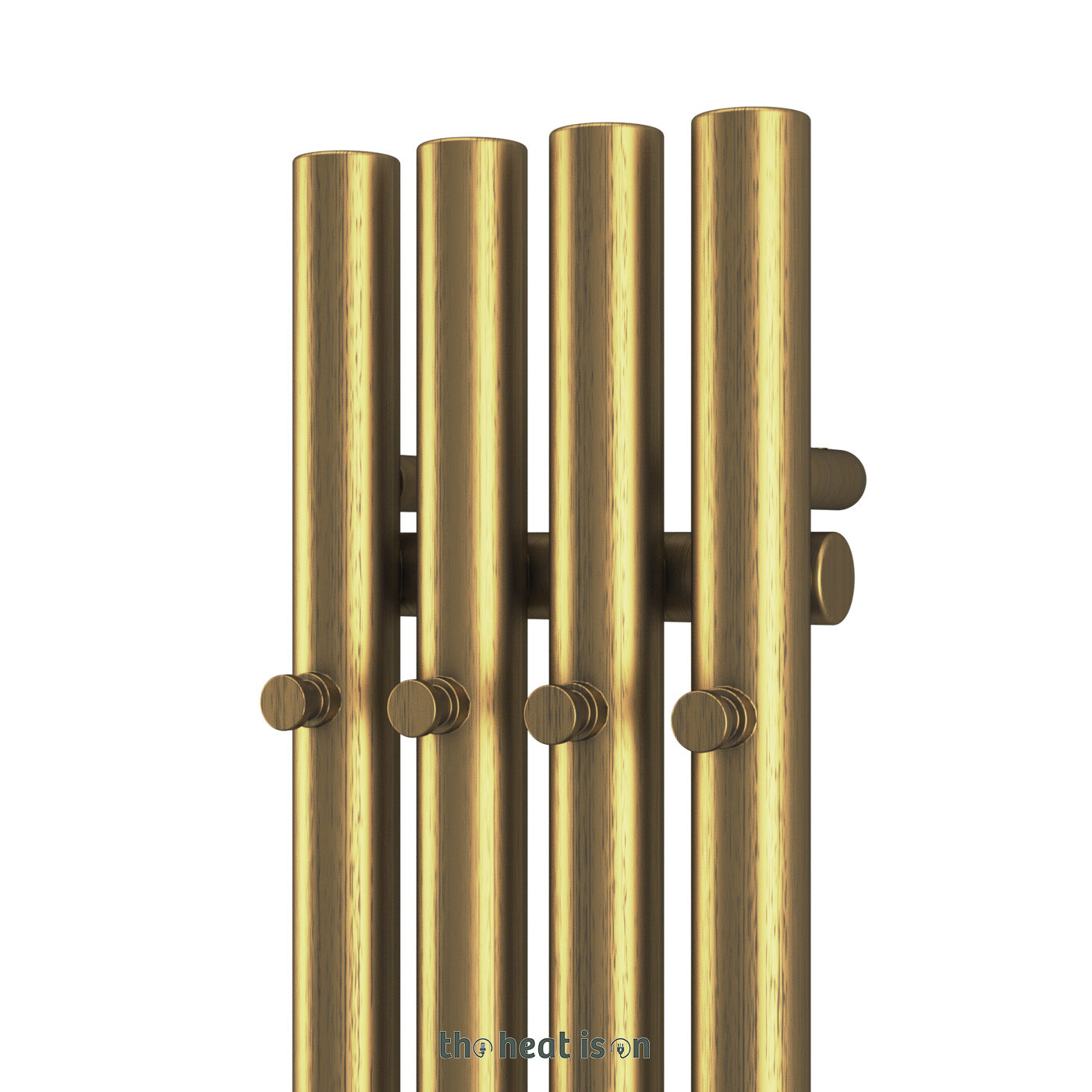

- Integrated built-in hangers add extra functionality – perfect for bathrooms, cloakrooms, or dressing rooms due to the built-in hangers on every bar.
- Model is identical in design to the ROLO ROOM E, but the ROLO HANGER E features the additional hangers on every bar for maximum versatility.
- Slim, space-saving design available in multiple widths, perfect for both large and compact spaces.
- The external ONE heating element supplied has matching profile and colour to the radiator for a seamless look.
- This is a Vertical radiator; it cannot be installed horizontally.
- Additionally, we have created a thorough and detailed technical guide on electric radiators, giving even more information and tips.
full range of sizes available
- In addition to the sizes we are displaying here on the heat is on - you can view the full range of 28 different sizes of ROLO HANGER E here on the Terma website.
- We can process a special order for any size you wish to purchase if that size is not shown on our website.
control & functionality
- Uses the Terma ONE external heating element.
- Element includes a masking cover supplied at the correct length for the radiator (medium length).
- Masking cover suitable for radiators with wall to centre of inlet of 70–88mm (ROLO HANGER E wall to centre of inlet is 77mm).
- Two heat settings: 45°C and 60°C, indicated by multi-coloured LED.
- 2-hour drying function for convenient timed heating.
- Compatible with external timers, retaining settings when switched off.
- Infrared (IR) receiver for use with Terma TTIR portable thermostat / controllers or DTIR wall mounted controllers (sold separately).
- Accurate internal temperature regulation for consistent heating performance.
colour & finish
- Painted in Blackened Brass (premium wet paint) (also known elsewhere as Brushed Brass - but we changed the name to Blackened Brass as a clearer definition of the colour).
- Finished in a metallic, smooth texture.
- The Blackened Brass colour from Terma has a matt, smooth texture with brass undertones with black brush marks overlay.
- This is a premium wet paint which is painted using a hand finished liquid paint (as opposed to an automated powder paint - so this paint is more expensive). This creates a deeper more metallic type finish.
- Note: If you don't have the budget for a premium wet paint - the closest colour match to this colour in a powder paint would be the Halo colour - which is not quite a brass and a slightly darker gold (and does not have the black over pattern) - this will cost the same as the standard powder colours (approx 25% less). You'll need to call us to request this colour as we don't list this model in Halo on the website yet.
- A 150×50mm colour chip of this finish is available to purchase for preview (link to colour chip will be on right-hand side of page).
- Additionally, we have created a thorough and detailed technical guide on paint finishes and colours giving even more information and tips.
installation & features

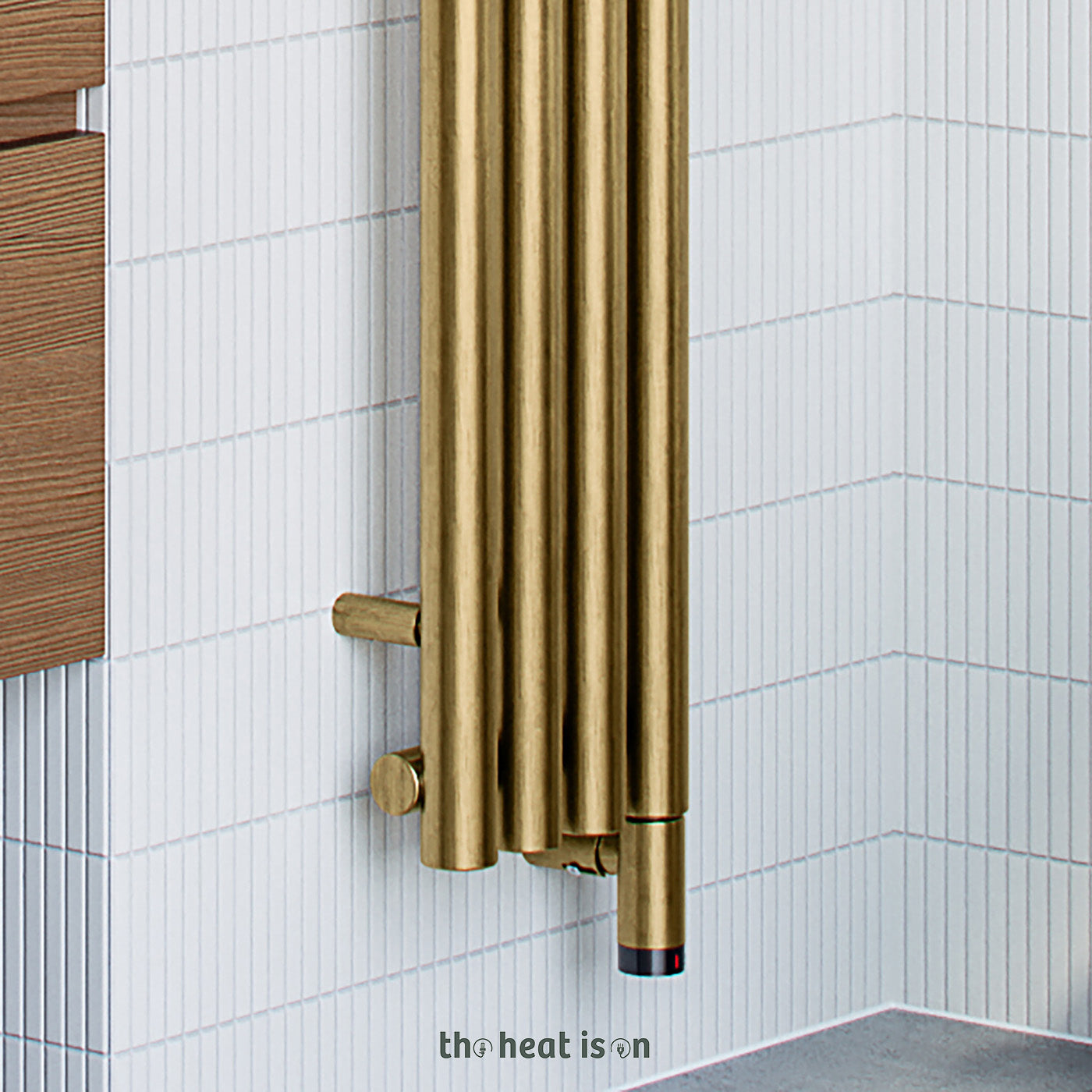

- Element is pre fitted inside the radiator - located on the right hand side (E8 connection). If you would like the heating element on the left hand side (E1 connection) please contact us to place this as a special order. Think about where your electric supply will be so the wire has the shortest distance to travel.
- Control button discreetly located on the underside, with a miniature front-facing LED panel.
- Supplied with 1.5m cable for connection to a fused spur (no plug included).
- Quick and simple installation; no commissioning required.
- This Infrared heating element is not supplied with a plug - so must be connected to a switched fused spur - or you can mount a plug. If you'd like a model pre fitted with a plug look at the Wi-Fi options as the VEO elements are pre fitted with a UK plug.
safety & compliance
- IPX5 rated – safe for use in bathrooms.
- Oil-filled for efficient, consistent heat distribution.
- Class 1 electrical appliance.
- UKCA approved.
guarantee & warranty
- 2-year manufacturer’s warranty (heating element).
- Usual lifespan of a heating element is 4 to 7 years dependent on use. The heating element can simply be replaced when this reaches end of life.
- 12-year manufacturer’s warranty (radiator).
