Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your electrician. Here we give you complete expert guidance for this specific electric towel rail — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.

heat output

• Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size electric radiator - in terms of the Watts / Kilowatts heat output it gives.

design & material

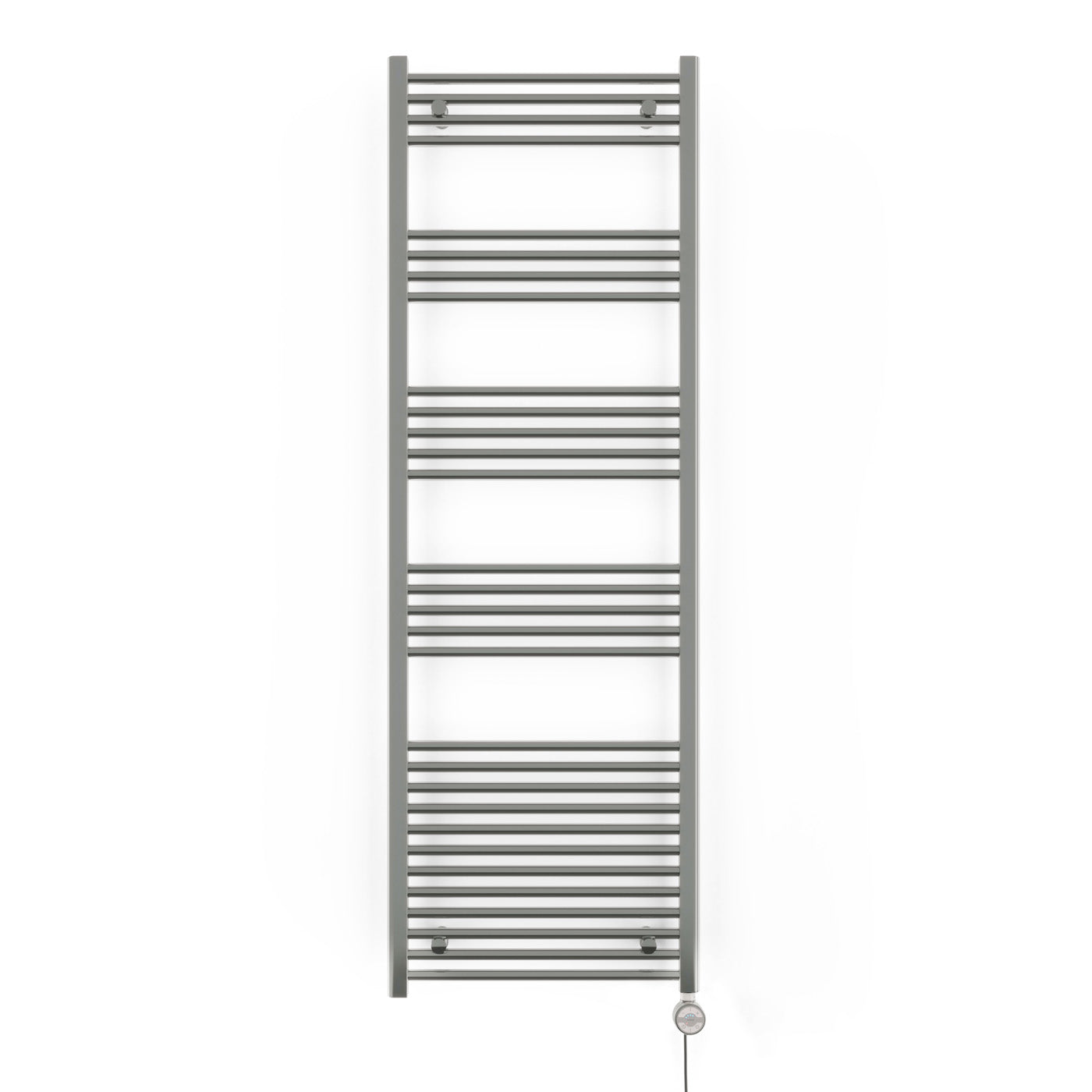

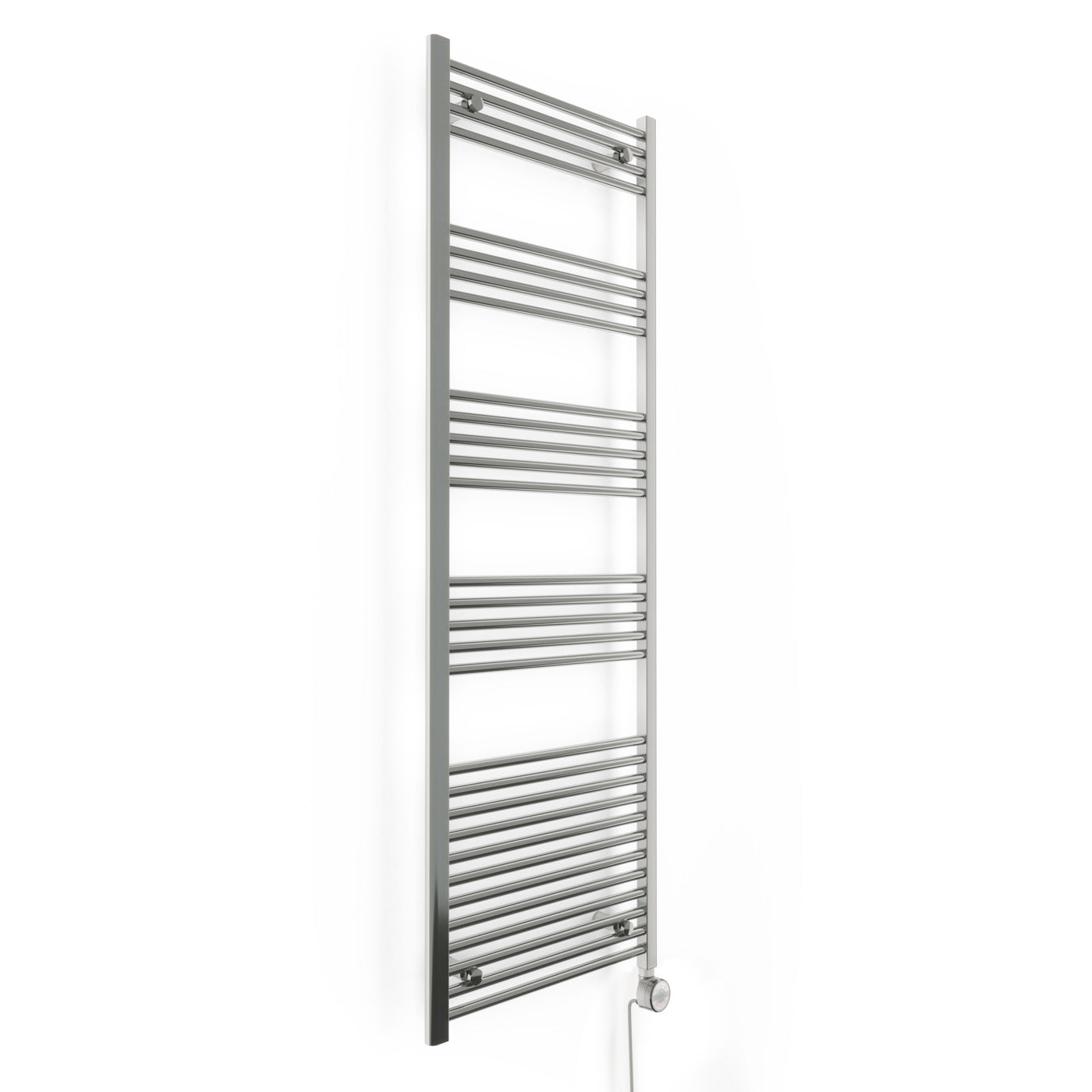

• LEO E is a standard chrome ladder rail widely available on the market, but the LEO E range is offered as electric with a choice of 5 different heating element options, allowing you to tailor how it works to suit your needs.
• Most chrome electric ladder rails like this only come with one entry-level heating element, which is what sets the LEO apart.
• LEO E features 22mm diameter bars — be mindful of models with bar diameters less than 20mm, which restrict heat output due to reduced surface area and less heating medium (oil) inside.
• Made from low carbon mild steel.
• Additionally, we have created a thorough and detailed technical guide on electric radiators, giving even more information and tips.

control & functionality

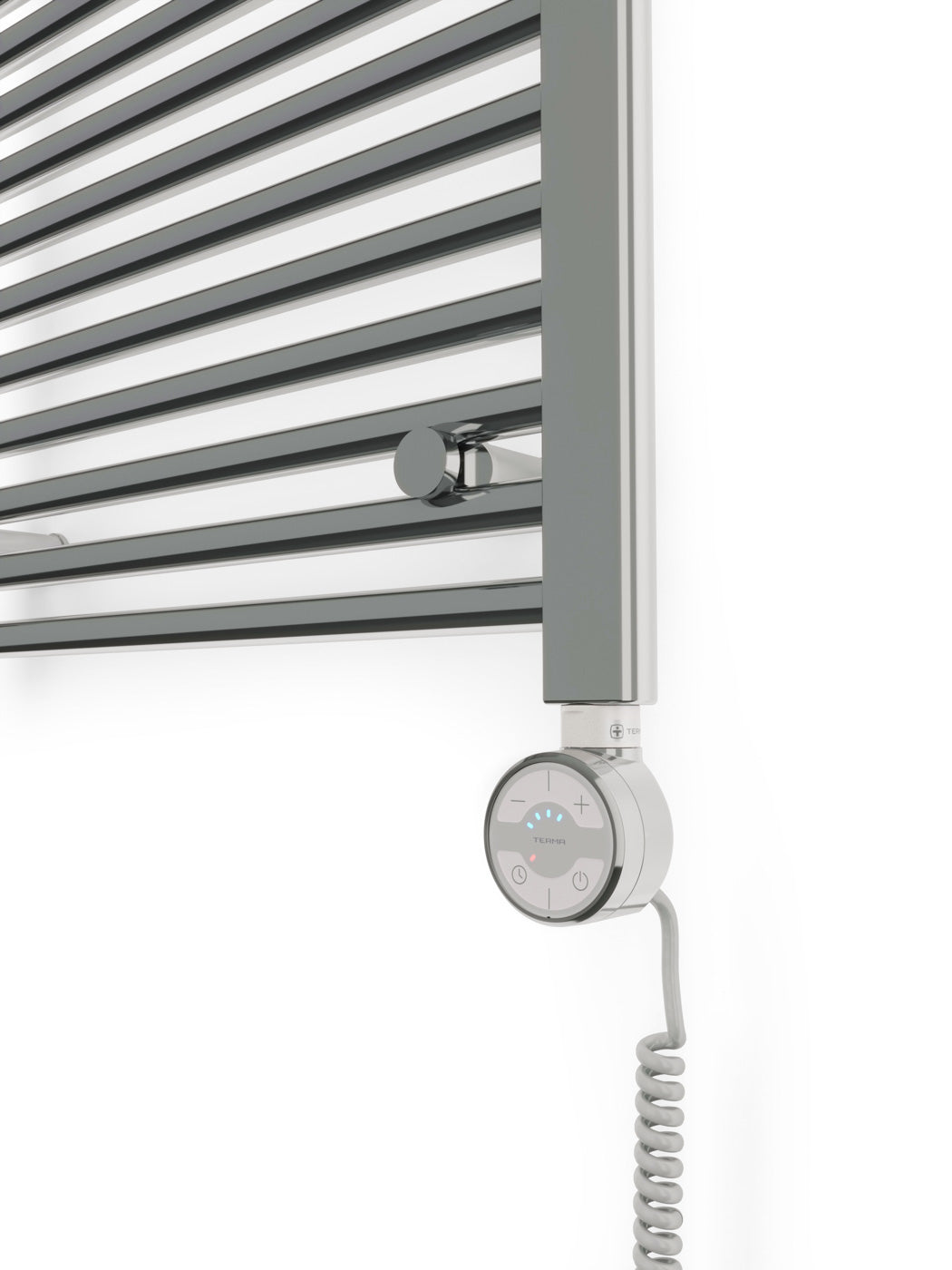

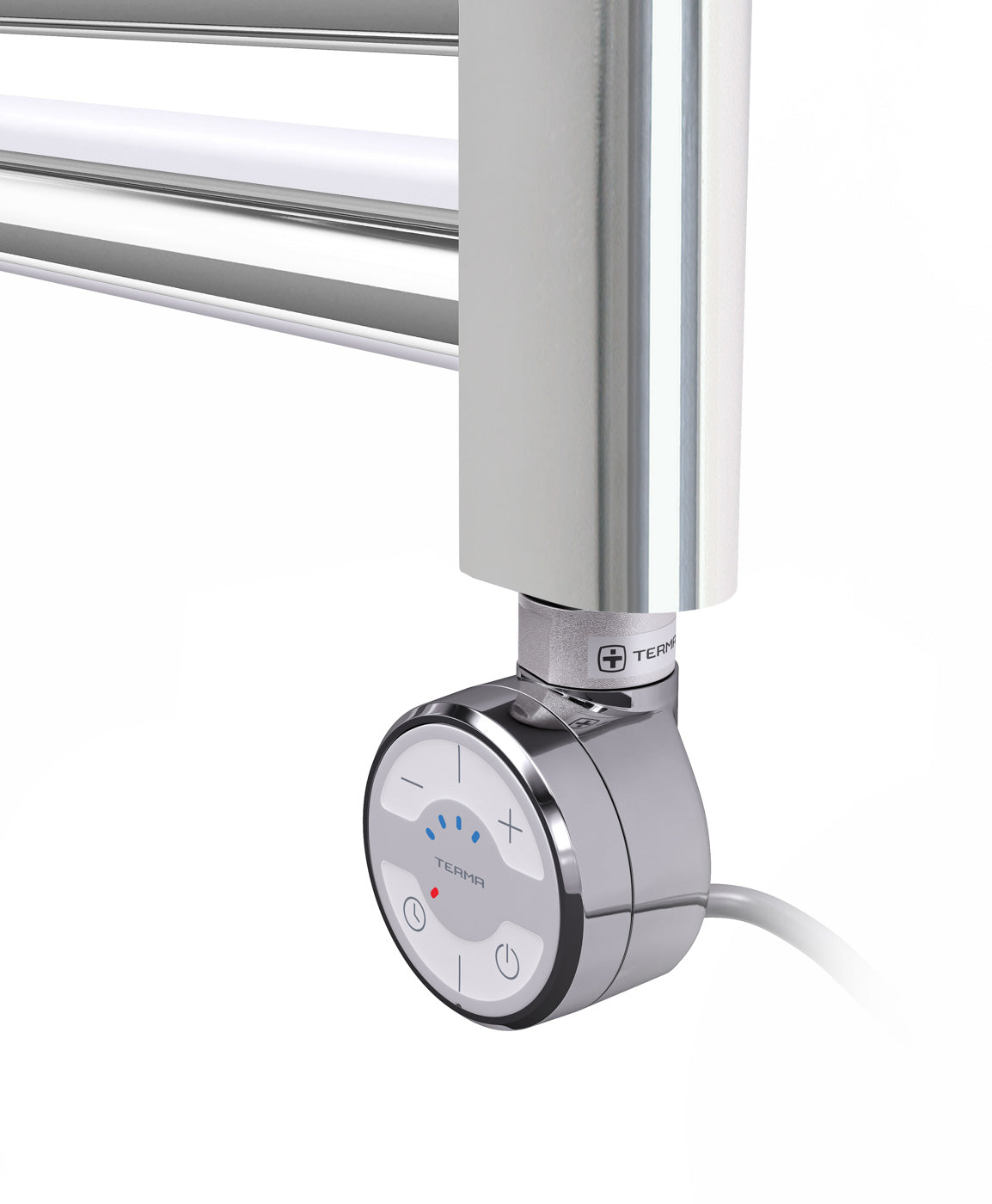

• Supplied with the Terma MOA heating element.
• Full operational control via the 4 buttons: Temp +/-, Drying Function, Power
• 5 heat settings (30°C to 60°C) regulating the internal radiator temperature, denoted by 5 LEDs
• 2-hour drying function for quick and efficient towel drying
• Compatible with an external timer, retaining settings when switched off
• No built-in timer
• If you wish to control the maximum surface temperature of the towel rail (for example, to safeguard children), this element can be programmed to limit output:
  • The 30°C to 60°C internal range is divided across 5 LED settings in 7.5°C increments.
  • LED 1 = 30°C, LED 2 = 37.5°C, LED 3 = 45°C, LED 4 = 52.5°C, LED 5 = 60°C.
  • You can cap the maximum temperature (e.g. LED 2 = 37.5°C) so it cannot be increased beyond that level.
  • Instructions for this are included in the printed manual.
  • Alternatively, consider contacting us to special order this model with the 43D, which is pre-set to 43°C for a safe low surface temperature without reprogramming.
• Looking for a heating element that automatically turns off (ideal for hotels or homes where you're conscious about energy use)?
  • We offer two alternatives designed for timed operation - both of which you can contact us to special order this model with either of the elements inside instead:
  • TDY – runs for 1, 2, or 3 hours, then switches off automatically, with adjustable temperature settings.
  • DRY – runs for 1–5 hours, auto shut-off, and pre-set to 45°C.

colour & finish

• Plated in chrome.
• Finished in a gloss, mirror texture.
• Note: Chrome insulates and keeps heat inside the towel rail — similar to wrapping foil around food in an oven — reducing heat output by approximately 20%. Chrome is also more expensive to produce than paint, which is why at the heat is on we offer very few chrome products.
• Additionally, we have created a thorough and detailed technical guide on paint finishes and colours, giving even more information and tips.
• Note: We only offer the LEO in chrome.

installation & features

• Element is pre fitted inside the radiator - located on the right hand side (E8 connection). If you would like the heating element on the left hand side (E1 connection), please contact us to place this as a special order. Consider where your electric supply will be so the wire has the shortest distance to travel.

• Quick and simple installation; no commissioning required.
• This electric towel rail is not supplied with a plug - so must be connected to a switched fused spur - or you can mount a plug (if this is not being installed in a bathroom). If you'd like a model pre fitted with a plug look at the Wi-Fi options as the VEO elements are pre fitted with a UK plug.


safety & compliance

• IPX5 rated – safe for use in bathrooms.
• Oil-filled for efficient, consistent heat distribution.
• Class 1 electrical appliance.
• UKCA approved.

guarantee, warranty and replacing the heating element

• 2-year manufacturer’s warranty (heating element).
• Usual lifespan of a heating element is 4 to 7 years dependent on use.
  • At end of life, you can simply replace the MOA heating element.
• 12-year manufacturer’s warranty (radiator).
