Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your electrician. Here we give you complete expert guidance for this specific electric towel rail — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.

heat output

• Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size electric radiator - in terms of the Watts / Kilowatts heat output it gives.

design & material

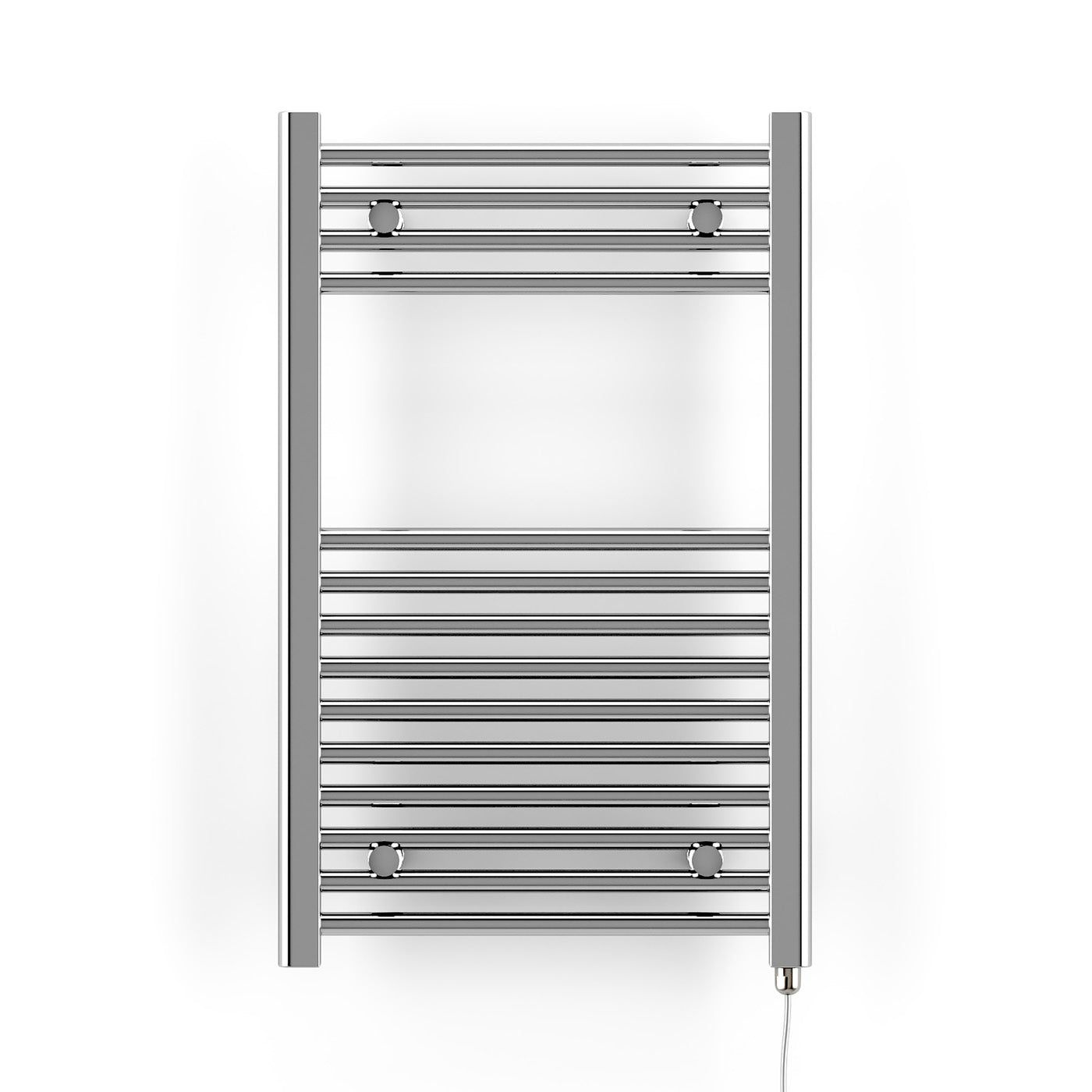

• LEO E is a standard chrome ladder rail widely available on the market, but the LEO E range is offered as electric with a choice of 5 different heating element options, allowing you to tailor how it works to suit your needs.
• Most chrome electric ladder rails like this only come with one entry-level heating element, which is what sets the LEO apart.
• LEO E features 22mm diameter bars — be mindful of models with bar diameters less than 20mm, which restrict heat output due to reduced surface area and less heating medium (oil) inside.
• Made from low carbon mild steel.
• Additionally, we have created a thorough and detailed technical guide on electric towel rails, giving even more information and tips.

control & functionality

• The Terma SIM element has one fixed internal operating temperature of 65°C.
• The element thermostatically operates to maintain this temperature.
• No timer. Compatible with an external timer.
• No power button on the element itself. Operable from the switched fused spur.
• Can be used in conjunction with a temperature control plate to retrospectively control the temperature.

colour & finish

• Plated in chrome.
• Finished in a gloss, mirror texture.
• Note: Chrome insulates and keeps heat inside the towel rail — similar to wrapping foil around food in an oven — reducing heat output by approximately 20%. Chrome is also more expensive to produce than paint, which is why at the heat is on we offer very few chrome products.
• Additionally, we have created a thorough and detailed technical guide on paint finishes and colours, giving even more information and tips.
• Note: We only offer LEO in chrome.

installation & features

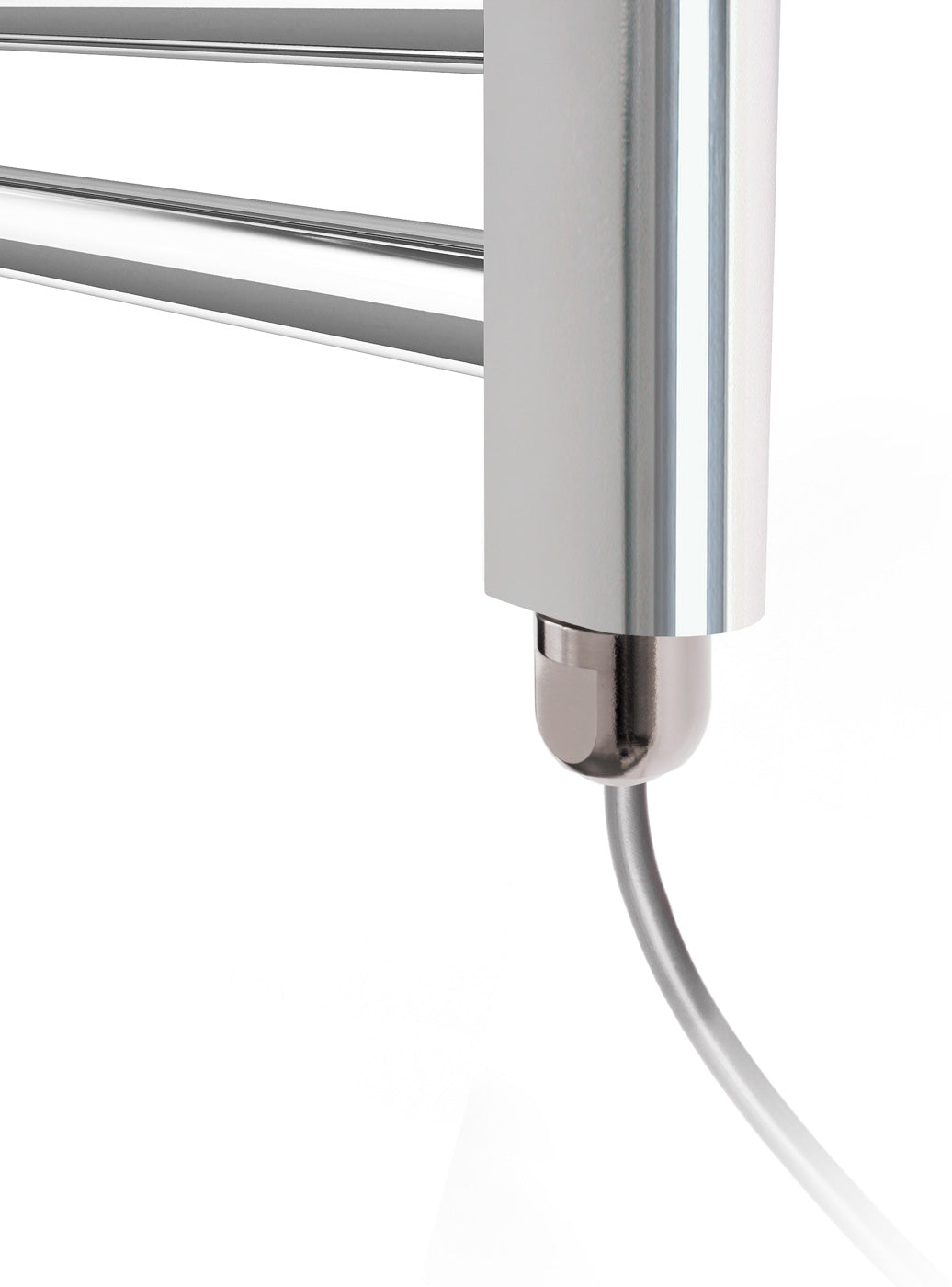

• Element is pre fitted inside the electric towel rail and located on the right-hand side (E8 connection). If you would like the heating element on the left-hand side, you can reverse the rail as it is identical on both sides.
• Supplied with a 1.5m cable.
• Quick and simple installation — no commissioning required.
• This electric towel rail is not supplied with a plug and must be connected to a switched fused spur (or a plug if not installed in a bathroom).

safety & compliance

• IPX5 rated — safe for use in bathrooms.
• Oil-filled for efficient, consistent heat distribution.
• Class 1 electrical appliance.
• UKCA approved.

guarantee, warranty and replacing heating element

• 2-year manufacturer’s warranty (heating element).
• Usual lifespan of a heating element is 4 to 7 years, dependent on use.
  • At end of life, the SIM heating element can be replaced easily by purchasing a new unit and swapping it out.
• 12-year manufacturer’s warranty (radiator).
