Here at the heat is on, we put the knowledge of what you need directly in your hands as the homeowner, so you needn’t ask or wait for information from your electrician. Here we give you complete expert guidance for this specific electric towel rail — including details of any additional parts required — so you can ensure a smooth and successful installation when your tradesman arrives.
heat output
- Firstly, if you haven't already done so - use our heat calculator to work out your specific requirements for your room to ensure you are looking at the right size electric radiator - in terms of the Watts / Kilowatts heat output it gives.
design & material

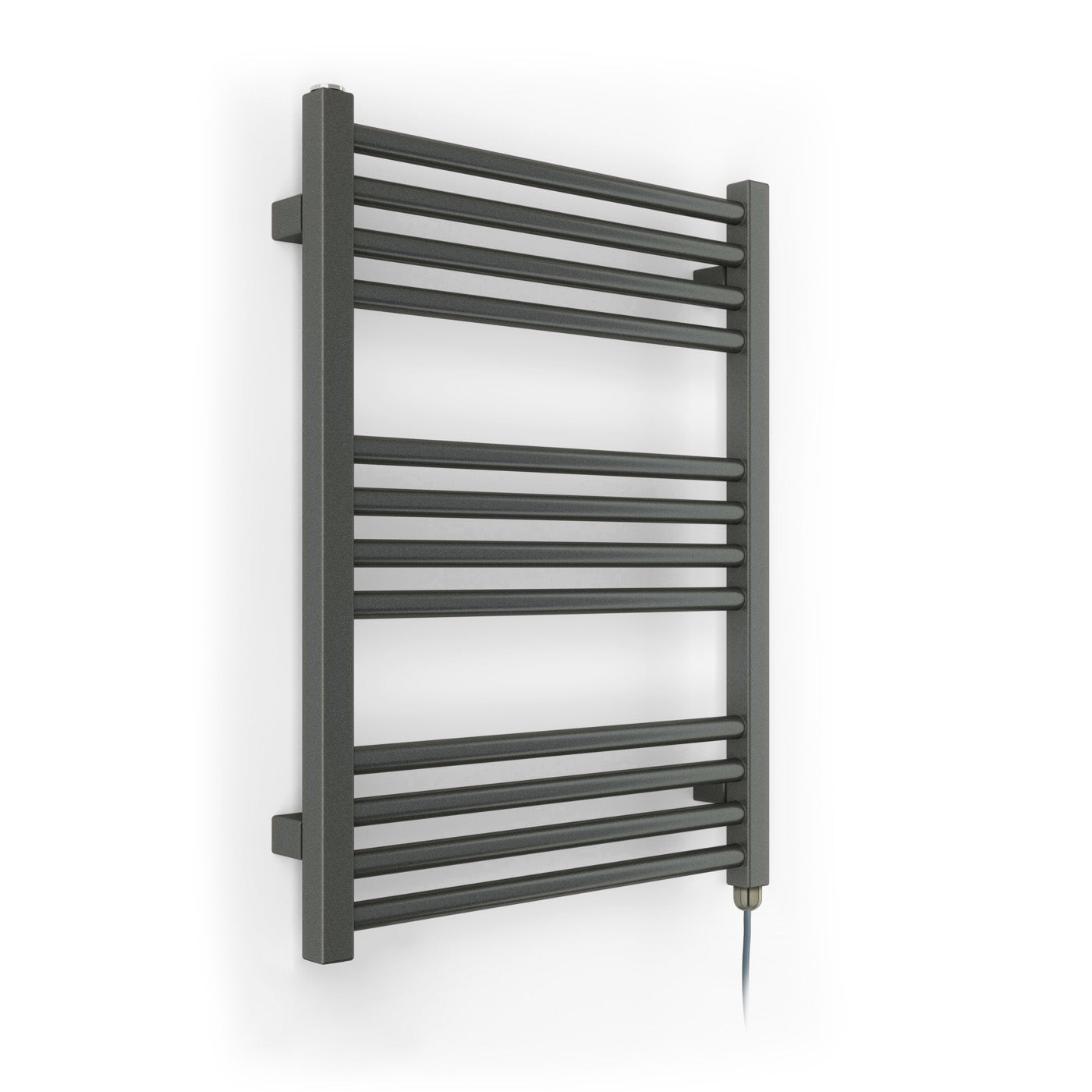

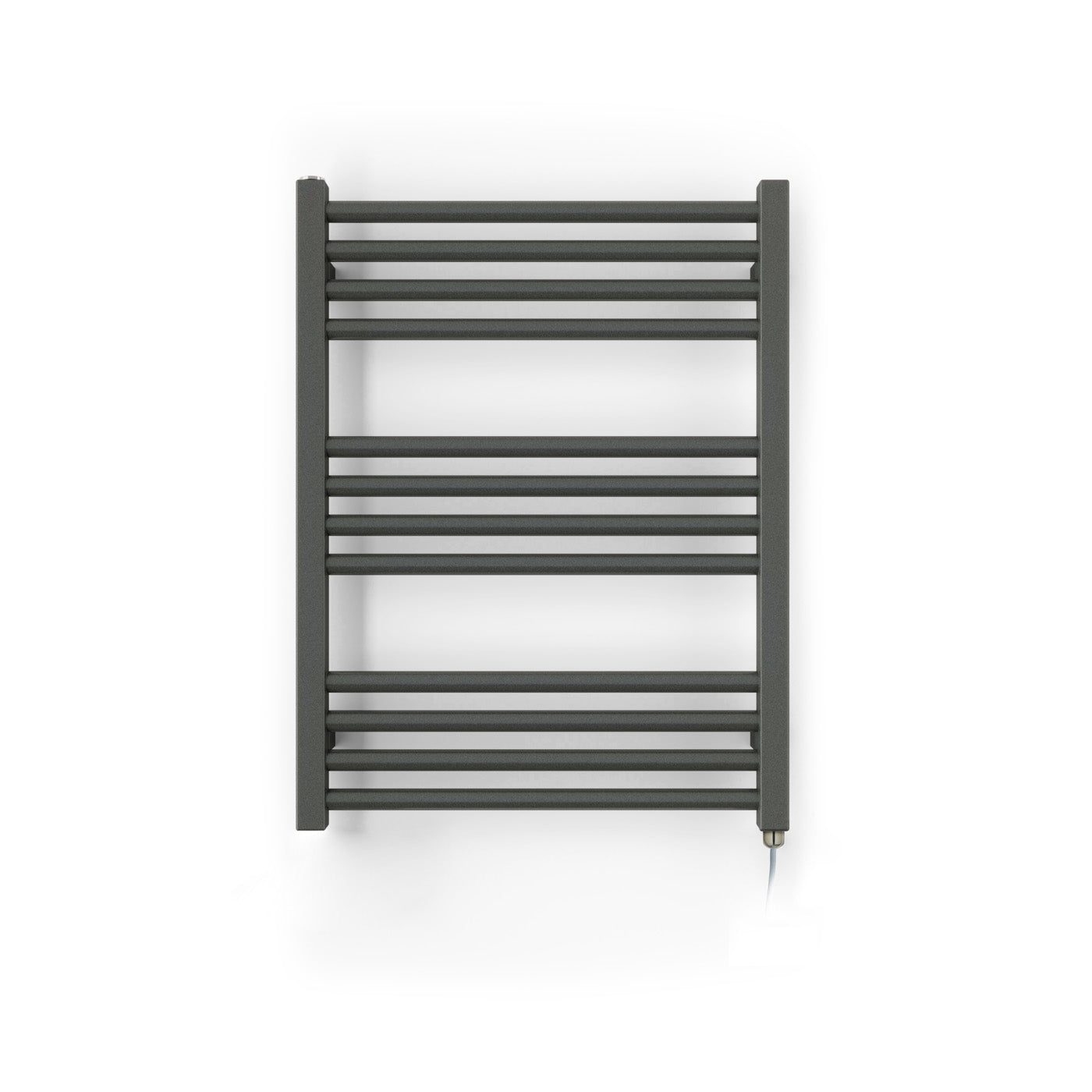

- FIONA E combines geometric shapes with an elegant twist, pairing square uprights with grouped round bars.
- A refined upgrade from standard ladder rails, offering a more distinctive and premium design.

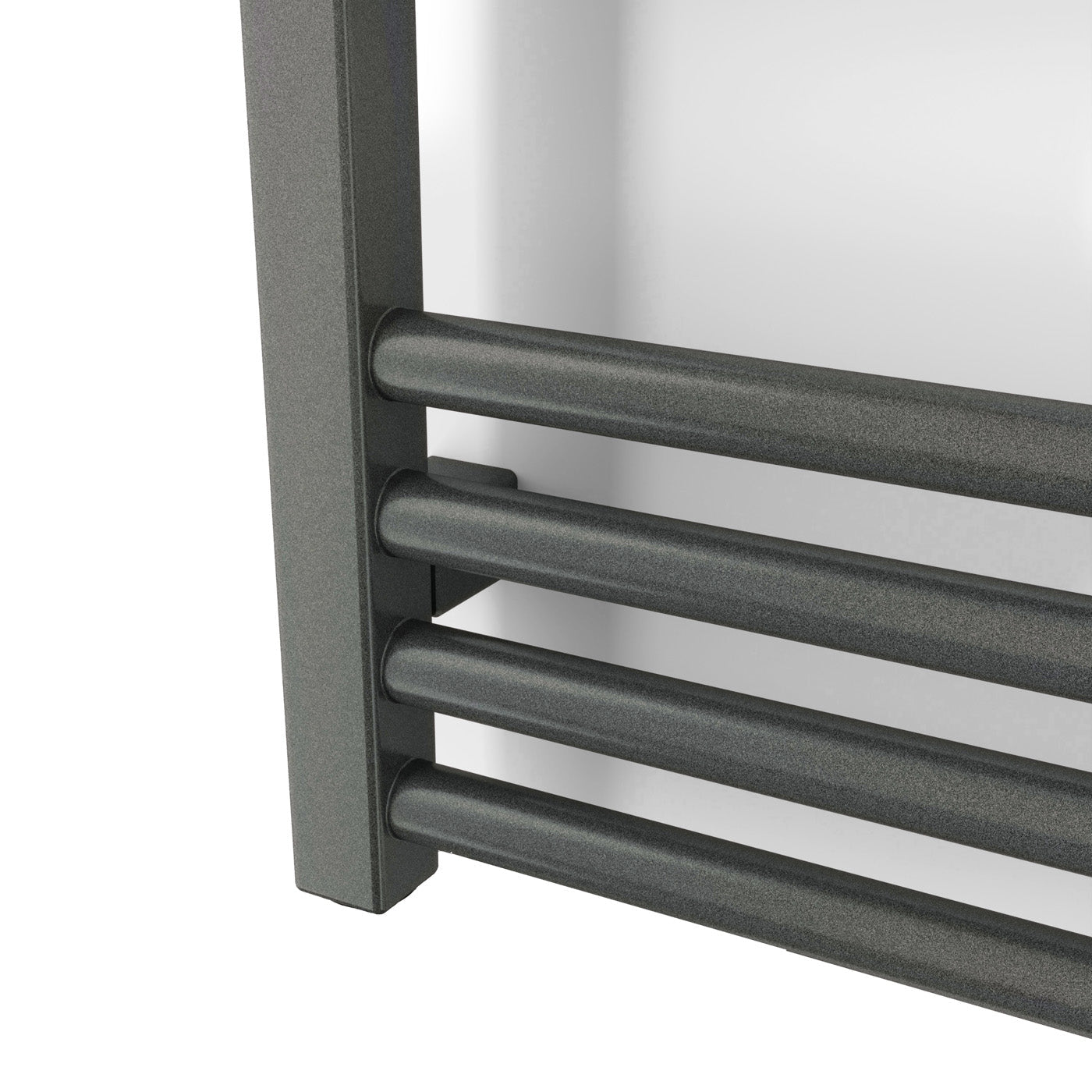

- Features grouped horizontal bars in sets of four, with purposeful spacing between each set for easy towel placement.
- Square-profile uprights provide structural clarity and a clean, modern aesthetic.

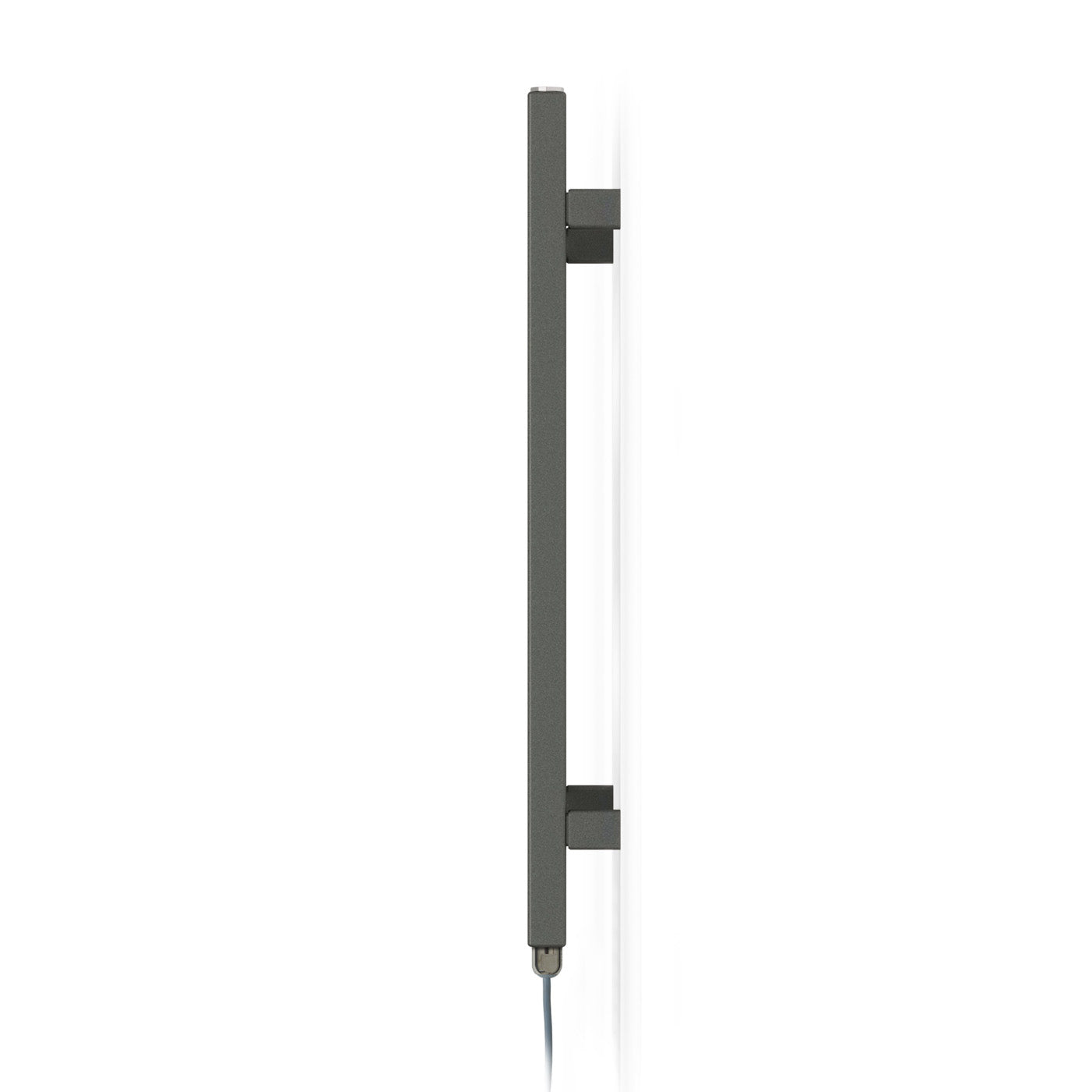

- Rear-mounted brackets maintain an unobtrusive look and maximise full-width hanging space.
- Designed to a higher specification, ensuring enhanced functionality and an elevated finish.
- Made from low carbon mild steel.
- Additionally, we have created a thorough and detailed technical guide on electric towel rails, giving even more information and tips.
full range of sizes available
- In addition to the sizes we are displaying here on the heat is on - you can view the full range of 54 different sizes of FIONA E here on the Terma website.
- We can process a special order for any size you wish to purchase if that size is not shown on our website.
control & functionality
- The Terma SIM Element has one fixed internal operating temperature of 65°C.
- The element operates thermostatically to maintain this temperature.
- No timer. Compatible with an external timer.
- No power button on the element itself. Operated from the switched fused spur.
- Can be used in conjunction with a temperature control plate to retrospectively control the element temperature.
colour & finish

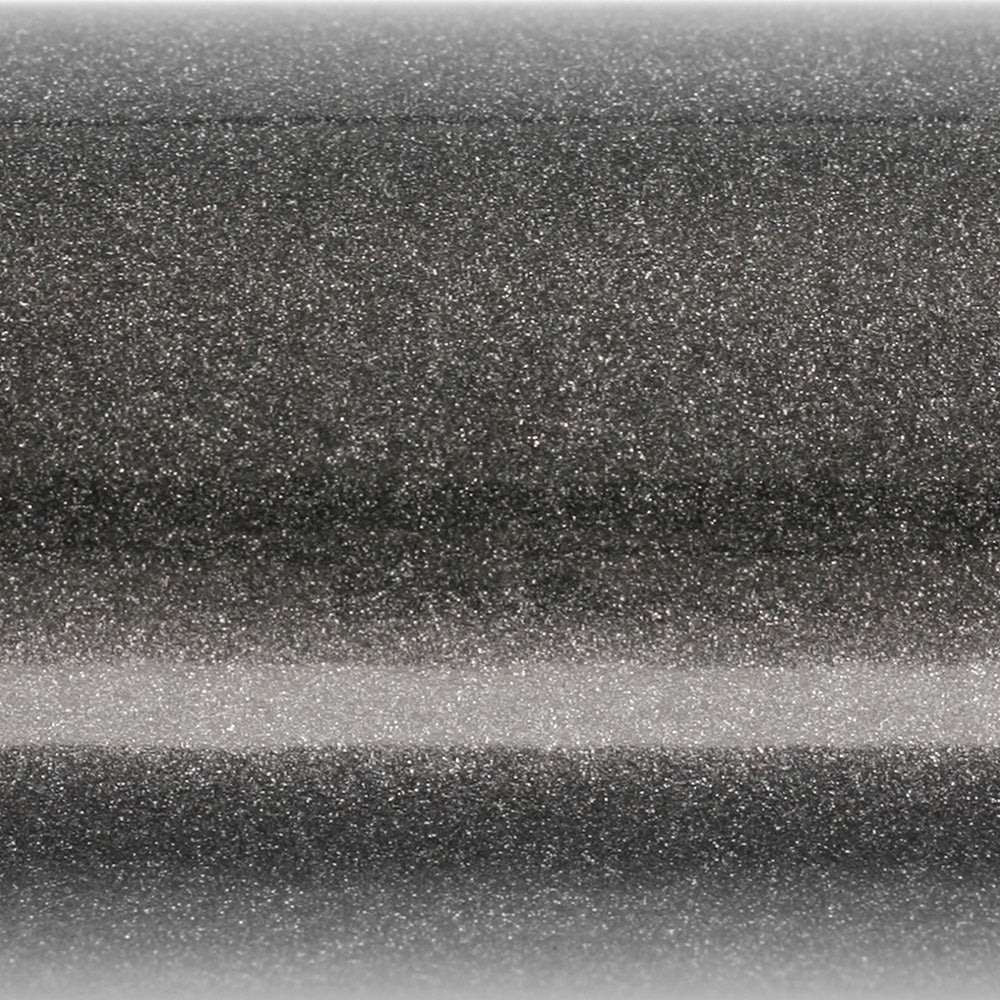

- Plated in Sparkling Grey.
- Finished in a silk, smooth texture.
- This is a standard powder paint.
- Additionally, we have created a thorough and detailed technical guide on paint finishes and colours giving even more information and tips.
- Don't see the model listed in the exact colour you are looking for - you can order almost any radiator in any bespoke colour - click to view our PDFs showcasing the full colour palettes on offer.
installation & features
- Element is pre-fitted inside the electric towel rail - located on the right hand side (E8 connection). If you would like the heating element on the left hand side (E1 connection), please contact us to place this as a special order. Consider where your electric supply will be so the wire has the shortest distance to travel.
- Supplied with 1.5m cable.
- Quick and simple installation; no commissioning required.
- This electric towel rail is not supplied with a plug and must be connected to a switched fused spur, or a plug can be fitted if not being installed in a bathroom. If you would like a model pre-fitted with a plug, consider the Wi-Fi options, as VEO elements are supplied with a UK plug.
safety & compliance
- IPX5 rated – safe for use in bathrooms.
- Oil-filled for efficient, consistent heat distribution.
- Class 1 electrical appliance.
- UKCA approved.
guarantee, warranty and replacing heating element
- 2-year manufacturer’s warranty (heating element).
- Usual lifespan of a heating element is 4 to 7 years dependent on use.
- At end of life, if you wish to replace a SIM heating element, you can simply purchase a new heating element and swap it out.
- 12-year manufacturer’s warranty (radiator).
